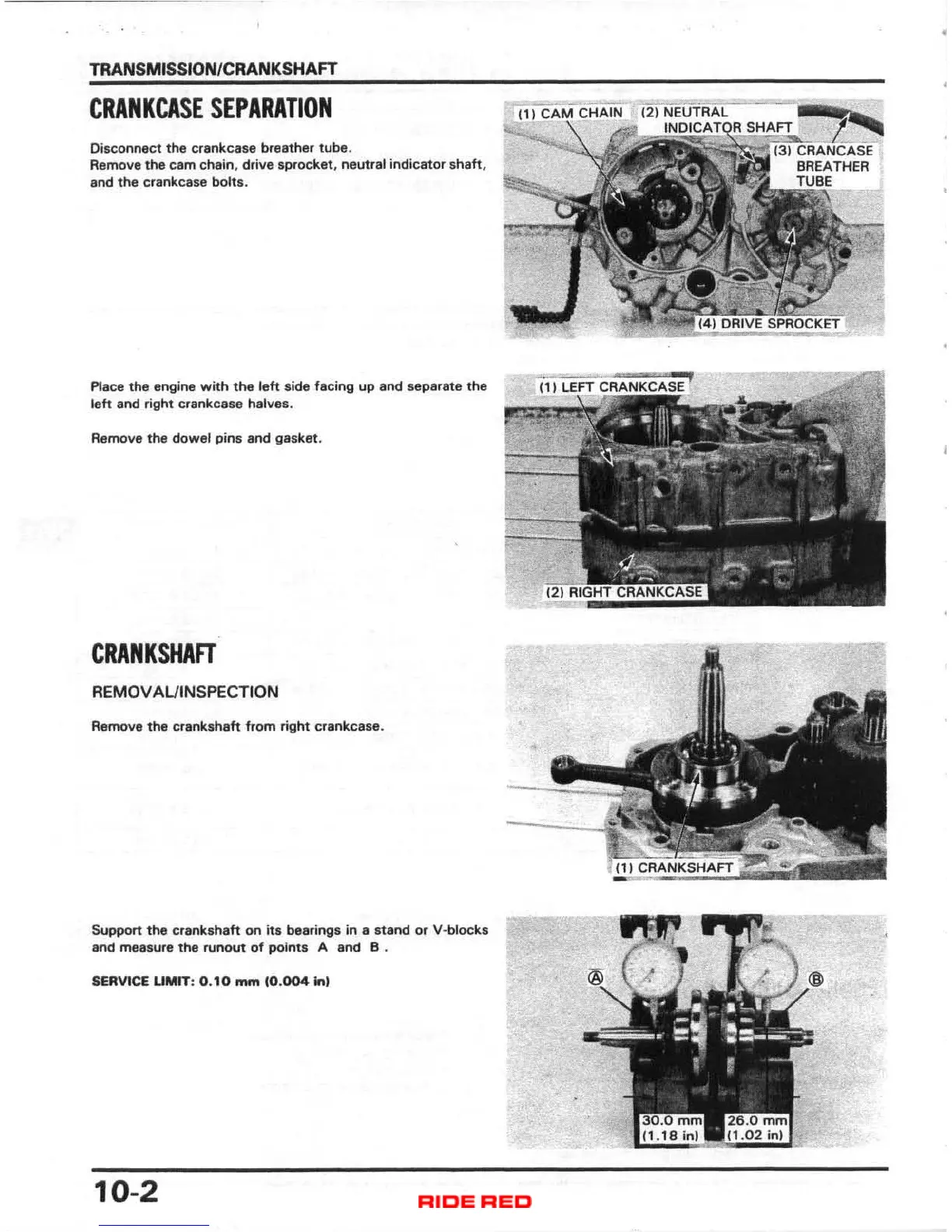

TRANSMISSION/CRANKSHAFT
CRANKCASE
SEPARATION
Disconnect
the
crankcase breather
tube
.
Remove
the
cam
chain, drive
sprocket
, neutral indicator
shaft
,
and
the
crankcase
bolts
.
Place
the
engine
with
the
left
side
facing
up
and
ssparate
the
~ft
and
right
crankcase halves.
Aemove the
dowel
pins
and
gasket.
CRANKSHAFT
REMOVALJINSPECTION
Remove
the
crankshaft
from
right
crankcase.
Support
the
crankshaft
on
its
bearings in a stand or V-blocks
lind
measure
the
runout
of
points
A and B .
SERVICE
UMrr
: 0.
10
mm
10.004
inl
10-2
j
,
