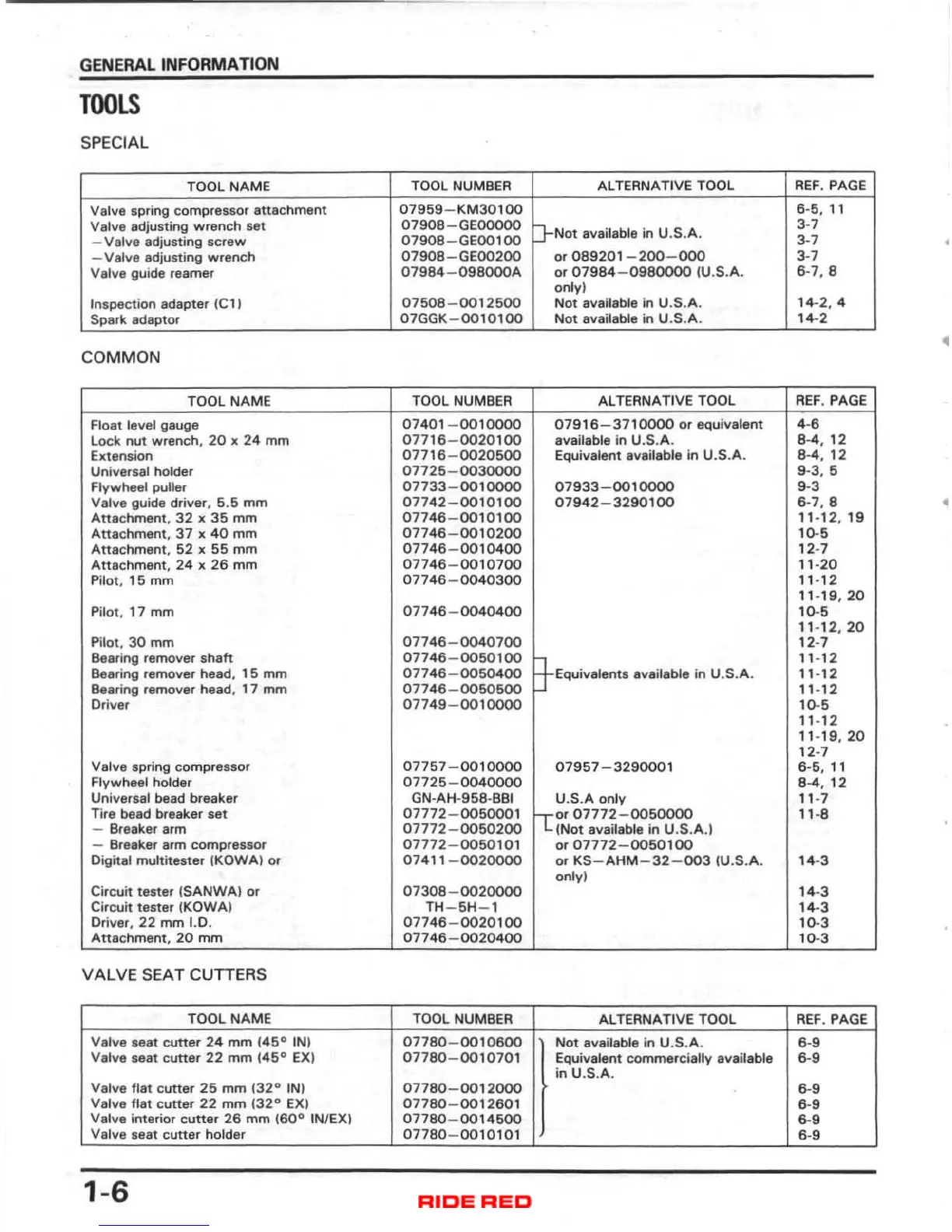

GENERAL INFORMATION
TOOLS
SPECIAL
TOOL NAME TOOL NUMBER
AL TEANATI VE TOOL REF . PAGE
Valve spring compressor attachment
07959 - KM30100 6·5 , 11
Valve adjusting wrench set
07908-GEOOOOO
P-Not available in U.S.A.
3 -7
-Va lve adjusting screw
07908 - GEOO100 3-7
•
-Va lve adjusting wrench
0790B- GEOO200
or 089201 - 200 - 000
3-7
Valve guide reamer
01984-0geOOOA or 07984 - 0980000 IU .S.A.
6-7, 8
only)
Inspection adapter Ie 1)
07508 - 0012500 Not available in U.S.A. 14-2 . 4
Spark adaptor
07GGK-0010100 Not available in U .S. A. 14-2
•
COMMON
TOOL NAME TOOL NUMBER
Al TERNA TI VE TOOL REF . PAGE
Float level gauge
07401 -00 10000
07916 - 3710000 or equivalent
4-6
Lock nut wrench, 20 x 24 mm 07716 -002 0100 available in U.S.A.
8-4 , 12
Extension
07716-0020500 Equivalent available in U.S.A .
8-4, 12
Universal holder
07725-0030000 9-3. 5
Flywheel puller
07733-00 10000
07933 - 0010000 9-3
Valve guide driver. 5.5 mm
07742-0010100 07942 - 3290100 6-7.8
•
Attachment. 32 x 35 mm 07746 -00 10100 11 - 12 , 19
Atta chment, 37 x 40 mm 07746 - 0010200 10-.
Attachment, 52 x 55 mm 07746 - 0010400 12 -7
Attachmant,
24 x 26 mm 07746 - 0010700 11 - 20
Pilot, 15 mm
07746 - 0040300
1 ' -1 2
1' - 19 , 20
Pilot, 17 mm
07746-0040400
10-.
11-12 , 20
Pilot. 30 mm
07746 - 0040700
12 -7
Bearing remover
shaft
07746-0050100
~EqUiValents available in U. S.A.
11 - 12
Bearing remover head, 15 mm 07746 - 0050400 11 - 12
Bearing ramover head, 17 mm 07746 - 0050500
11 - 12
Driver 07749-0010000 10-.
11 - 12
11 - 19 , 20
12 -7
Valve spring co mpr essor 07757 -001 0000
07957 - 3290001 6-6 , 11
Flywheel holder 07725-0040000
8-4 , 12
Universal bead breaker GN -AH- 958 · BBI
U.S.A only 11 -7
Tire bead breaker set 07772-0050001
lc~r07772 - oo50000
11 -8
- Breaker arm
07772 - 0050200 (Not available in U.S.A.)
- Breaker arm compressor 07772 -0050 101 or 07772 - 0050100
Digital multitester (KOWAl Of
0741' -0020000
or KS-AHM-32 - oo3 (U.S.A. 14 -3
only)
Circuit
tester (SANWAI or 07308-0020000
14-3
Circuit tester (KOWA) TH - 5H- l
14-3
Driver, 22 mm 1.0. 07746 -00 20100
10-3
Attachment. 20 mm 07746 -00 20400 10 -3
VALVE SEAT CUTTERS
TOOL NAME TOOL NUMBER
ALTERNATIVE
TOOL REF . PAGE
Valve seat cutter 24 mm 145
0
IN) 07780-0010600
Not available in U.S.A. 6-9
Valve seat cutter 22 mm 145
0
EX) 07780 - 0010701
Equivalent commercially available 6-9
in U.S.A.
Valve flat cutte r 25 mm 132
0
IN) 07780-0012000
6-9
Valve flat cutter 22 mm (32° EX)
07780 - 0012601
6-9
Valve interior cutter 26 mm (60
0
IN/EX)
07780 - 0014500
6-9
Valva seat cuttar holder
07780 - 0010101
6-9
1-6
