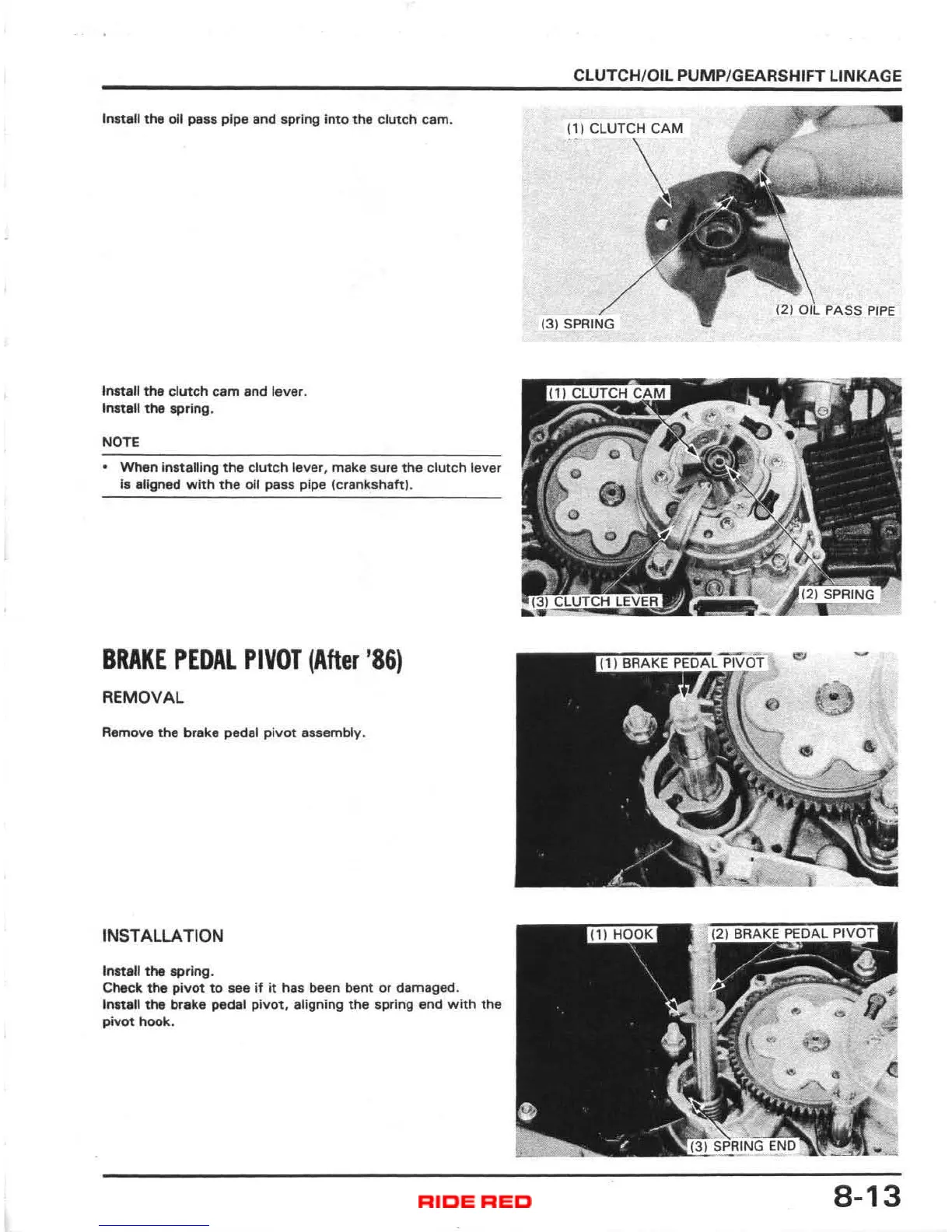

Install the oil pass pipe and spring into the clutch cam .
Install the clutch cam and lever .
Insten the spring.
NOTE
• When installing the clutch lever, make sure the clutch lever
is aligned with the oil pass pipe (crankshaft).
BRAKE PEDAL PIVOT (After '86)
REMOVAL
Remove the brake pedal pivot assembly.
INSTALLATION
Install the spring.
Check the pivot to see if it has been bent or damaged.
Install the breke pedal pivot, aligning the spring end with the
pivot hook .
CLUTCH/OIL PUMP/GEARSHIFT LINKAGE
t 1) CLUTCH CAM
(3) SPRING
8-13
