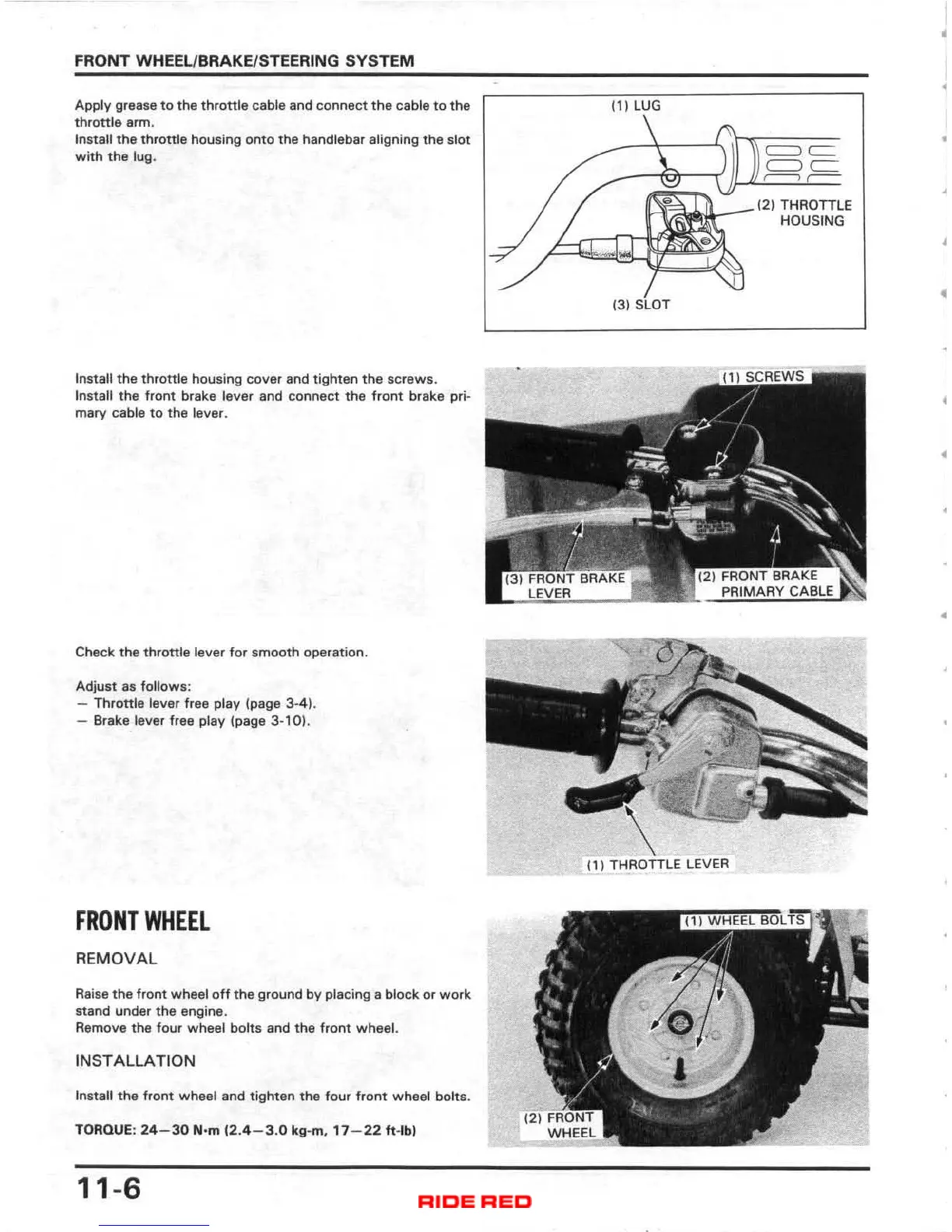

FRONT WHEEUBRAKE/STEERING SYSTEM
Apply grease to the throttle cable and connect the cable to the
throttle arm .
Install the throttle housing onto the handlebar aligning the slot
with the lug.
Install the throttle housing cover and tighten the screws.
Install the front brake lever and connect the front brake pri·
mary cable to the lever.
Check
the throttle lever for smooth operation.
Adjust as follows :
- Throttle lever free play (page 3·4).
- Brake lever free play (page 3-10) .
FRONT WHEEL
REMOVAL
Raise the front wheel off the ground by placing a block or work
stand under the engine.
Remove
the four wheel bolts and the front wheel .
INSTALLATION
Install the front wheel and tighten the four front wheel bolts .
TORQUE: 24-30 N·m (2.4-3.0 kg-m. 17-22 ft ·lb)
11-6
(1) lUG
(31 SLOT
(1 ) THROTTLE LEVER
==
==
~,--
121 THROTTLE
HOUSING
•
•
