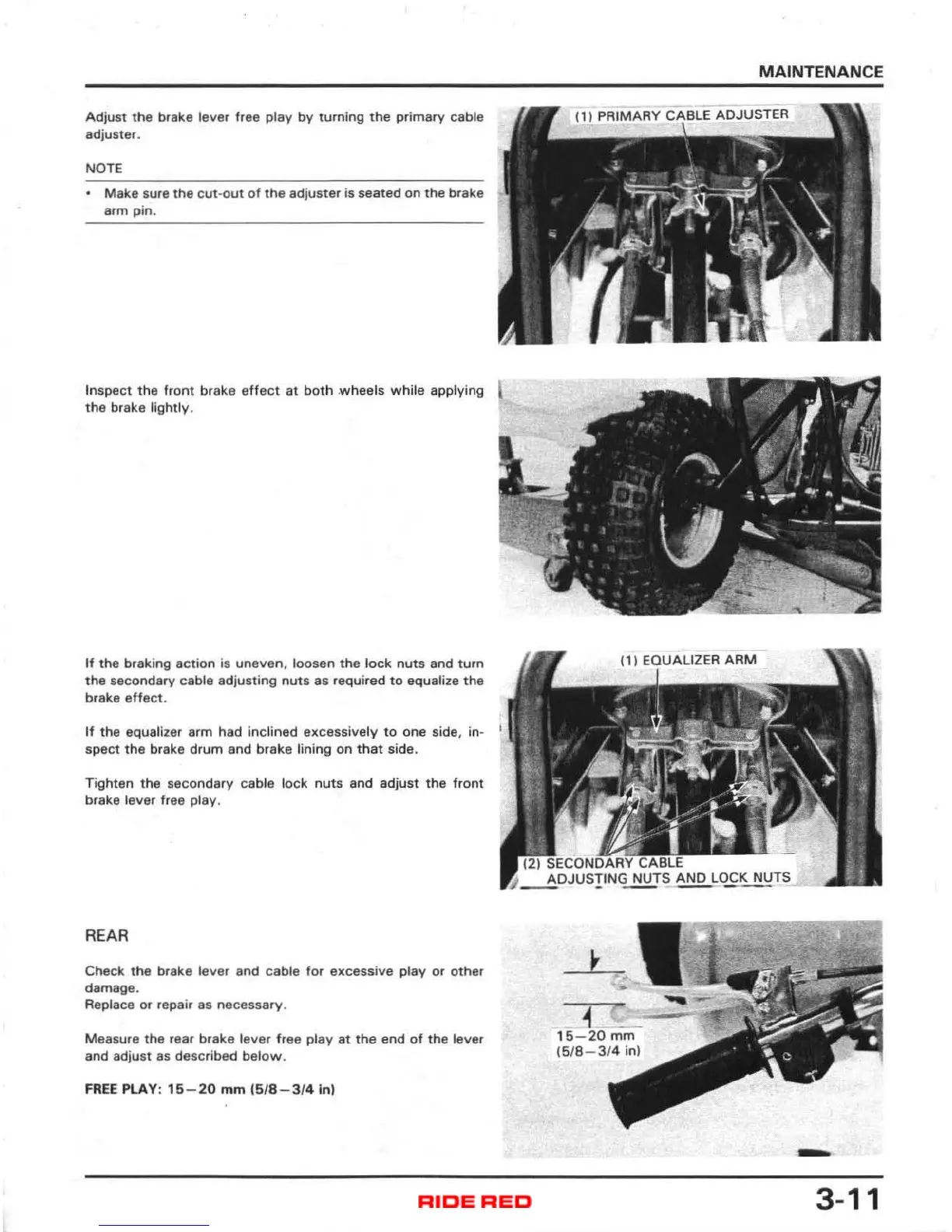

Adjust the brake lever free plav by turning the primary cable
adjuster.
NOTE
Make sure the cut - out of the adjuster is seated on the brake
arm pin.
Inspect the front brake effect at both . whee ls whi le applying
the brake lightly .
If the braking action is uneven , loosen the lock nuts and turn
the secondary cable adjusting nuts 8S required to equalize the
brake effect .
If the equalizer arm had inclined excessively to one side,
spect the brake drum and brake lining on that side .
Tighten the secondary cable lock nuts and adjust the front
brake lever free play.
REAR
Check the brake lever and cable for excessive play or other
damage.
Aeplace or repair as necessary.
Measure the rear brake lever free play at the end of the lever
and adjust 8S described below .
FREE PLAY : 15-20 mm 15/8-3/41nl
MAINTENANCE
-
3-11
