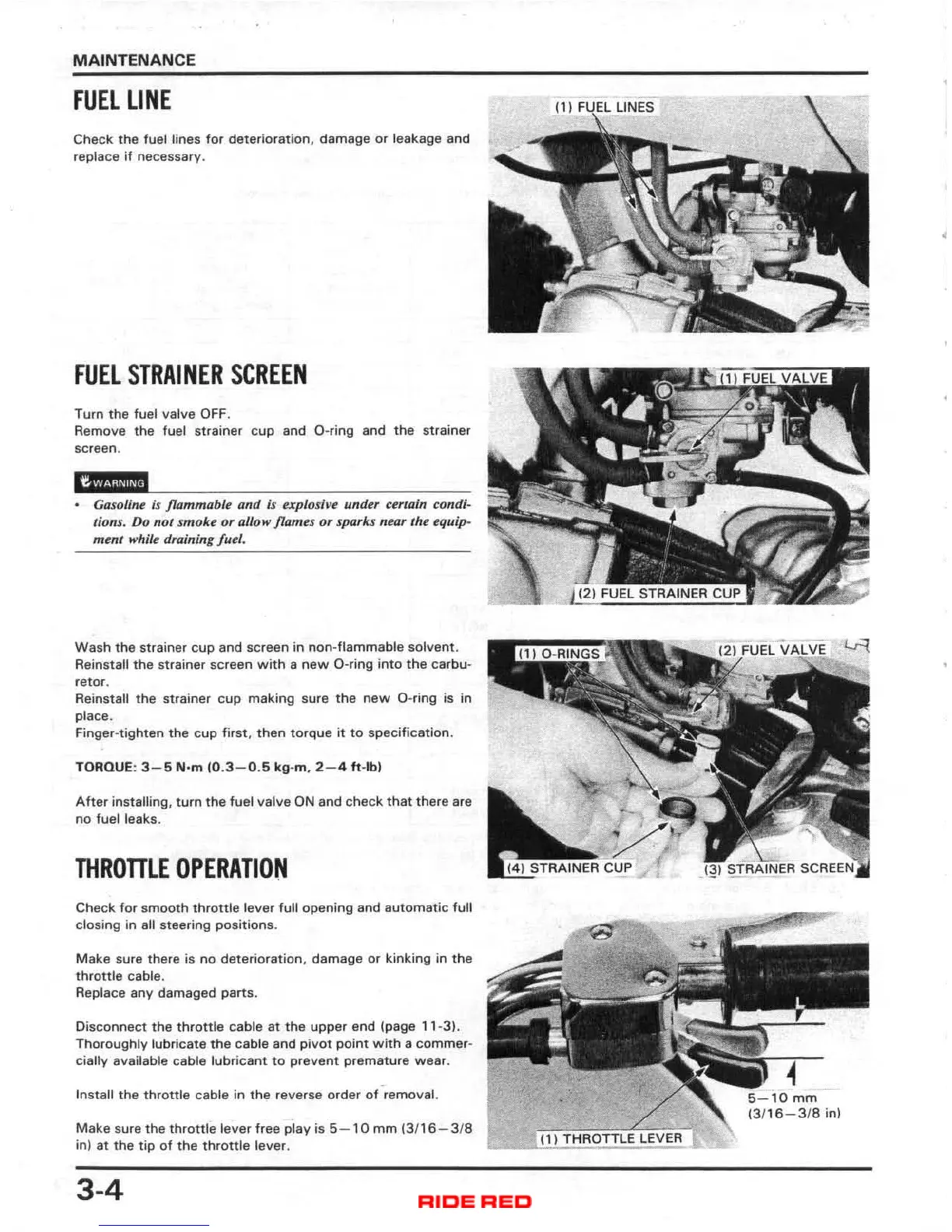

MAI NTENANCE
FUEL LINE
Check the fuel lines for deterioration, damage or leakage and
replace if necessary.
FUEL STRAINER SCREEN
Turn the fuel valve OFF.
Remove the fuel strainer cup and a ·ring and the strainer
screen.
Gasoline is flammable and is explosive under certain condi·
tions. Do not smoke or allow flames or SfNlrks near the equip-
mMt while draining fuel .
Wash the strainer cup and screen in non-f l ammab le solvent .
Reinstall the strainer screen with 8 new D-ring into the carbu-
retor .
Reinstalt the strainer cup making sure the new D-ring is in
place.
Finger- tighten the cup first, then torque it to specification.
TOR QUE: 3-5 N·m (0 .3- 0 .5 kg-m. 2- 4 fHb)
After installing, turn the fuel valve ON and check that there are
no fuel leaks.
THROTTLE OPERATION
Check for smooth throttle lever full opening and automatic fu ll
closing in aU steering positions .
Make sure there is no deterioration, damage or kinking in the
throttle cable.
Replace
any damaged parts.
Disconnect the throttle cable at the upper end (page 11· 31 .
Thoroughly lubricate the cable and pivot point with a commer -
cially available cable
lubricant to prevent premature wear.
Inslall the thrott le cable in the reverse order of removal.
Make sure the throttle lever free play is 5 - 10 mm 13 /16- 3/8
in) at the tip of the throttle lever.
3-4
•
