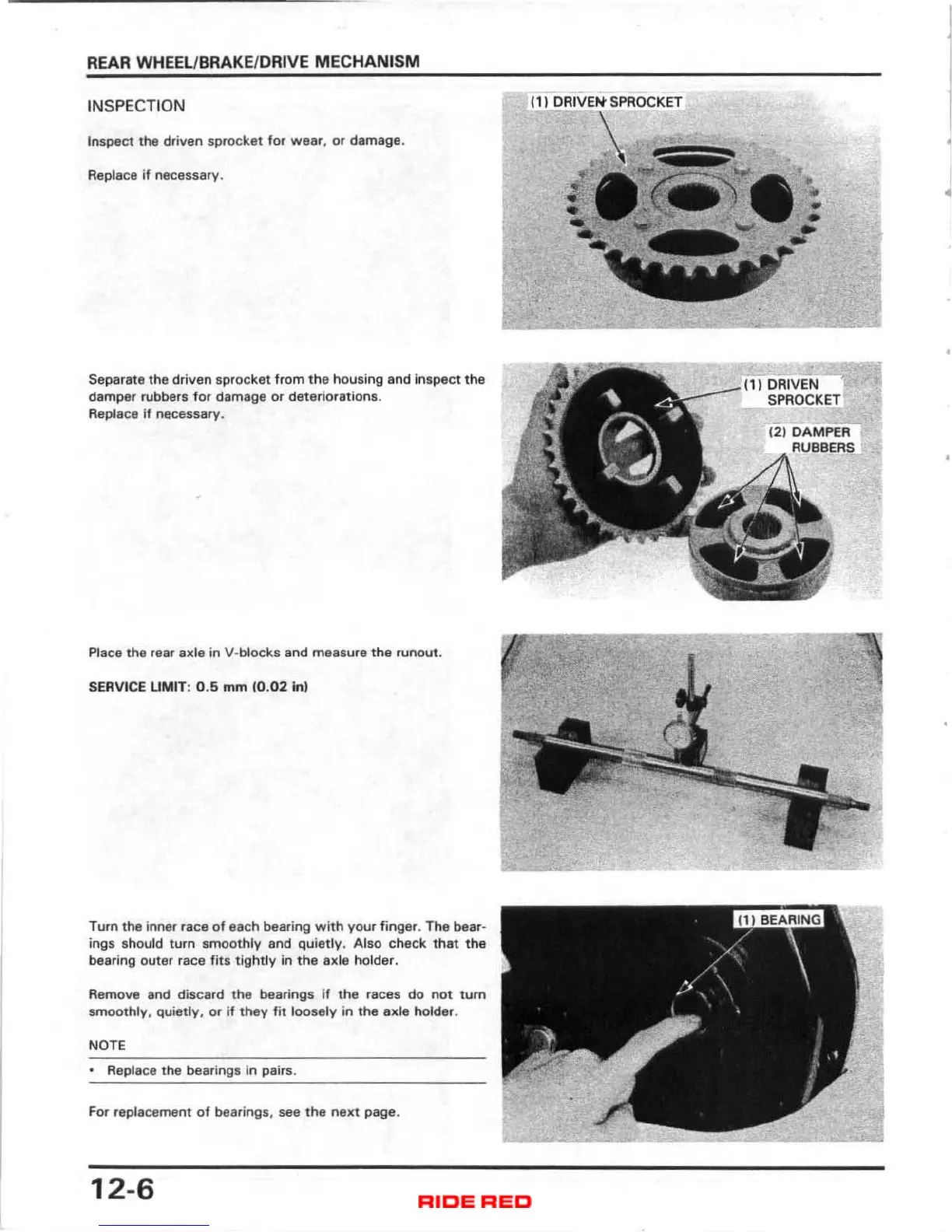

REAR WHEEL/BRAKE/DRIVE MECHANISM
INSPECTION
Inspect the driven sprocket for wear , or damage .
Repla ce jf necessary.
Separate the driven sprocket from the housing and inspect the
damper rubbers for damage or deteriorations.
Replace if necessary.
Place the rear 8xle in V-blocks and measure the runout.
SERVICE LIMIT: 0 .6 mm 10 . 02 In)
Turn the inner race of each bearing with your finger. The bear -
ings should turn smoothly end quietlV. Also check that the
bearing outer race fits t ig htly in the 8xle holder .
Remove and discard the bearings
jf the races do not turn
smoothly . quieti .,.. or if they fit loosely in the ax le holder.
NOTE
• Repl ace the bearings in pairs.
For re~acement of bearings, see the next page.
12-6
(11 DRI V EN
S PRO CKET
121 DAMPER
RUBBERS
•
•
