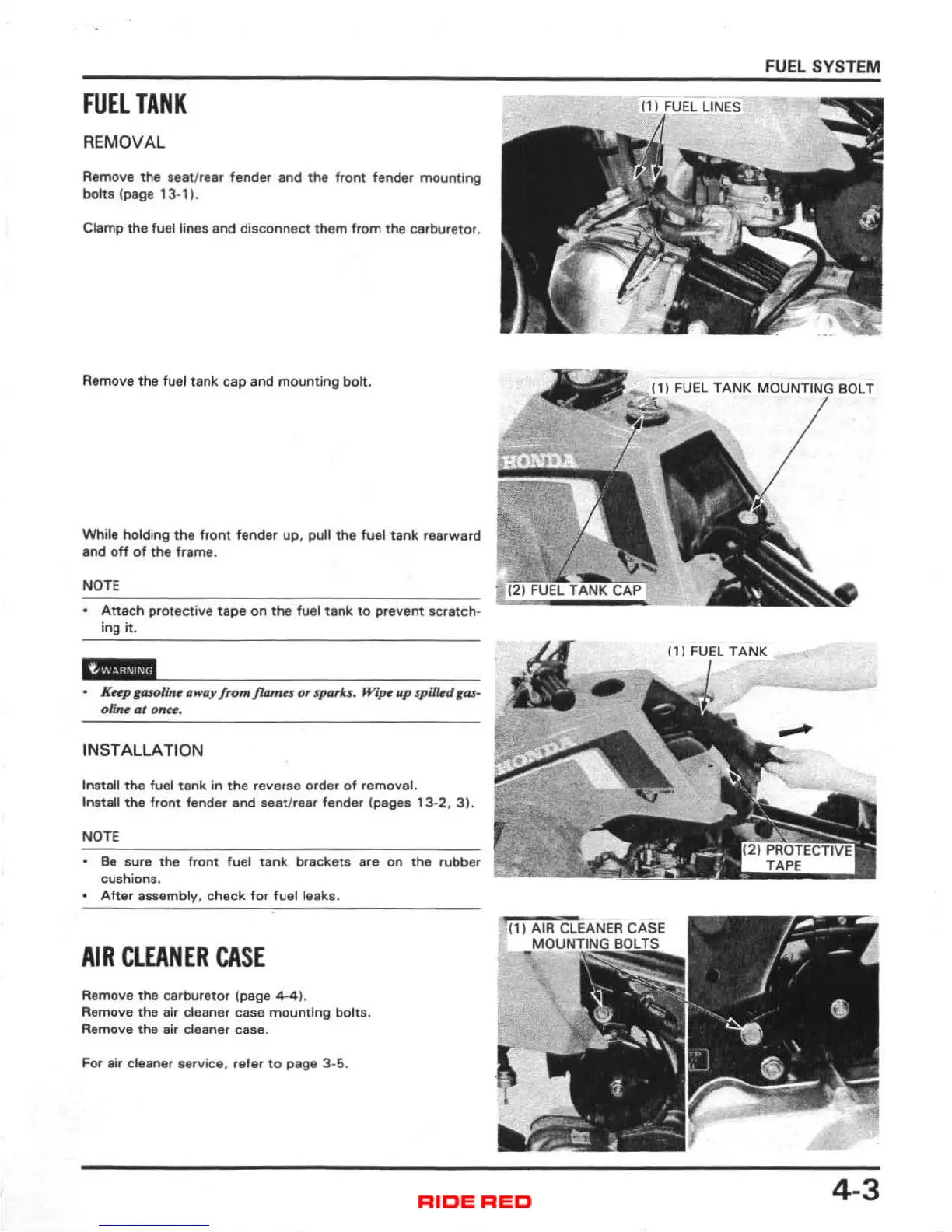

FUEL TANK
REMOVAL
Remove the seat/rear fender and the front fender mounting
bolts (page 13 - 11 .
Clamp the fuel tines and disconnect them from the carburetor.
Remove the fuel tank cap and mounting bolt.
While holding the front fender up, pull the fuel tank rearward
and off of the frame.
NOTE
Attach protective tape on the fuel tank to prevent sc ratch -
ing it.
KHp ,uDl/lle away 'rom jllunu or sparks. Wipe up spill~d flU-
oIine at once.
INSTALLATI ON
Install the fuel tank in the reverse order of removal.
Install the front fender and seat/reaT fender (pages 13 ·2, 3J.
NOTE
Be sure the front fuel tank brackets are on the rubber
cushions.
After assembly. check for fuel leaks.
AIR CLEANER CASE
Remove the carburetor (page 4-4 ),
Remove the air cleaner case mounting bolts.
Remove
the air cleaner case.
For air
cleaner service, refer to page 3·5.
FUEL SYSTEM
1) FUEL TANK MOUNTING BOLT
ICll AIR CLEANER CASE
~ ,MC'UN ~ I
(1) FUEL TANK
4-3
