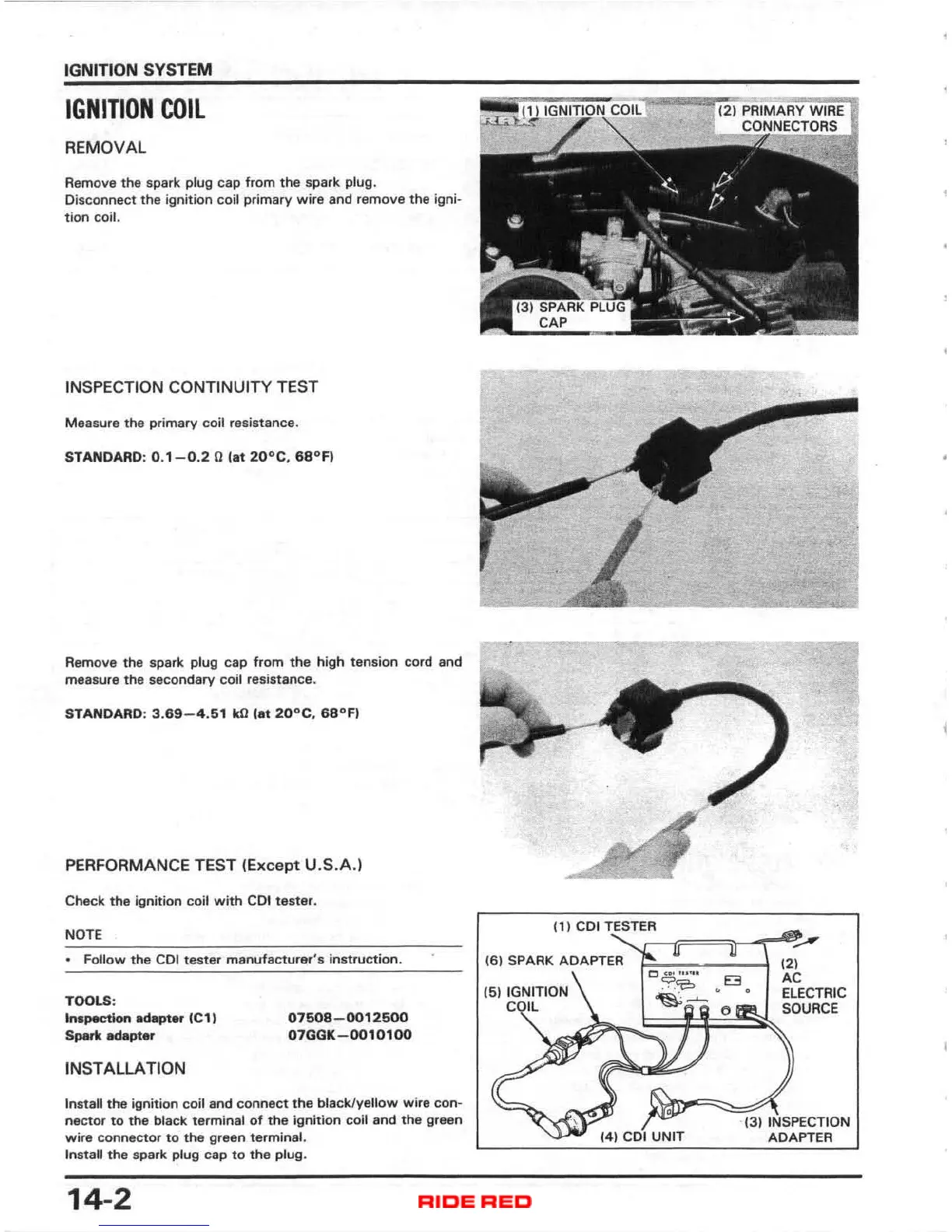

IGNITION SYSTEM
IGNITION COil
REMOVAL
Remove the spark plug cap from the spark plug.
Disconnect the ignition coil primary wire and remove the igni-
tion coil.
INSPECTION CONTINUITY TEST
Measure the primary coil resistance.
STANDARD: 0.1-0.2 0 lat 20
o
e. 6S0f)
Remove the spark plug cap from the high tension cord and
measure the secondary coil resistance.
STANDARD: 3.69-4.51 ItO lat 20°C, 6S
0
F)
PERFORMANCE TEST (Except U.S.A. I
Check the ignition coil with COl taster .
NOTE
• Follow the COl tester manufacturer's instruction.
TOOLS:
Inspection adapter (el)
Spatit adapter
INSTALLATION
07608-0012500
07GGK-0010100
InstaU the ignition coil and connect the black/yellow wire con-
nector to the black terminal of the ignition coil and the green
wire connector to the green terminal.
Install the spark plug cap to the plug.
14-2
(11 COl TESTER
,-"r===;r-....,~~
(61 SPARK ADAPTER
12J
AC
ELECTRIC
SOURCE
•
•
