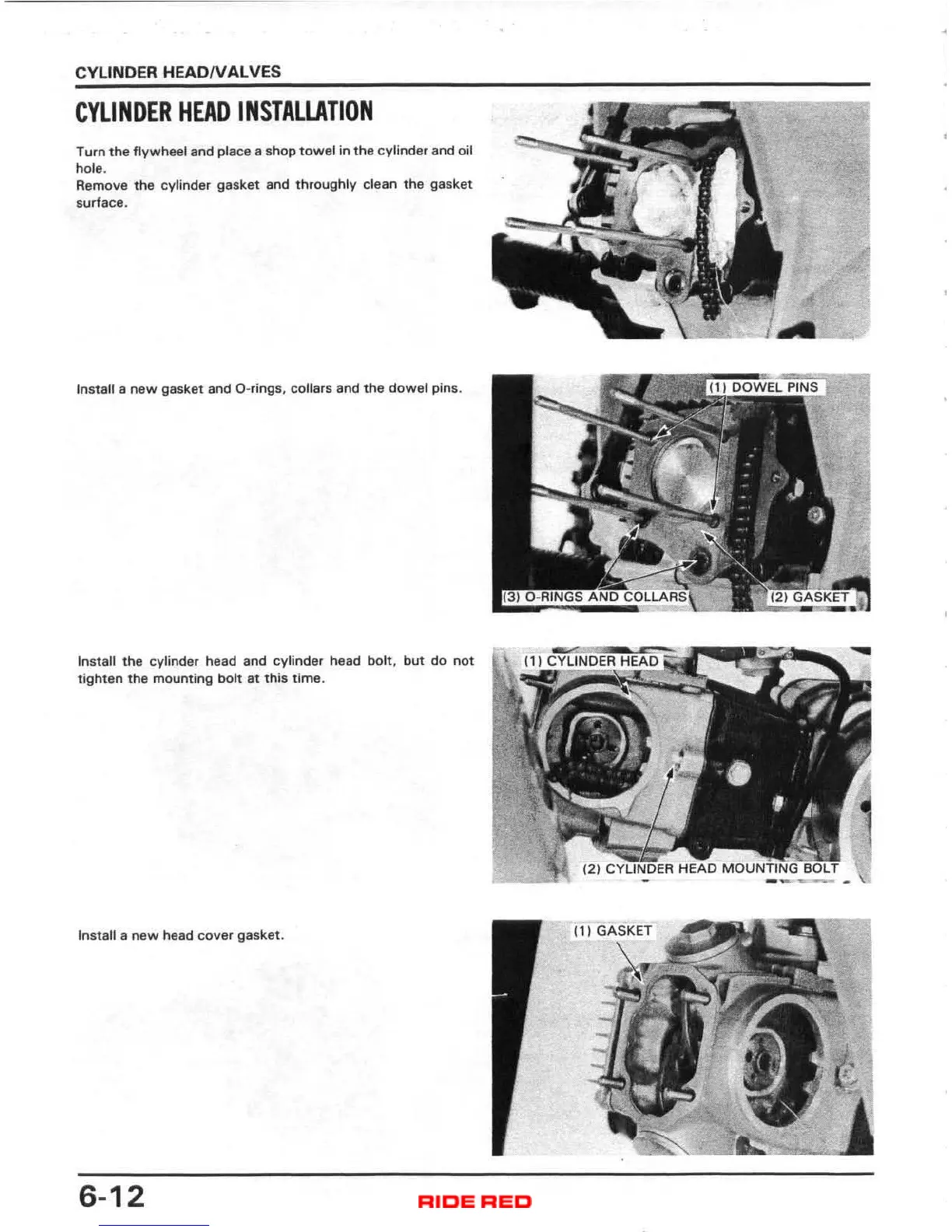

CYLINDER HE
AD
N ALVES
CYLINDER
HEAD
INSTALLATION
Turn
the
flywheel
and place 8 shop
towel
in the
cylinder
and oil
ho
le
.
Remove the cylinder
gasket
and
throughly
clean
the
gasket
surface.
Install 8
new
gasket and O·rings, collars and
the
dowel
pins.
Install
the
cylinder head and
cylinder
head
bolt,
but
do
not
tighten
the
mounting
bolt
at
this
time
.
Install a
new
head
cover
gasket.
6-12
