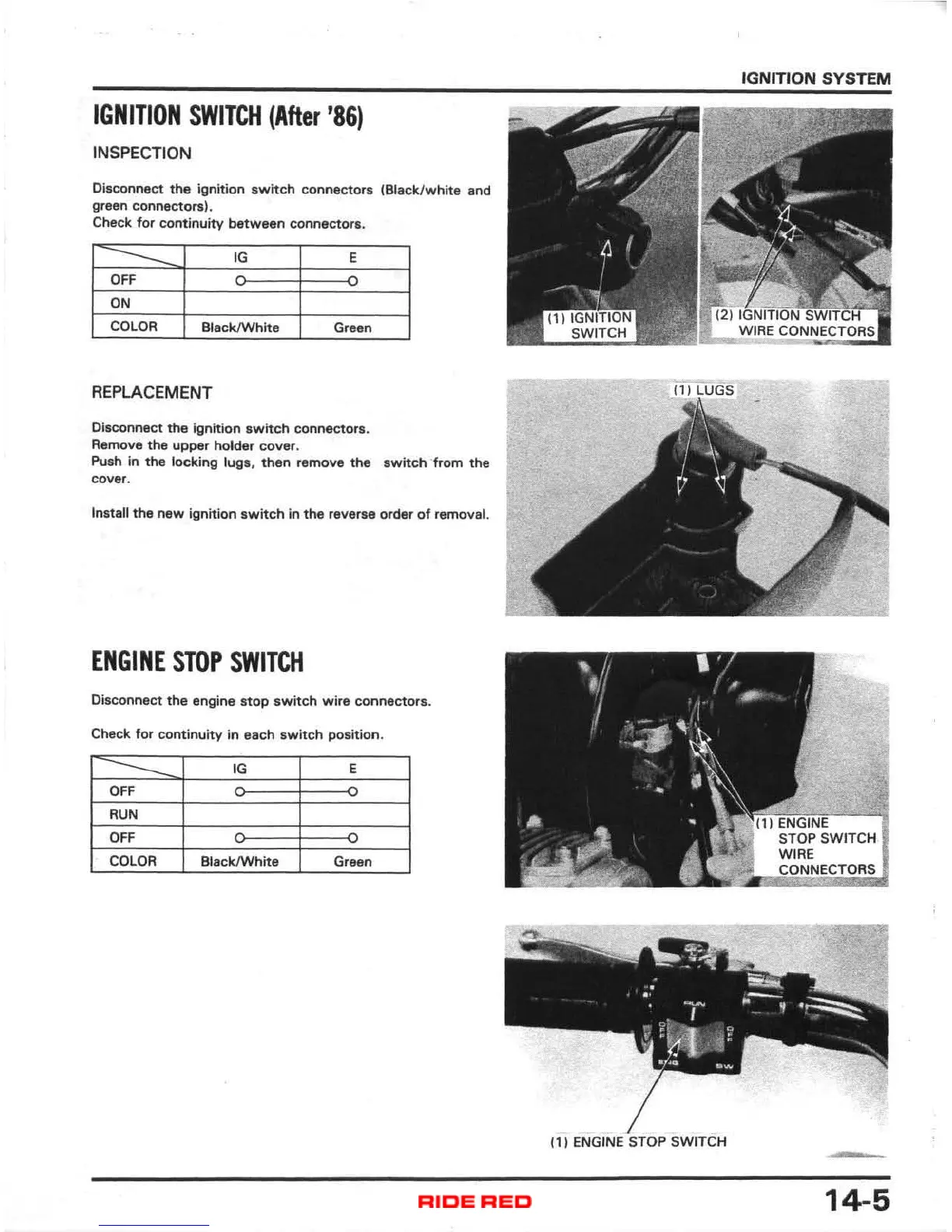

IGNITION SWITCH (After '86)
INSPECTION
Disconnect the ignition switch connectors (Black/white and
green connectors).
Check for conti nuit y between connectors.
IG
E
OFF
ON
COLOR
Black/White Green
REPLACEMENT
Disconnect the ignition switch connectors.
Remove the upper holder cover.
Push in the locking lugs. then remo ve the switch from the
cover.
Install the new ignition switch in the reverse order of removal.
ENGINE STOP SWITCH
Disconnect the engine stop switch wire connectors.
Check for contin u ity in each switch position .
IG E
OFF
0
RUN
OFF
COLOR Black/White Green
IGNITION SYSTEM
(1) ENGINE SWITCH
14-5
