Honda TRX70 Fourtrax 1986 User Manual

,
•
I
•
I

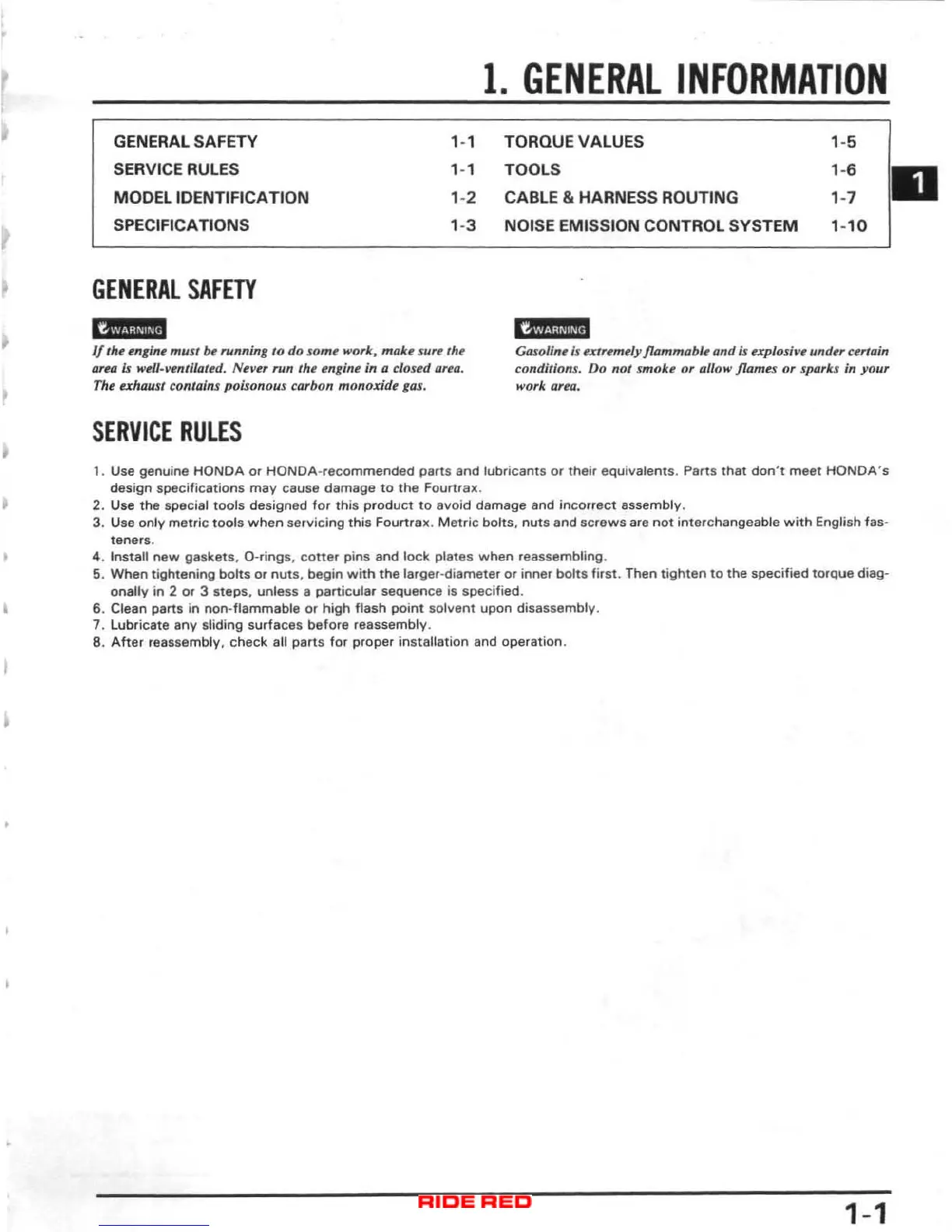

l. GENERAL INFORMATION
GENERAL SAFETY
SERVICE
RULE S
MODEL IDENTIFICATION
SPECIFICATIONS
GENERAL SAFETY
, -,
,-,
'-2
' -3
TOROUE VALUES
TOOLS
CAB LE & HAR N ES S ROUTING
NOISE E
MI SSION CONTROL SYSTEM
.¥
' -5
' -6
'-7
'- '0
I Jthe en,ine must lu runninl to do some work, moke sure the
arellis
well·ventilated. Never run the engine in a closed area,
The waust co ntains poisonous cQrbon monoxide gas.
Gasoline is utr~m~ / y ftlJmmllb/~ and l! up /osive under urta in
conditions. Do not smoke or allow flames or sptJrk.s in your
work Qrea.
SERVICE RULES
1. Use genuine HONDA or HONDA -recommended parts and lubricants or their eQuivale nts . Parts that don't meet HONDA 's
design specifications may cause damage to the Fourtrax.
2. Use the
special tools designed for this product to avoid damage and incorrect assembly.
3. Use only metric tools when servicing this Fourtrs x. Metric bolts, nut s and screws are nOl inter changeable with English fas-
teners.
4.
Install new gaskets , O-rings. cotter pins and lock plates when reassembling.
5. When tightening bolts or nuts , begin with the larger-diameter or inner bolts first . Then tighten to the specified torque diag-
onally in 2 or 3 steps. unless a particular sequence is specified.
6.
Clean parts in non-flammable or high flash point sol vent upon disass embly .
7. Lubricate
any sliding surfaces before reassembly.
8. After reassembly. check all part s for proper installation and operation.
1-1

Honda TRX70 Fourtrax 1986 Specifications

General

Brand	Honda
Model	TRX70 Fourtrax 1986
Category	Offroad Vehicle
Language	English
