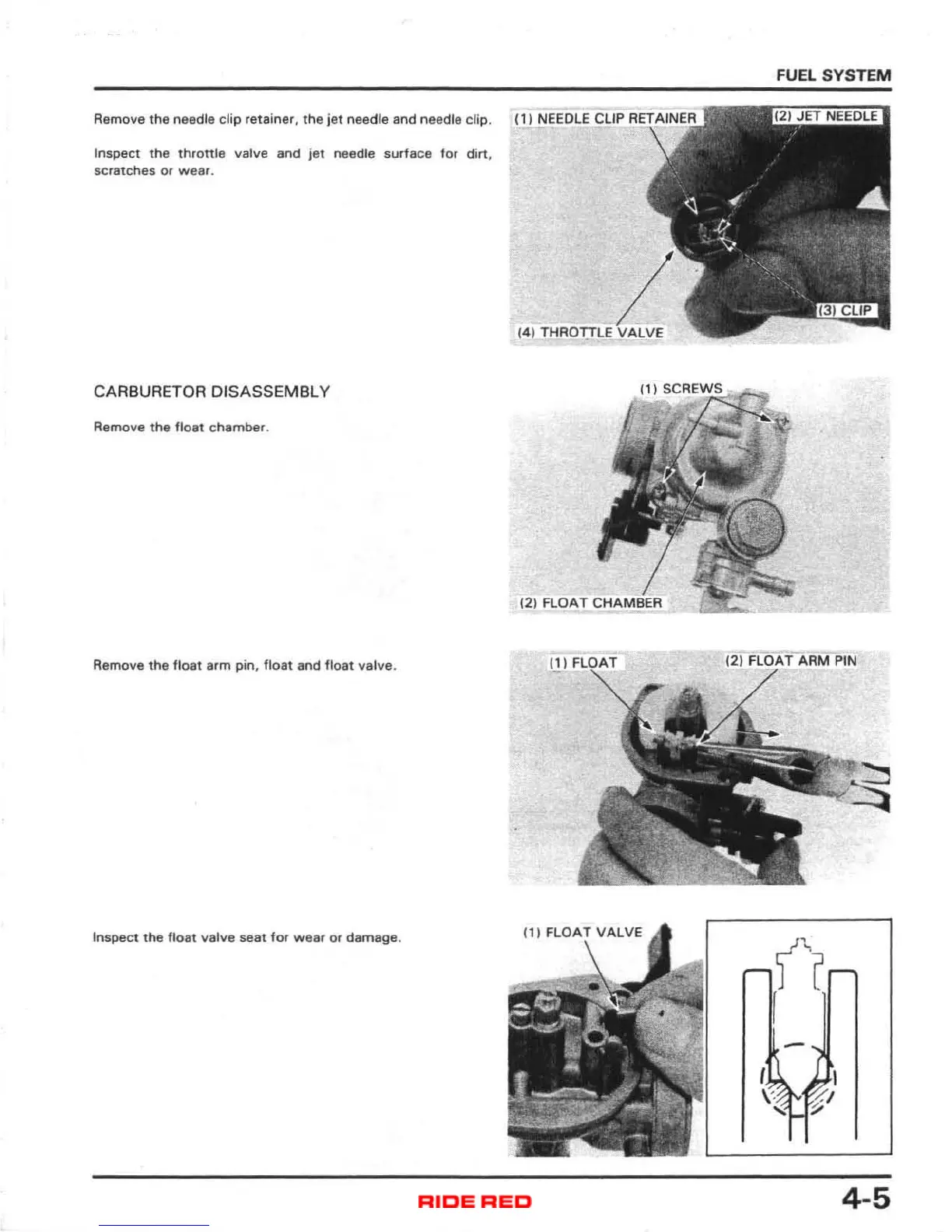

Remove the needle clip retainer, the jet needle and needle clip. (1) !:!EEDlE CLIP f!!,!~,'NI
Inspect the throttle valve and jet needle surface for dirt ,
scratches or wear.
CA RBUR ETO R DISASSEMBLY
Remove the float chamber .
Remove
the float arm pin, float and float valv8.
Inspect the float valve seat for wear or damage .
(4) THFIOlJrLE.'vAl.VE
12) FLOAT C,:!A!'I3ER
FUEL SYSTEM
(2) FLOAT ARM PI N
-
I
\, ./
" ~
4-5
