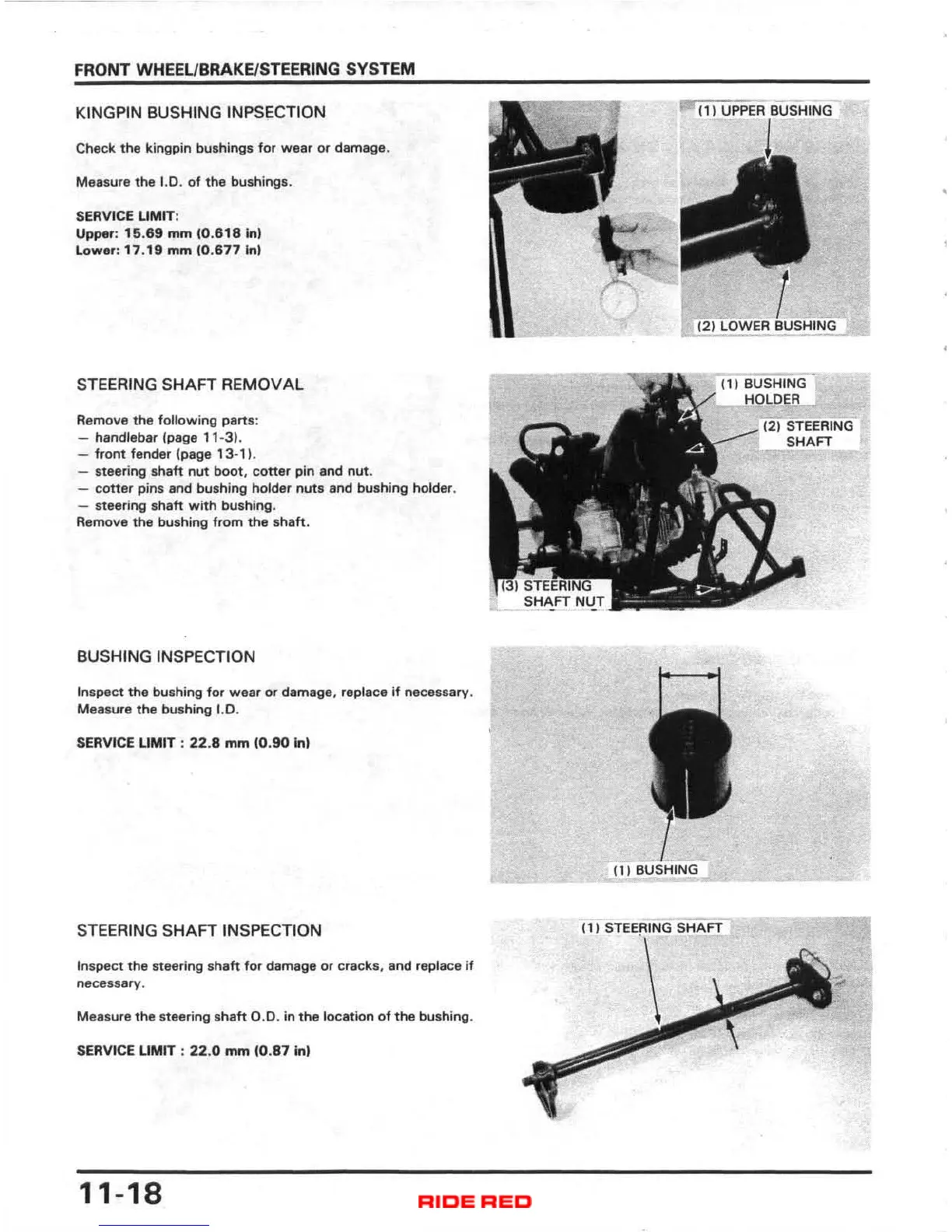

FRONT WHEEl/BRAKE/STEERING SYSTEM
KINGPIN BUSHING INPSECTION
Check the kingpin bushings for weBr or damage.
Measure the
1.0. of the bushings.
SERVICE UMfT:
Upper : 15 .6 9 mm (0.6181n1
Lower: 17 . 19 mm (0. 677 Inl
STEERING SHAFT REMOVAL
Remove the following parts:
- handlebar (page
11· 31 .
- front fender (page 13 -1 L
- steering shaft nut boot , cotter pin and nut.
- cotter pin s and bushing holder nuts and bushing holder.
- steering
shaft with bushing.
Remove the bushing
from the shaft .
BUSHING INSPECTION
Inspect the bushing for wear or damage. replace if necessary.
Measure
the bushing 1.0 .
SERVICE LIMIT : 22 .S mm 10 . 90 inl
STEERING SHAFT INSPECTION
Inspe ct the steering shaft for damage or cracks. and replace if
necessary.
Measure the steering shaft 0 .0 . in the location of the bushing.
SERVICE LIMIT: 22 .0 mm 10 . 87 inl
11-18
11' BUSHING
HOLDER
(, I STEE~ING SHAFT
(2) STEERING
SHAFT
