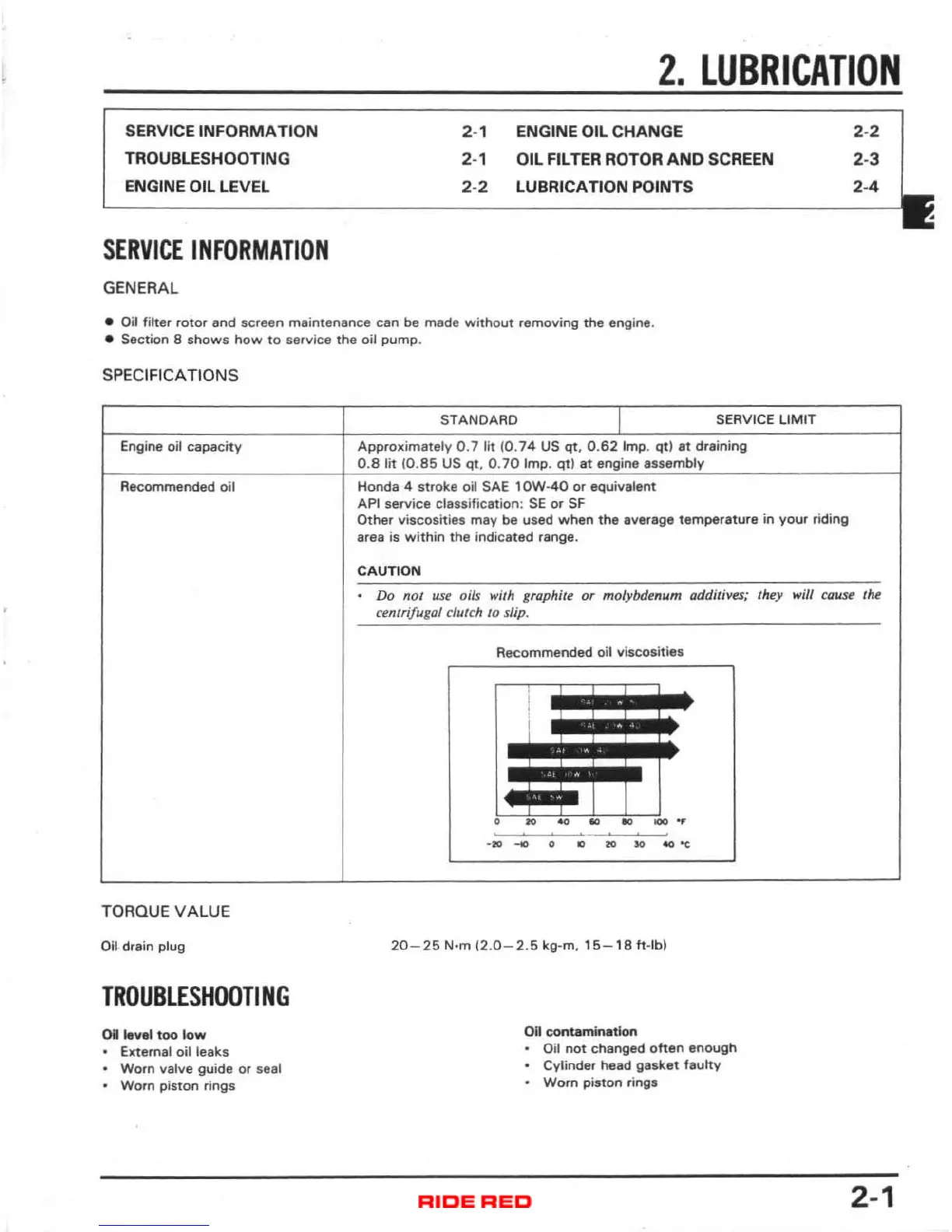

SERVICE INFORMATION
TROUBLESHOOTING
ENGINE OIL LEVEL
SERVICE INFORMATION
GENERAL
2·'
2·'
2·2
2. LUBRICATION
ENGINE OIL CHANGE
OIL FILTER ROTOR ANO SCREEN
LUBRICATION POINTS
2·2
2·3
2·4
• Oil filter rotor and screen maintenance can be made without remolling the engine .
• Section B shows how to service the oil pump .
SPECIFICA nONS
Engine oil capacity
Recommended oil
TORQUE VALUE
Oil drain plug
TROUBLESHOOTI NG
Oil "vel too low
External oil leaks
Worn valve guide or seal
Worn p iston rings
STANDARD
I
SERVI CE LIMIT
Approximately 0 .7 lit (0 . 74 US qt, 0.62 Imp. ql) at draining
0.8 lit 10 . 85 US qt , 0.70 Imp. qtl at engine assembly
Honda 4 stroke oil SAE ,OW · 40 or equivalent
API
service classi fication : SE or SF
Other viscositie s may be used when the average temperature in your rid ing
area is within the indicated range.
CAUTION
.
Do not US~ oils with graphite or molybdenum additius; they
will CQUM the
centrifugal clutch 10 slip.
Recommended oil viscosities
I
,
I
I I
•
~ ~ ~ ~
- ~
,
, ,
,
, ,
,
. ~
-
• •
~ »
~"'
20 -2 5 N·m 12.0-2.5 kg -m, 15 - 18 h-Ib)
Oil contaminatlon
Oil not changed ohen enough
Cylinder head gasket faulty
Worn pis ton rings
2-1
