Honda TRX70 Fourtrax 1986 User Manual

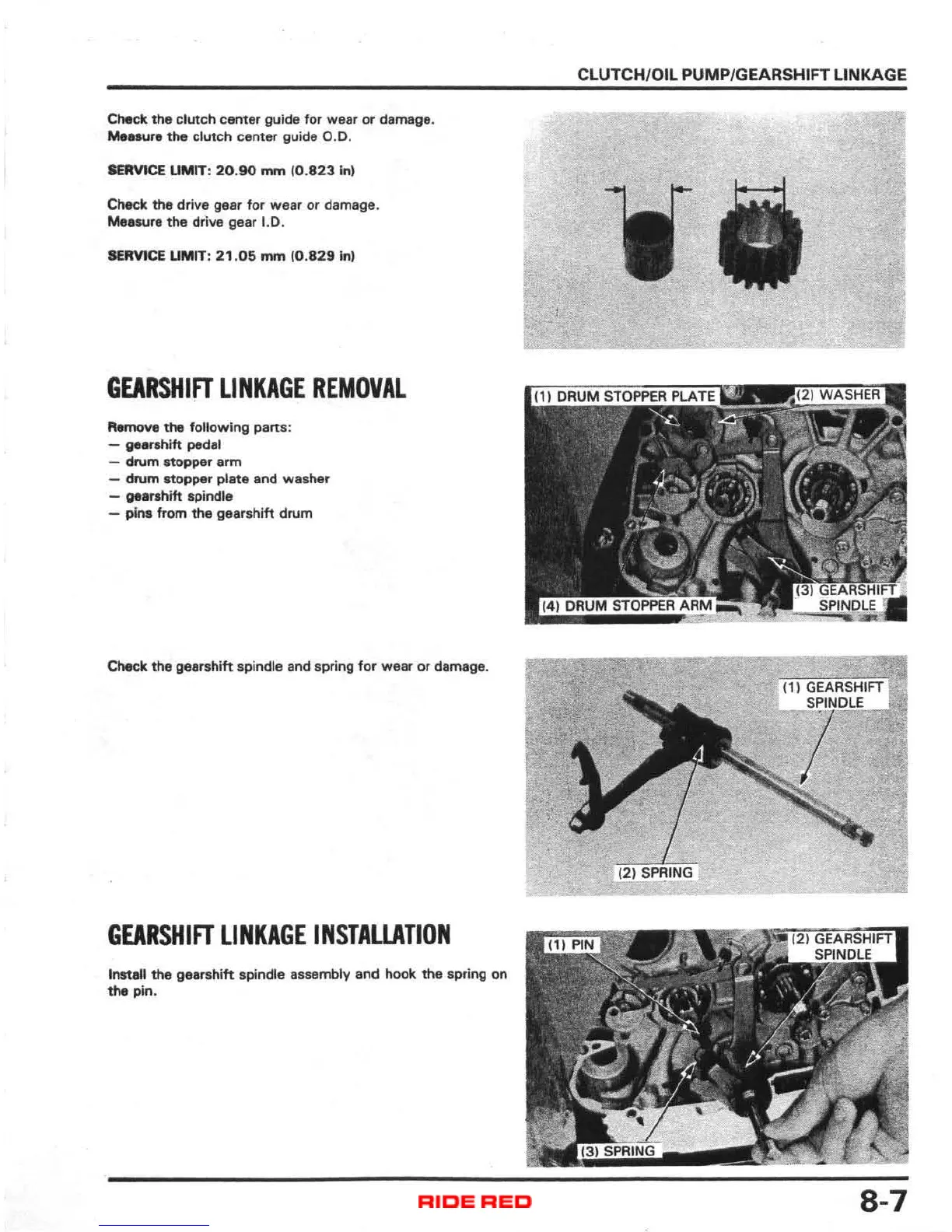

Check the clutch center guide for wear or damage.
Menura the clutch center guide 0 .0 .
SERVICE UMrT : 20.90 mm (0. 823 In)
Check
the drive gaar for wear or damage.
Ms .. ure the drive gear 1.0.
SERVICE UMIT : 21 . 05 mm 10 .82 9 in)
GEARSHIFT LINKAGE REMOVAL
Remove the following parts :
-
geerahift pedal
- drum atopper arm
- drum Itopper plate and washer
- gearshift spindle
- pins from the gearshift drum
Check the gearshift spindle and spring for wear or damage.
GEARSHIFT LINKAGE INSTALLATION
Install the gearshift spindle assembly and hook the spring on
the pin.
CLUTCH/OIL PUMP/GEARSHIFT LINKAGE
8-7
