Honda TRX70 Fourtrax 1986 User Manual

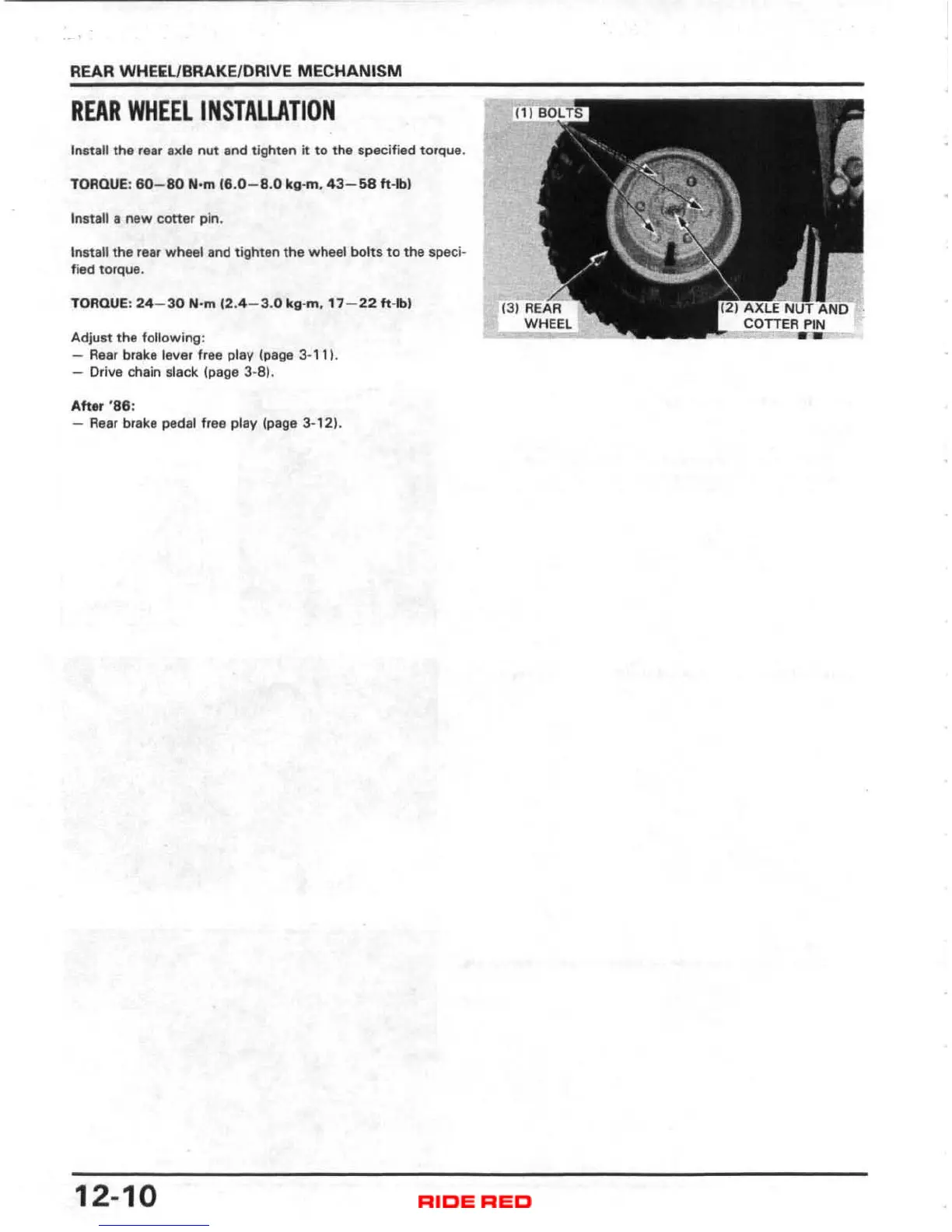

REAR WHEiUBRAKE/ DRIVE MECHANISM
REAR WHEEL INSTALLATION
Install the rear axle nut and tighten it to the specified torque .
TORQUE: 60-80 N·m 16.0- 8.0 kg-m. 43-68 ft-Ibl
Install a new cotter pin.
Install the reef wheel and tighten the wheel bolts to the speci-
fied torque.
TORQUE: 24 - 30 N·m 12 . 4-3.0 kg-m. 17 -22 ft-lbI
Adjust the following :
- Reaf brake lever free play (page 3-11).
- Drive chain slack (page 3-8).
After 'S8:
- Rear brake pedal free plav (page 3-12).
12-10
