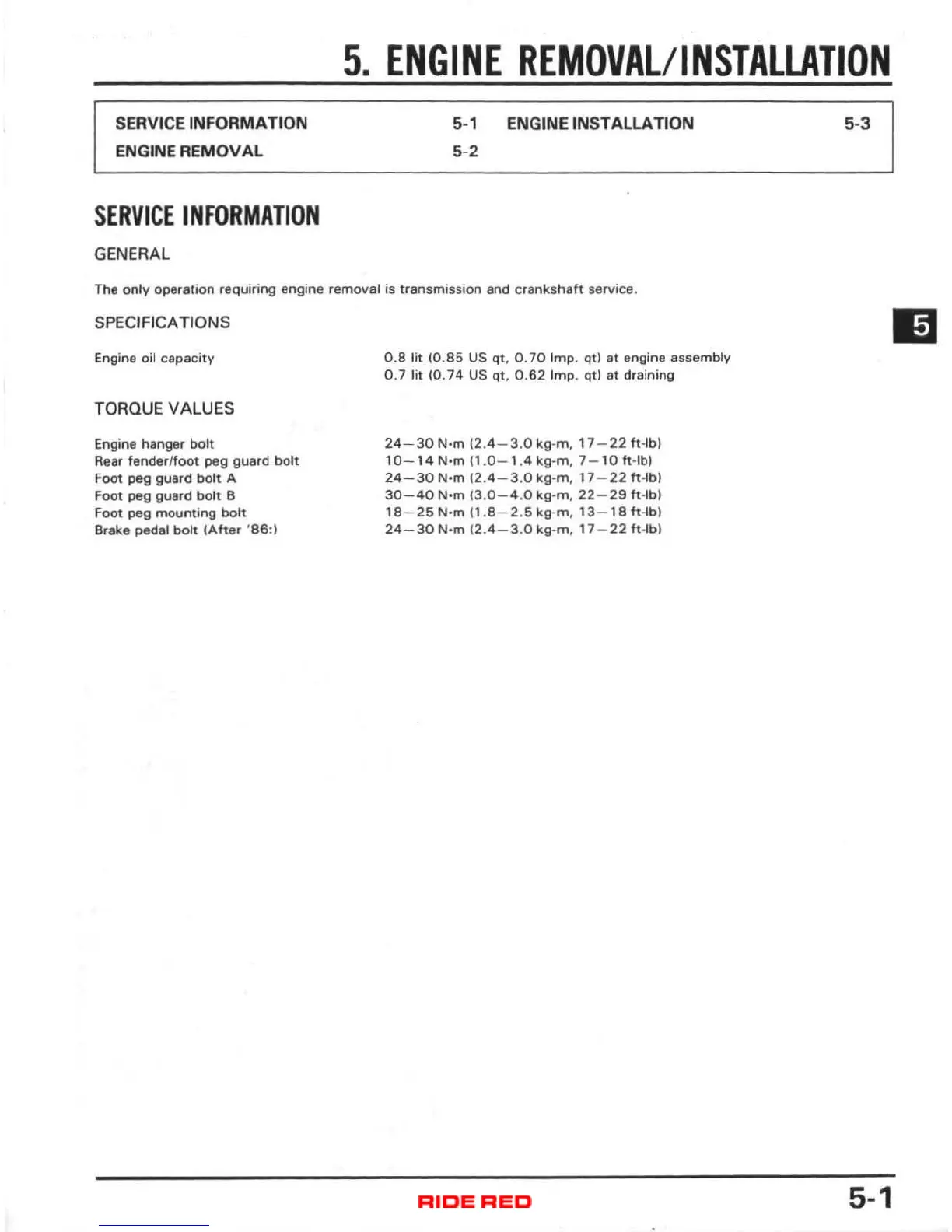

Honda TRX70 Fourtrax 1986 User Manual

SERVICE INFORMATION
ENGINE REMOVAL
SERVICE INFORMATION
GENERAL
5. ENGINE REMOVAL/INSTALLATION
5-1
5-2
ENGINE INS TALLATION 5-3
The onlv operation requiring engine removal is transmission and cranks haft service.
SPECIFI CAT IONS
Engine oil capacity
TORQUE VALUES
Engine hanger bolt
Rear fenderlfoot peg guard bolt
Foot peg guard bolt A
Foot
peg guard bolt B
Foot
peg mounting bolt
Brake pedal bolt (After ' 86 :1
0.8 lit (0.85 US qt, 0.70 Imp . qtl at engine assembly
0.7 lit (0.74 US qt , 0.62 Imp. qt) at draining
24 - 30 N·m (2.4-3.0 kg·m, 17 - 22 ft -Ib)
10 - 14 N·m 11.0- '.4 kg·m , 7 - 10 ft - rb)
24-30 N·m (2.4-3.0 kg. m. 17 - 22 ft -Ib)
30-40 N·m 13.0-4.0 kg·m, 22 - 29 ft - rb)
18 - 25 N·m ( 1.8 - 2.5 kg-m. 13 - 18 ft -r b)
24 - 30 N·m 12.4 - 3 .0 kg -m , 17 - 22 ft -rb)
5-1
