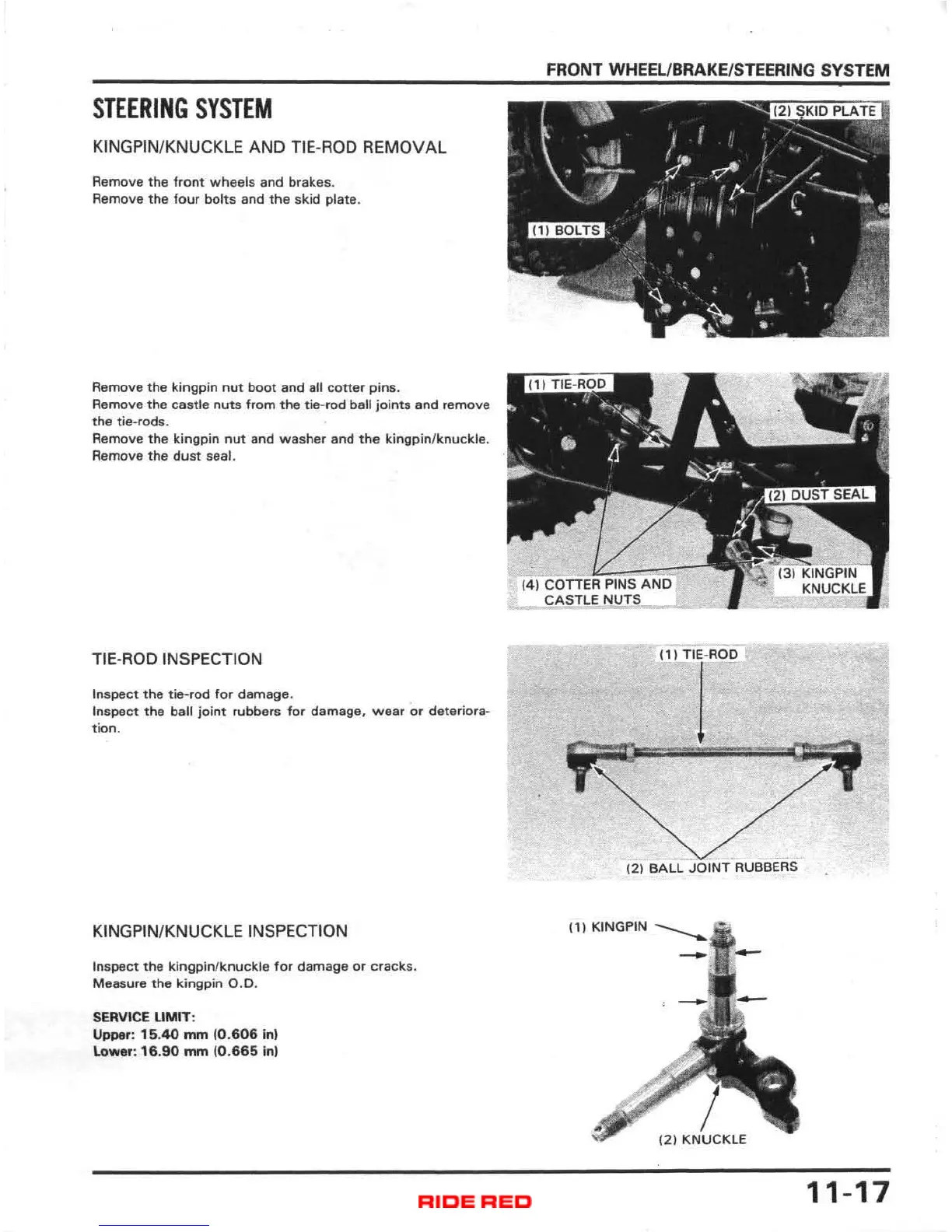

STEERING SYSTEM
KINGPIN/KNUCKLE ANO TIE- ROD REMOVAL
Remo ve the front wheels and brakes.
Remove
the four bolt s and the skid plate .
Remove
the kingpin nut boot and all coner pin s.
Remove the castle nuts from the tie-rod ball joints and remove
the tie-rod s.
Re mo ve the kingpin nut and washer and the kingpin/knuckle.
Remove
the dust seal.
TIE-ROD INSPECTION
Inspect the ti e-rod for damage.
Inspect the ball joint rubbers for damage. wear or deteriora-
tion.
KINGPIN/KNUCKLE INSPECTION
Ins pe ct the kingp in/knuckle for damage or cracks.
Measure the kingpin 0 .0 .
SERVICE UMIT:
Upper : 15 . 40 mm 10 . 606 inl
lower : 16.90 mm (0. 665 Inl
FRONT WHEEL/BRAKE/STEERING SYSTEM
1 21 BAll
RUBBERS
11-17
