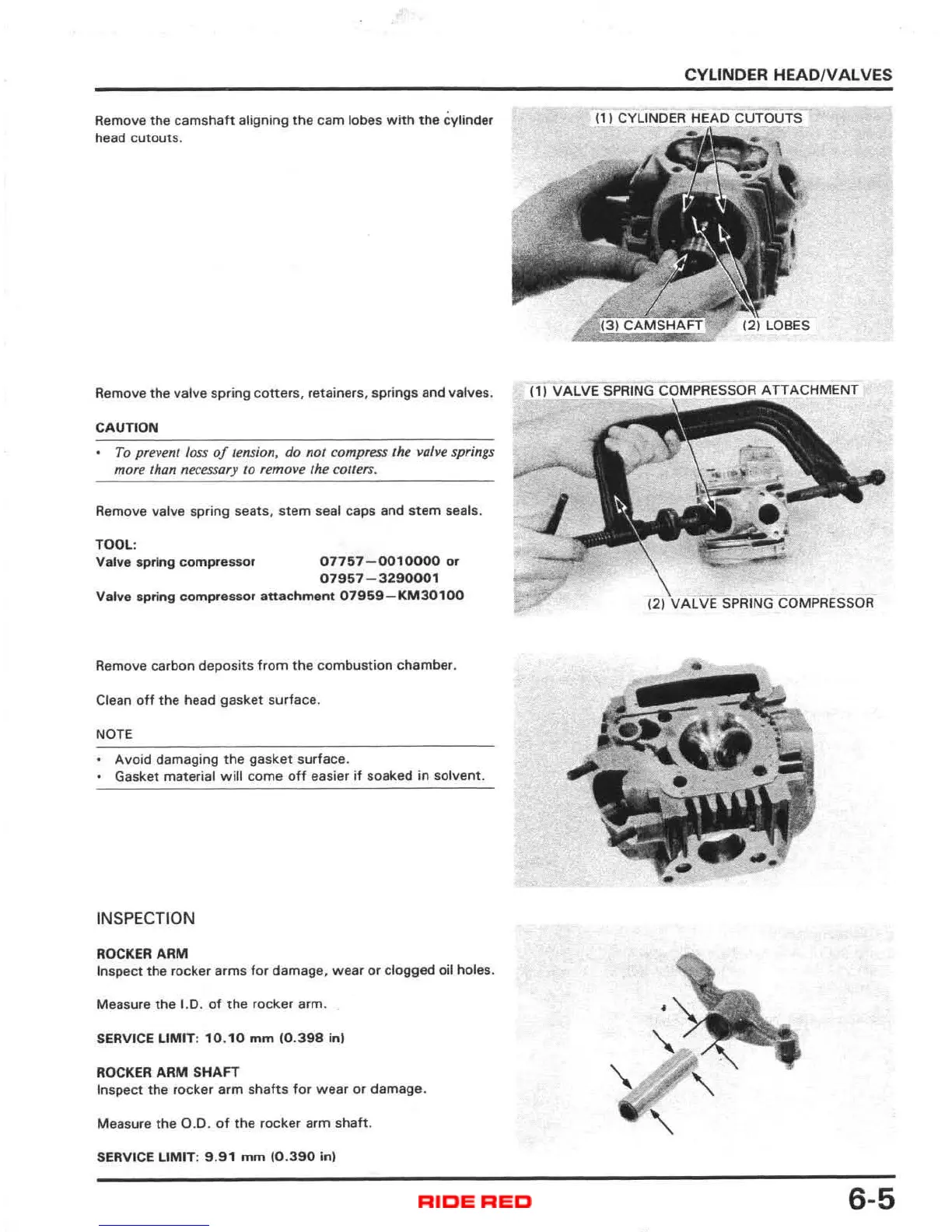

Remove the camshaf t al i gning the cam lobes wi th the cy li nder
head cutouts .
Re m ove the valve spring cotte rs, retainers, sp rings an d valves.
CAUTION
To prevent loss oj lension, do nOI compress the valve sp rings
more than
necessary to remove the cotters.
Remove valve s pr ing seats, stem seal caps and ste m seal s.
TOOL:
Va lv e spring c ompr ess or
07757 - 0010000 or
07957 -3 290001
Va lve spring compr essor a tta chment 07959 - KM30100
Remove car bo n deposits from the combustion chamber.
Clean ot f the head gasket surface.
NO TE
Avoid damaging the gasket su rf ace.
• Gasket material wi ll come off easier if soaked in solvent.
IN S PE CTION
ROCKER ARM
I nspect the r ocker arms fo r damage, wear or cl ogged oil holes.
Measure
the 1.0. of t he r ocker arm.
SERVICE LIMIT : 10 . 10 mm (0 . 39B inl
ROCKER ARM S HAFT
In spect the r ocker arm sh afts fo r wee r or da mage.
Measure t
he 0 . 0. of the r ocke r arm sh aft.
SERVICE LIMIT : 9 . 91 mm (0 . 390 inl
CYLINDER HEAD IV ALVES
(1 1 V AL VE S PRIN G CO"" "RESSOR
(21 VA (. VESPR ING COMPRESSOR
6-5
