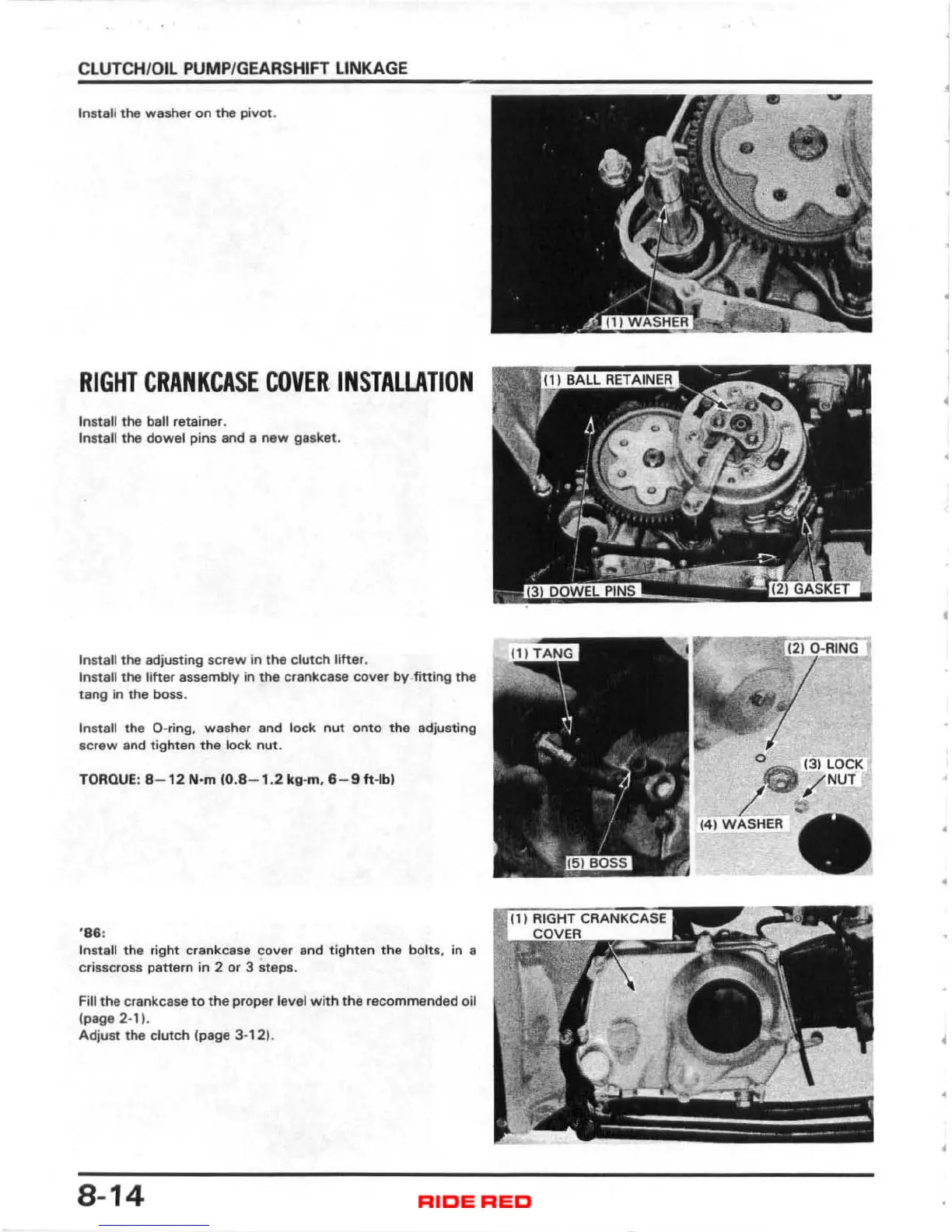

CLUTCH/OIL PUMP/GEARSHIFT LI NKAGE
Install the washer on the pivot.
RIGHT CRANKCASE COVER INSTALLATION
Install the ball retainer.
Install the dowel pins and a new gasket.
In stall the adjusting screw In the clutch litter .
Install the lifter assemblv in the crankcase cover by . fining the
tang in the boss.
Install the O-ring, washer and lock nut onto the adjusting
screw and tighten the lock nut .
TOROUE : 8-12 N·m 10.8-1.2 kg- m. 6-9 ft-Ibl
'86 :
Install the right crankcase cover and tighten the bolts, in a
crisscross panern in 2 or 3 steps .
Fill the crankcase to the proper level with the recommended oil
(page 2·1).
Adjust the clutch jpage 3-1 21.
8- 14
~(3Il0CK
,"4gf /NUT
--L. -
(4) WASHER
I
1
•
•
•
•
•
•
