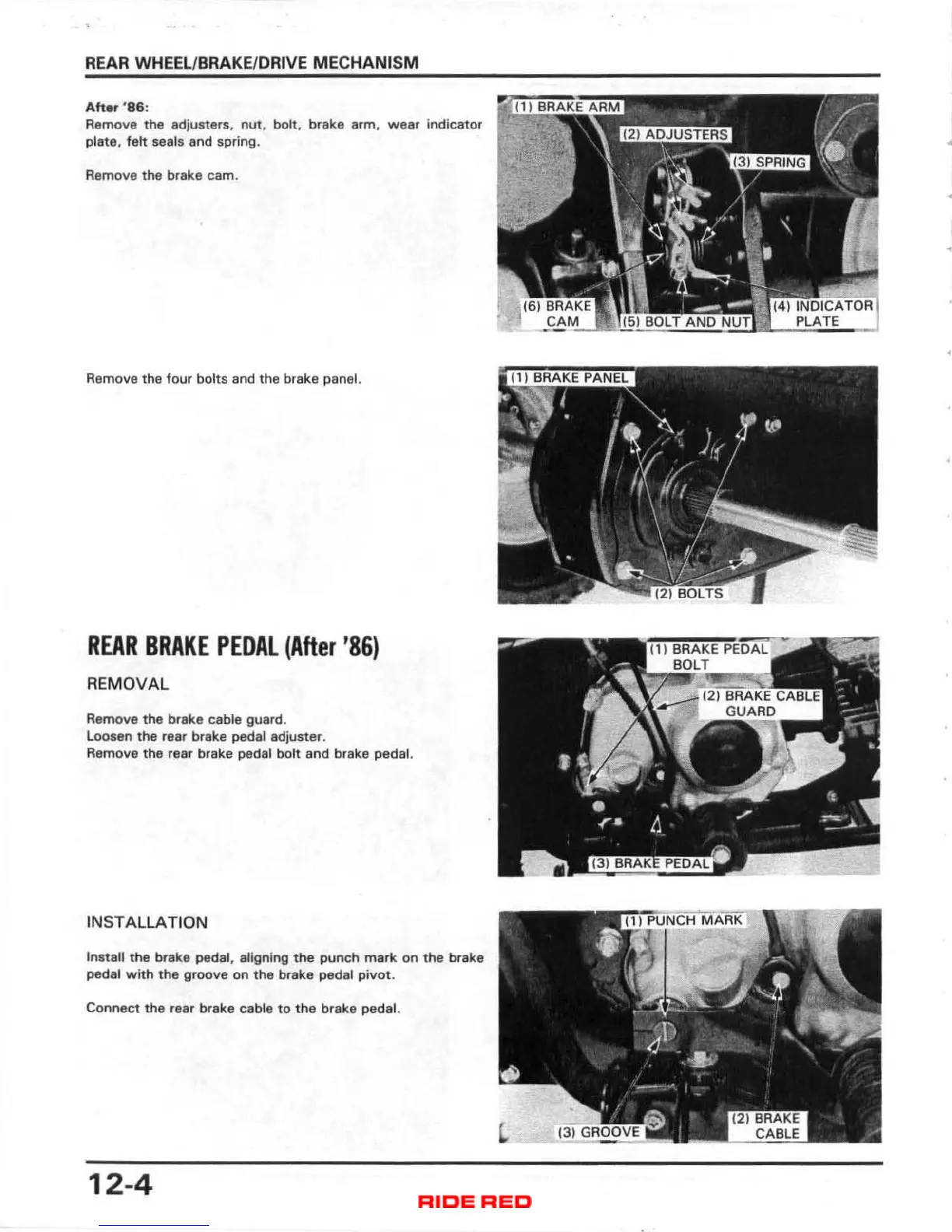

REAR
WHEEL/BRAKE/DRIVE MECHANISM
Aft.,
'S6
:
Remove the adjusters,
nut
.
bolt
, brake
arm
,
wear
i
ndicator
plate
,
felt
seals end spring.
Remove
the
brake
cam
.
Remove
the
four
bolts
and
the
brake panel.
REAR
BRAKE
PEDAL
(After
'86)
REMOVAL
Remove
the
brake cable guard.
Loosen
the
rear brake pedal
adjuster
.
Remove
the
rear brake pedal bott end brake pedal.
INSTALLATION
Install
the
brake pedal. aligning
the
punch
mark
on
the
brake
pedal
with
the
groove
on
the
brake pedal
pivot
.
Connect
the
reaf brake cable
to
the
brake pedal.
12-4
•
•
•
•
