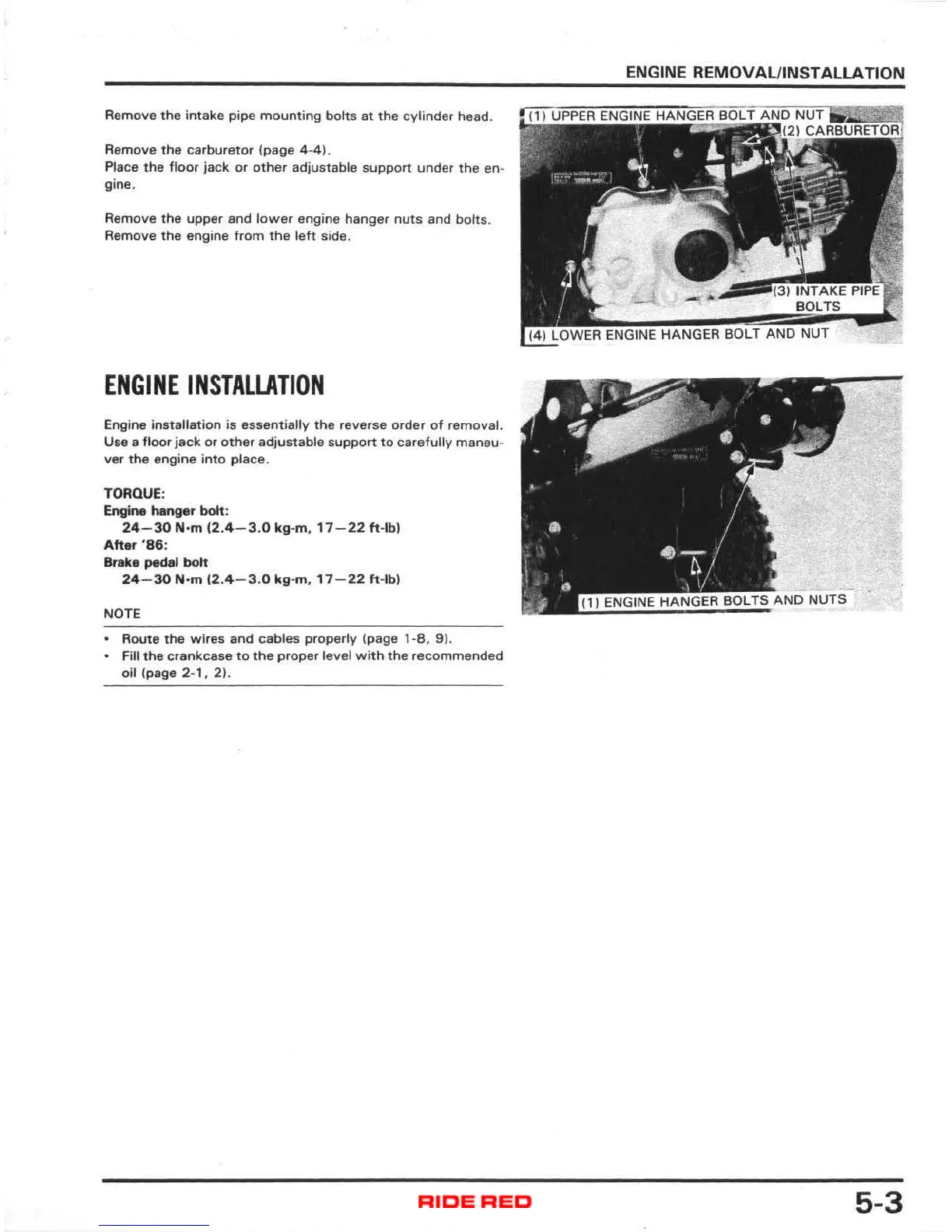

Remove the intake pipe mounting bolts at the cylinder head.
Remove the car buretor (page 4-4).
Place the floor jack or other adjustable support under the en-
gine.
Remove the upper and
lower engine hanger nuts and bolts.
Remove the engine
from the left side.
ENGINE INSTALLATION
Engine installation is essentially the reverse order of removal.
Use a floor jack or o th er adjustable support to carefully maneu-
ver the engine into place.
TORQUE:
Engine hanger bolt:
24-30 N·m 12.4-3.0 kg-m. 17-22 ft -Ibl
Afte, ' S6 :
Blake pedal bah
24-30 N·m 12 .4 -3. 0 kg-m. 17 - 22 ft - Ib)
NOTE
Route the wires and cables properly (page 1-8, 9).
Fill the crankcase to the proper level with the recommended
oil (page
2·1, 2).
ENGINE REMOVAUINSTALLATION
5-3
