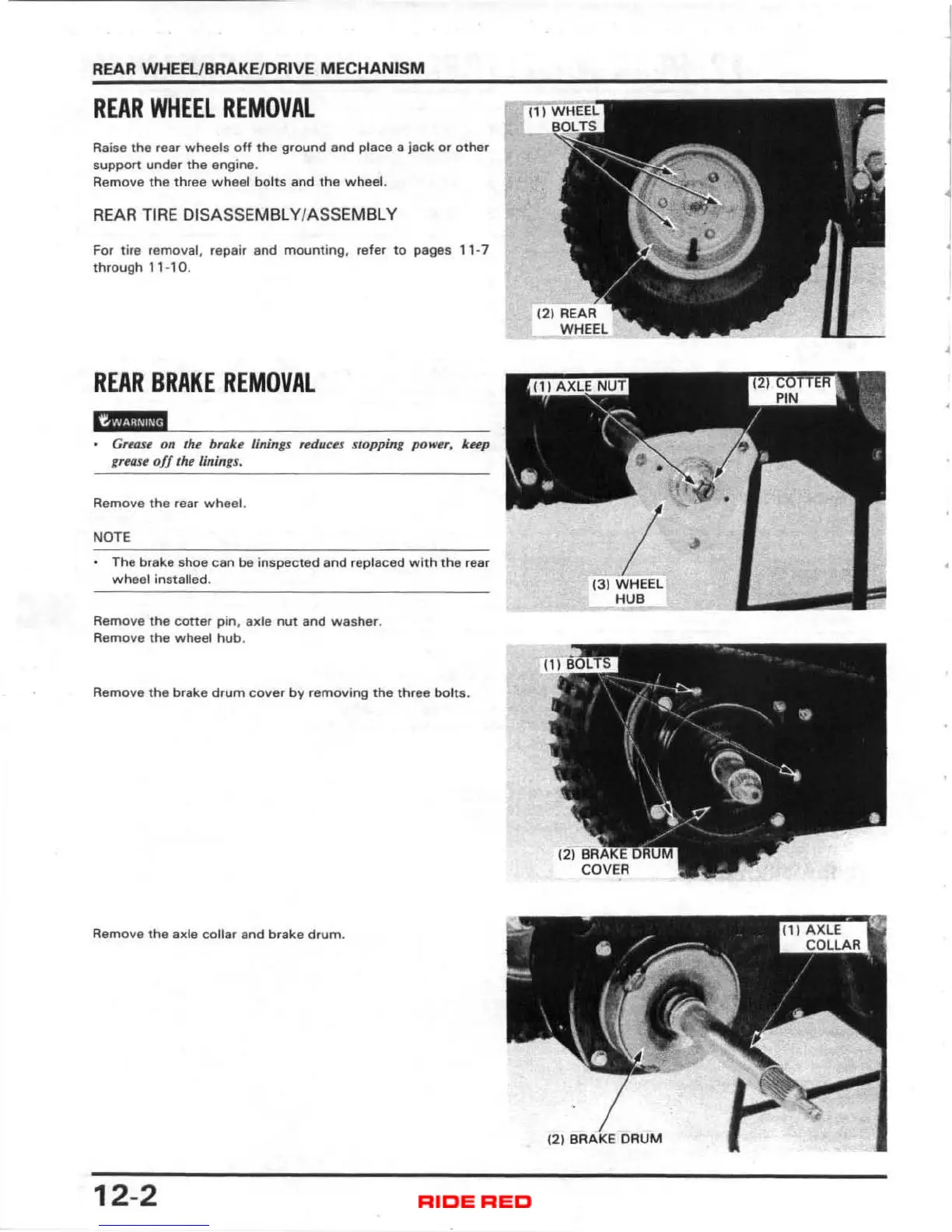

REAR WH EEL/BRAKE/DRIVE MECH ANISM
REAR WHEEL REMOVAL
Raise the rear wheels off the gr ound end place 8 jack or ot her
su
pport under th e engine.
R
emove the t hr ee whee l bolts and the wheel.
REAR TIRE DISASSEMBLY/ASSEMBLY
For tire remo .... al , repair and mounting , refer to pages 11 ·7
through 11 -, O.
REAR BRAKE REMOVAL
G rms ~ on lh~ brake lininls reduces stoppin: power, 4HP
,rNU olf the Iinin: s,
Remove the rear whee l.
NOTE
The brake shoe can be inspected and replaced with the f eB r
wheel installed.
Remove
the cotter pin, u :le nut and washer.
Remove 1he wheel hub .
Remove
th e brake drum cover by rem oving the three bolts .
Remove the axle collar and brake drum .
12 -2
(21
(3) WHEEL
HUB
DRUM
,
