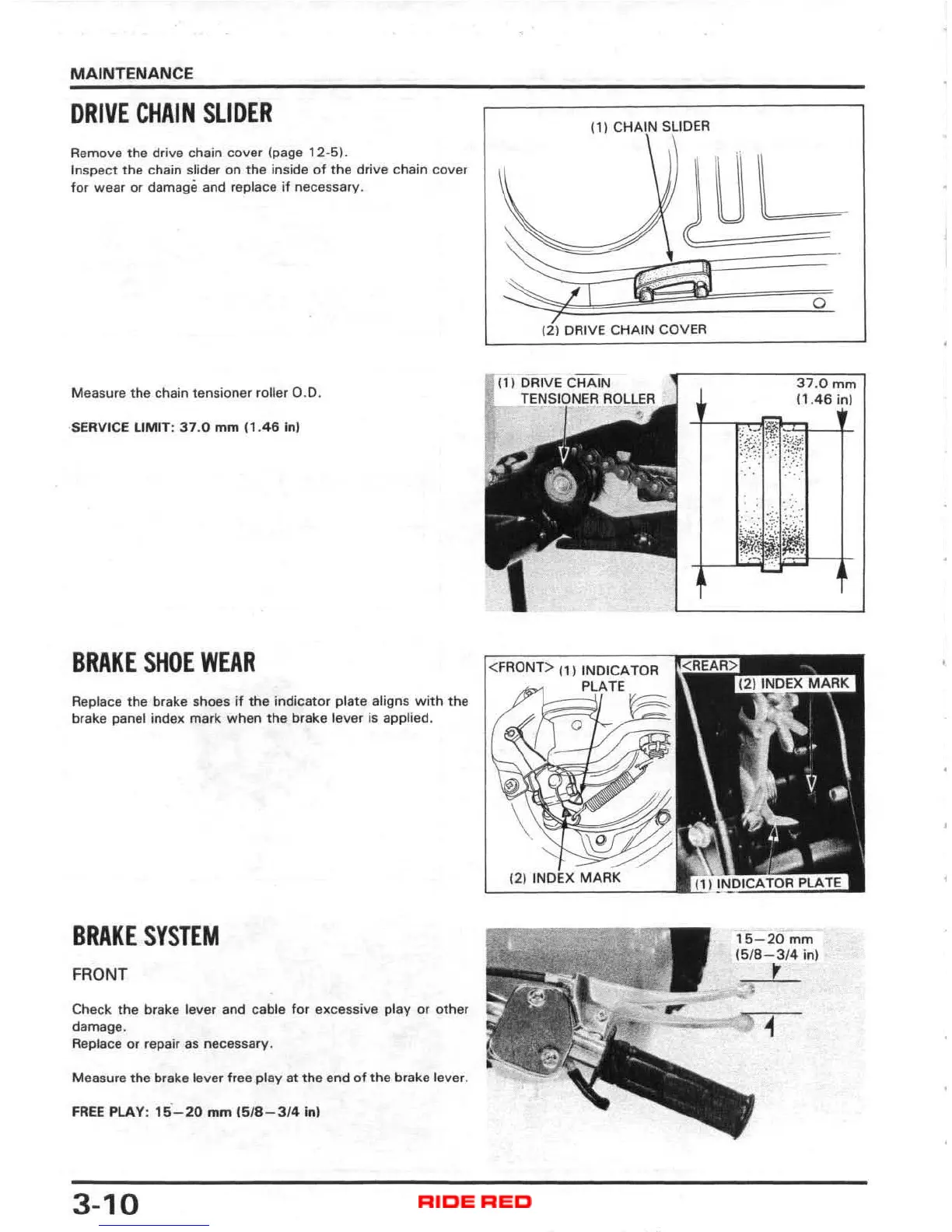

MAINTENANCE
DRIVE CHAIN SLIDER
Remove the drive chain cover (page 12·5).
In
spect the chain slider on the inside of the drive chain cover
for
wear or damage and replace if necess ary .
Measure the chain
tensioner roller 0.0.
SERVICE LIMIT : 37 .0 mm (1.46 inl
BRAKE SHOE WEAR
Replace the brake shoes if th e indicator plate aligns with the
brake panel indo)( mark whe n th e brake lever is applied.
BRAKE SYSTEM
FRONT
Check the brake lever and cable for excessive pl ay or other
damage.
Replace or repair as necessary.
Measure the brake
lever free play at th e end of the brake lever.
FREE PLAY; 15 "- 20 mm 15 /8 - 3/ 4Inl
3-10
(1\ CHAIN SUDER
(2) DRIVE CHAIN COVEA
UL
o
1 5-20 mm
(5/ 8-3 /4 in)
..
I
