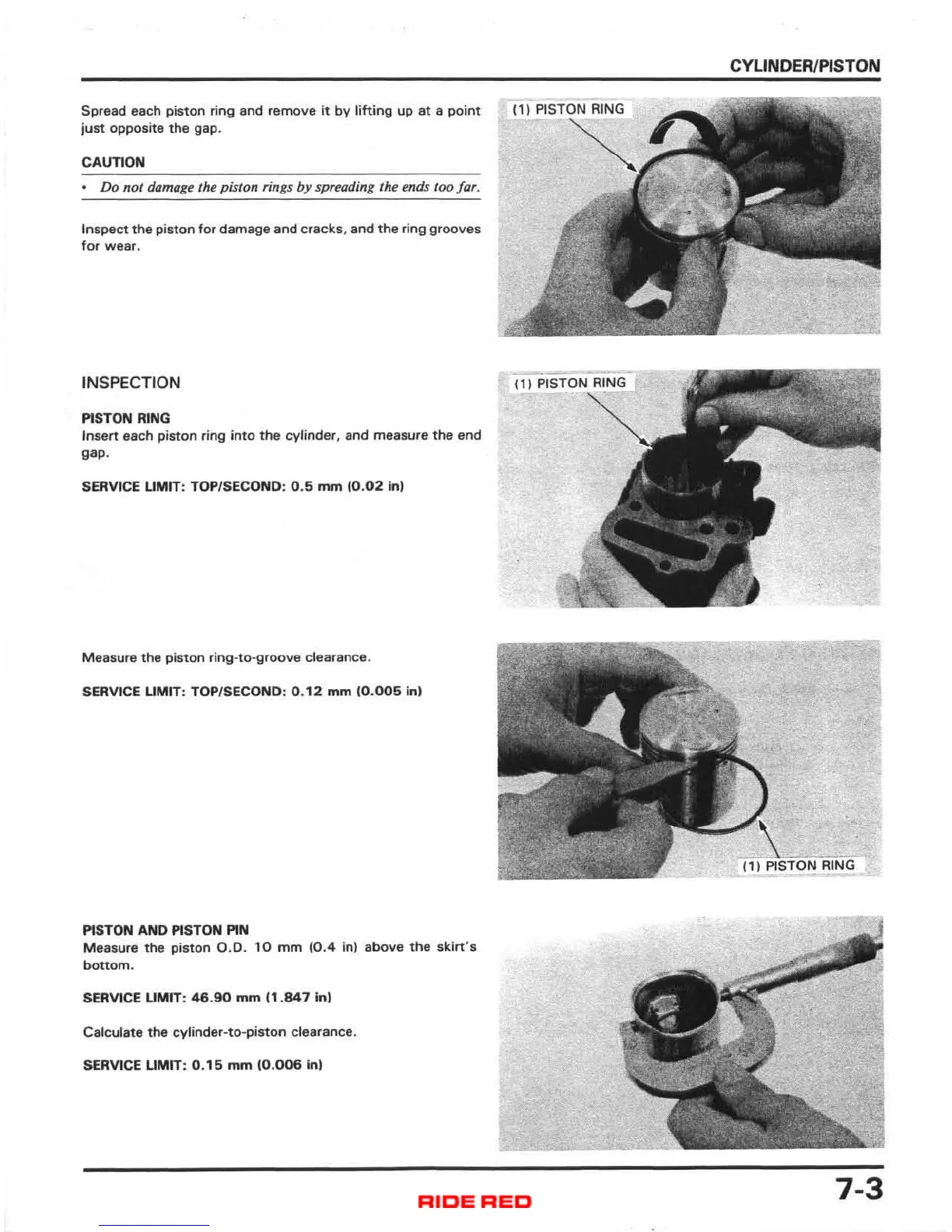

Spread each piston ring and remove it by lifting up at a point
just opposite the gap.
CAUTION
• Do not damage the piston rings by spfNding the ends 100 far.
Inspe ct the piston for damage and cracks. and the ring grooves
for wear.
INSPECTION
PISTON RING
Insert each piston
ring into the cylinder, and measure the end
gap.
SERVICE UMIT : TOP/SECOND: 0.5 mm 10 . 02 In)
Mea sure the piston ri ng -te-groove clearance.
SERVICE UMIT : TOP/SECOND; 0 . 12 mm (0.005 in'
PISTON AND PISTON PIN
Measure the piston 0.0 . 10 mm (0.4 in) above the skirt's
bottom.
SERVICE UMIT: 46 . 90 mm '1.847 Inl
Calculate the cylinder-te-piston clearance.
SERVICE UMIT: 0. '5 mm (0.006 Inl
CYLINDER/PISTON
(1) PISTON RING
(1)
7-3
