CLUTCH/OIL PUMP/GEARSHIFT LINKAGE

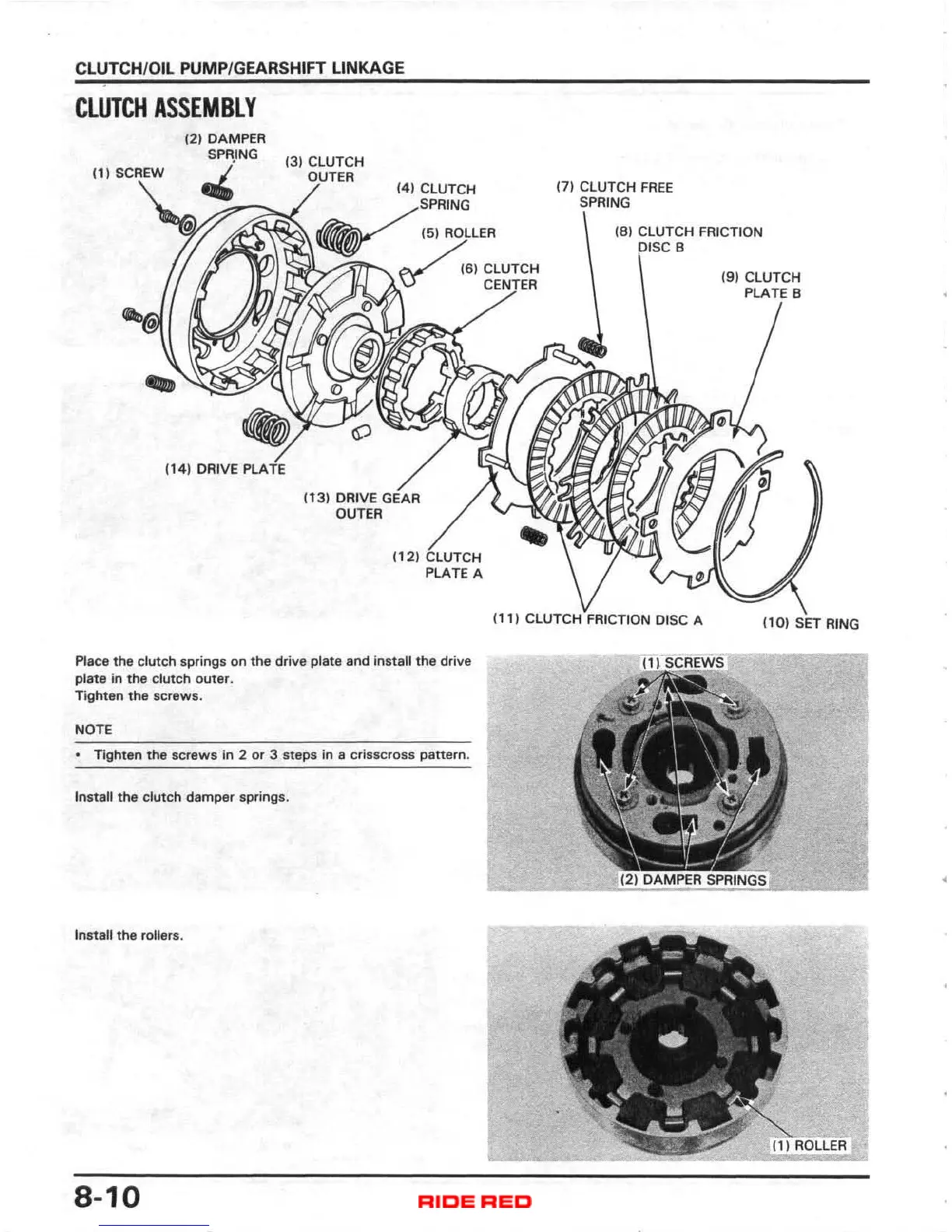

CLUTCH ASSEMBLY
(1) SCREW
(2) DAMPER
SPR .ING
~
(14) DRIVE PLATE
(3)
CLUTCH
OUTER
(4) CLUTCH
SPRING
~ (5)RO LLER
~""..::;;i7t" ~6) CLUTCH
~ (I CENTER
(13) DRIVE GEAR
OUTEA
(12) CLUTCH
PLATE A
(7) CLUTCH FREE
SPRING
(8) CLUTCH FRICTION
DISC B
(11) CLUTCH FRI CT ION DISC A
Place the
clutch springs on the drive plate and install th e drive
plate in the clutch outer.
Tighten the screws.
NOTE
• nghten the sc r ews in 2 or 3 steps in a crisscross pattern.
Install the clu tch damper springs.
Install the rollers.
8-10
(10) SET RING
