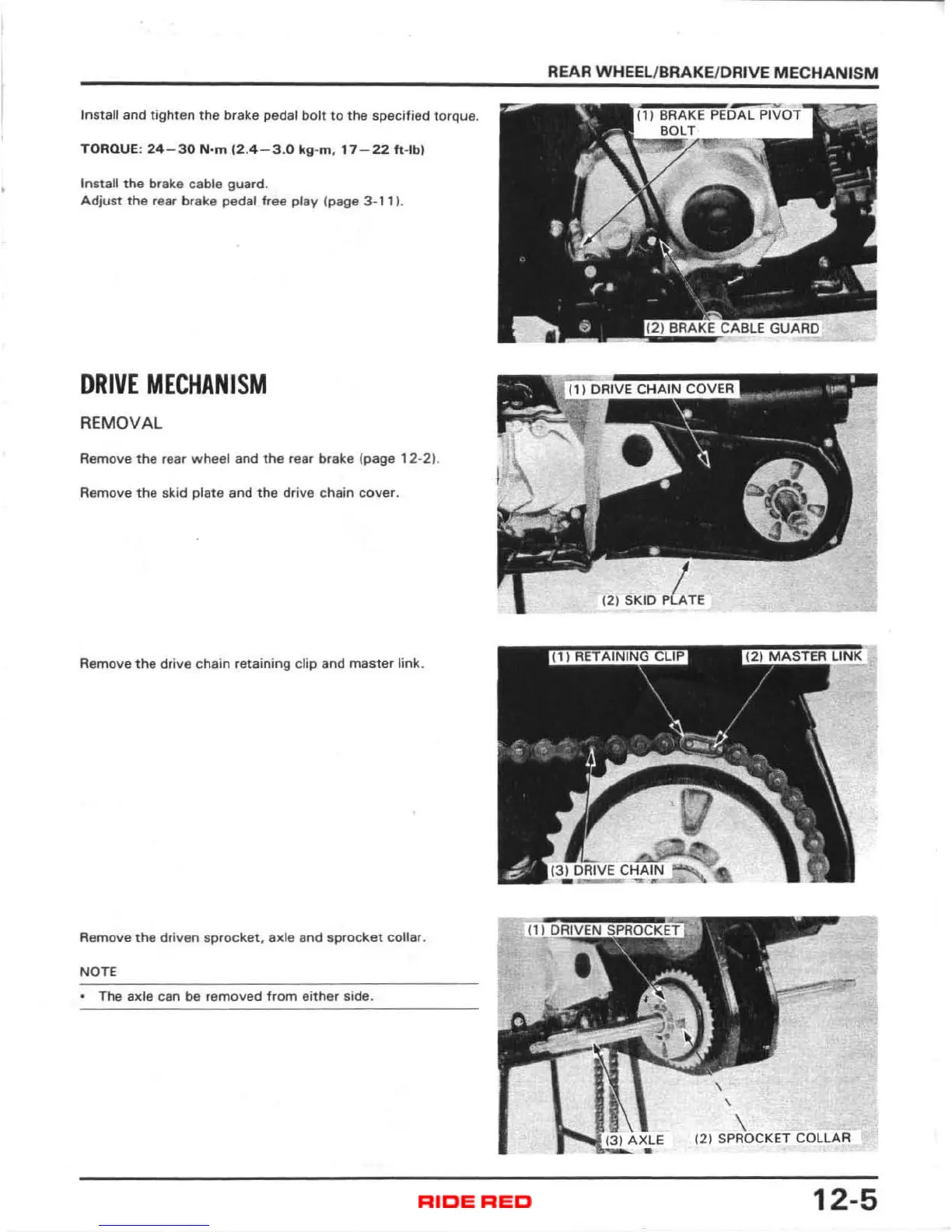

REAR
WHEEL/BRAKE/DRIVE MECHANISM
Install
and
tighten
the
brake pedal
bolt
to
the specified torque.
TORQUE:
24-30
N·m
(2.4-3
.0 kg.m,
17
-
22
ft
·
lbl
Install
the
brake cable guard.
Adjust
the
tear brake pedal free
plav
(page 3-11).
DRIVE
MECHANISM
REMOVAL
Remove the rear
wheel
and
the
tear brake (page 12·2).
Remove
the skid plate and
the
drive chain
cover.
Remove
the
drive chain retaining clip
and
master
l
ink
.
Remove
the
driven
sprocket
. axle
and
sprocket
collar.
NOTE
• The axle can
be
removed
from
either
side.
\
\
(21
SPROCKET COLLAR
12-5
