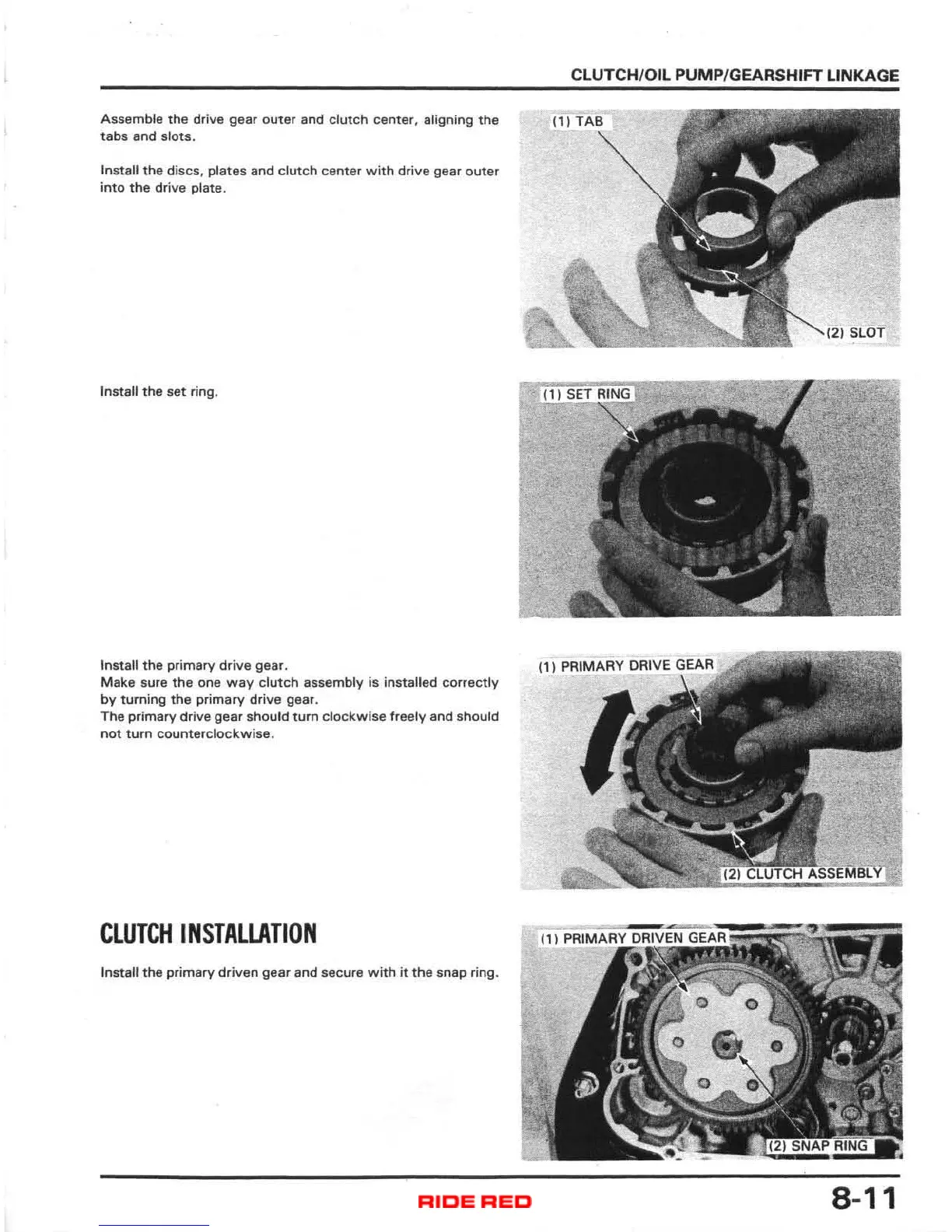

Assemble the drive gear outer and cl utch center, aligning the
tabs and slots .
Install
the discs , plates and clutch center with drive gear outer
into the drive plate.
Install the set ring.
Install the primary drive gear.
Make sure the one way clutch assembly is installed correctly
by turning the primary drive gear.
The
primary drive gear shou ld turn clockwise freely and should
not turn counterclockwise .
CLUTCH INSTALLATION
Install the primary driven gear and secure with it the snap ring.
CLUTCH/OIL PUMP/GEARSHIFT LINKAGE
(1) PRI!!lAAV DRI VE ~"~" . ~
8-11
