2 Equipment Description
2.23 I/O Link Interface Cabling
R688
HPM High-Performance Process Manager Service
127
December 2020
Honeywell
I/O Link Interface cabling
- T
hree Card Files

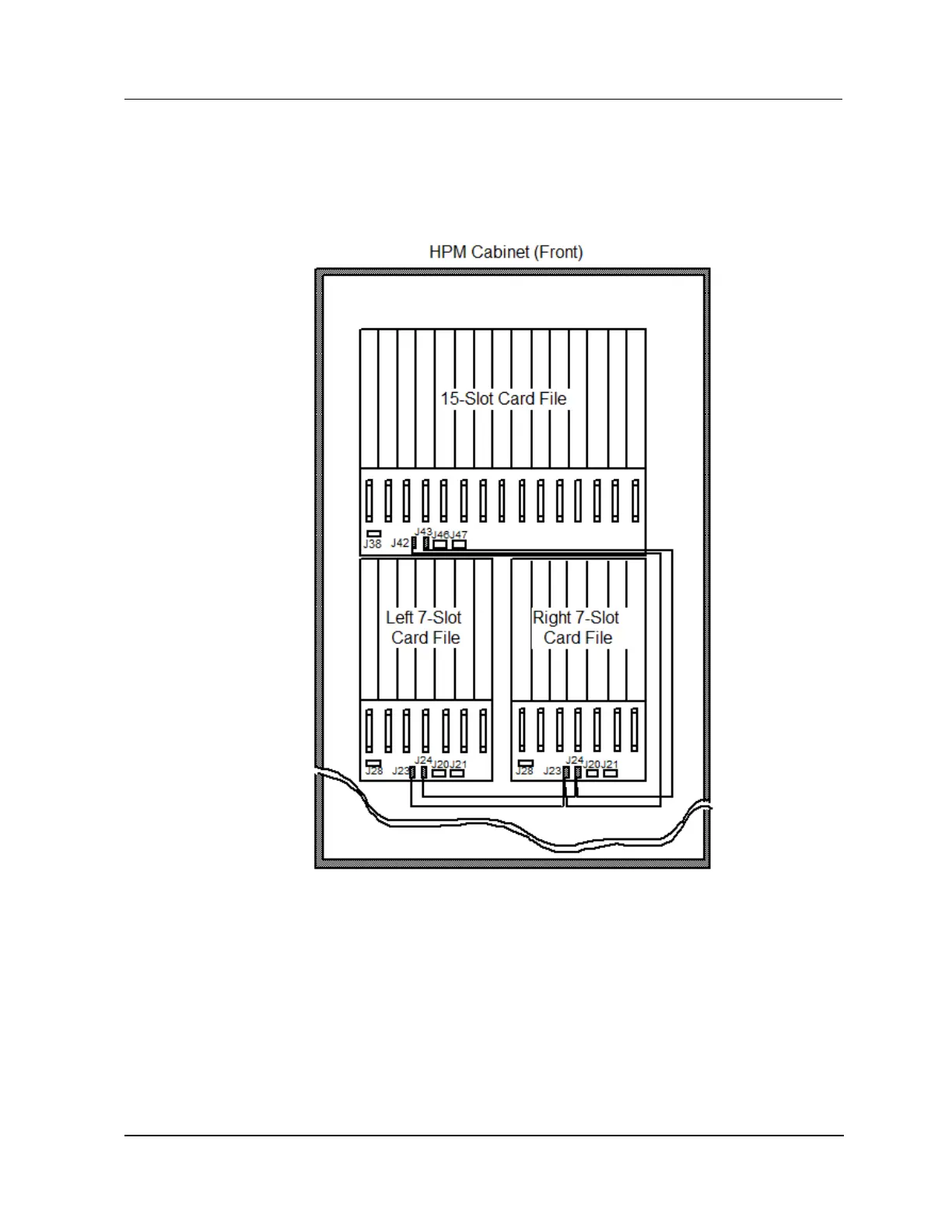

The following figure is an il
lustration of the I/O Link Interfa
ce cabling for an High
-Per
formance Process
Manager configuration t
hat consists of two 7
-Slot HPMM card
files and one 15-Slot IOP
card file.
Figure
56
Three Card Files
126
128
