2.25 Power Adapter Cabling
Introduction
Using a standard FTA cable, the model MU-TLPA02 Power Adapter can be located up to 50 meters (164
feet) distance from the card file containing the associated IOP card. The Power Adapter connects to one
or two FTAs that can be installed at a remote location up to 305 meters (1000 feet) from the Power
Adapter. Figure 63, Figure 64, and Figure 65 illustrate its application with the Low Level Multiplexer,
Serial Device Interface, and Serial Interface IOPs respectively.
LLMux interconnections
The following figure illustrates the Power Adapter interconnections for a Low Level Multiplexer
application.

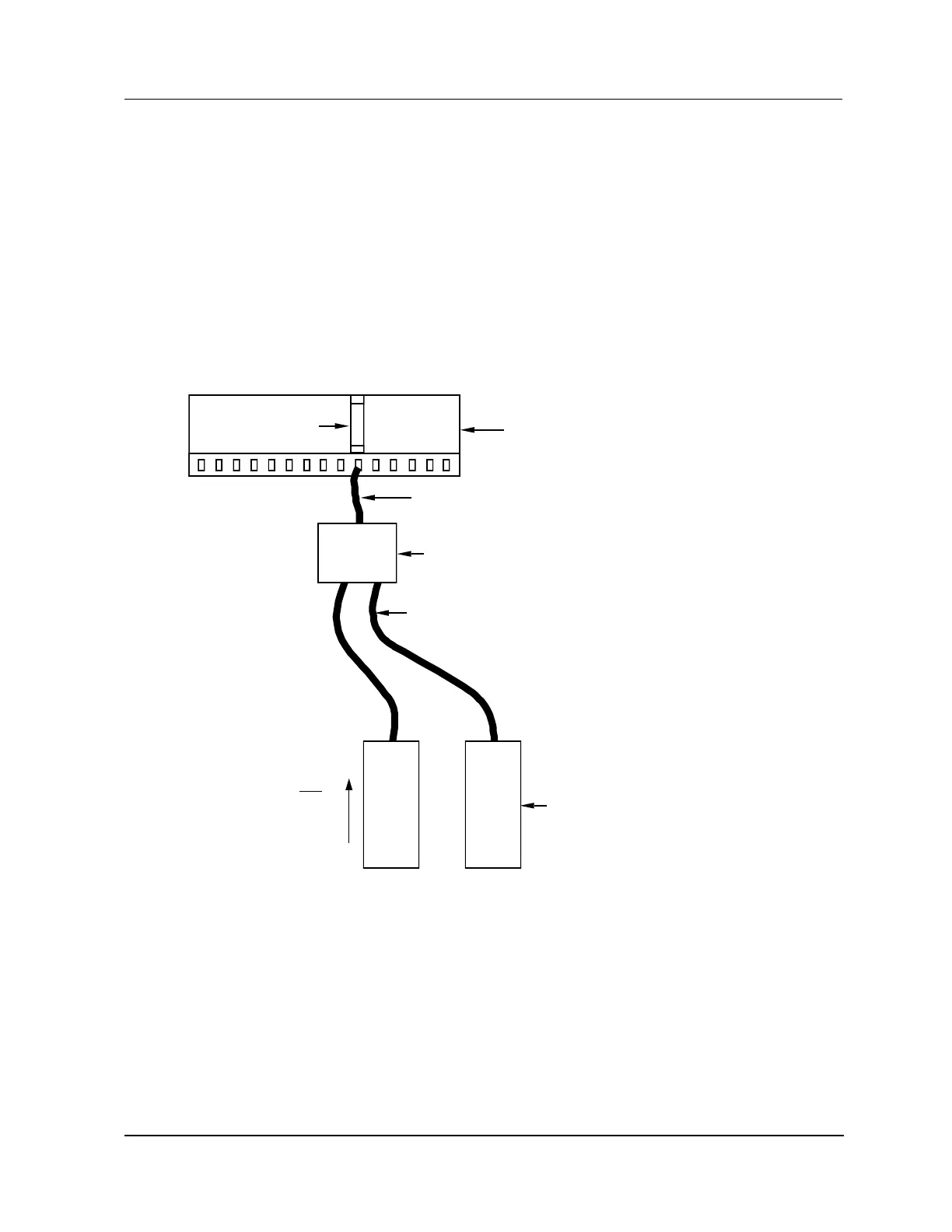

Figure 63 Power Adapter Interconnections – LLMux Application
A-Size
Card File
Model
MU-TLPA02
Power
Adapter
The FTA assemblies must
be mo unted upright
(mercury-wetted relays) at al l
times and installed in the
cabinet or a NEMA 12
mounting box.
UP
UNIT 0 UNIT 1
Model MU-PLAM02
LLMux IOP
Model MU-KFTAxx FTA Cable
50 me ters (164 feet) Maximum Leng th
Model MU-KLAMxx Internal Cabinet Cable
or
Model MU-KLXxxx Exte rnal Cab inet Cable
305 meters (10 00 feet) Ma ximum Le ngth
LLMux Mo dels
MU-TAMR02 (RTD)
or
MU-TAMT02/12 (TC)
FTAs
B-Size
2910
