2 Equipment Description
2.23 I/O Link Interface Cabling
128
HPM High-Performance Process Manager Service
R688
Honeywell
December 2020
I/O Link Interface - Fou
r Card Files

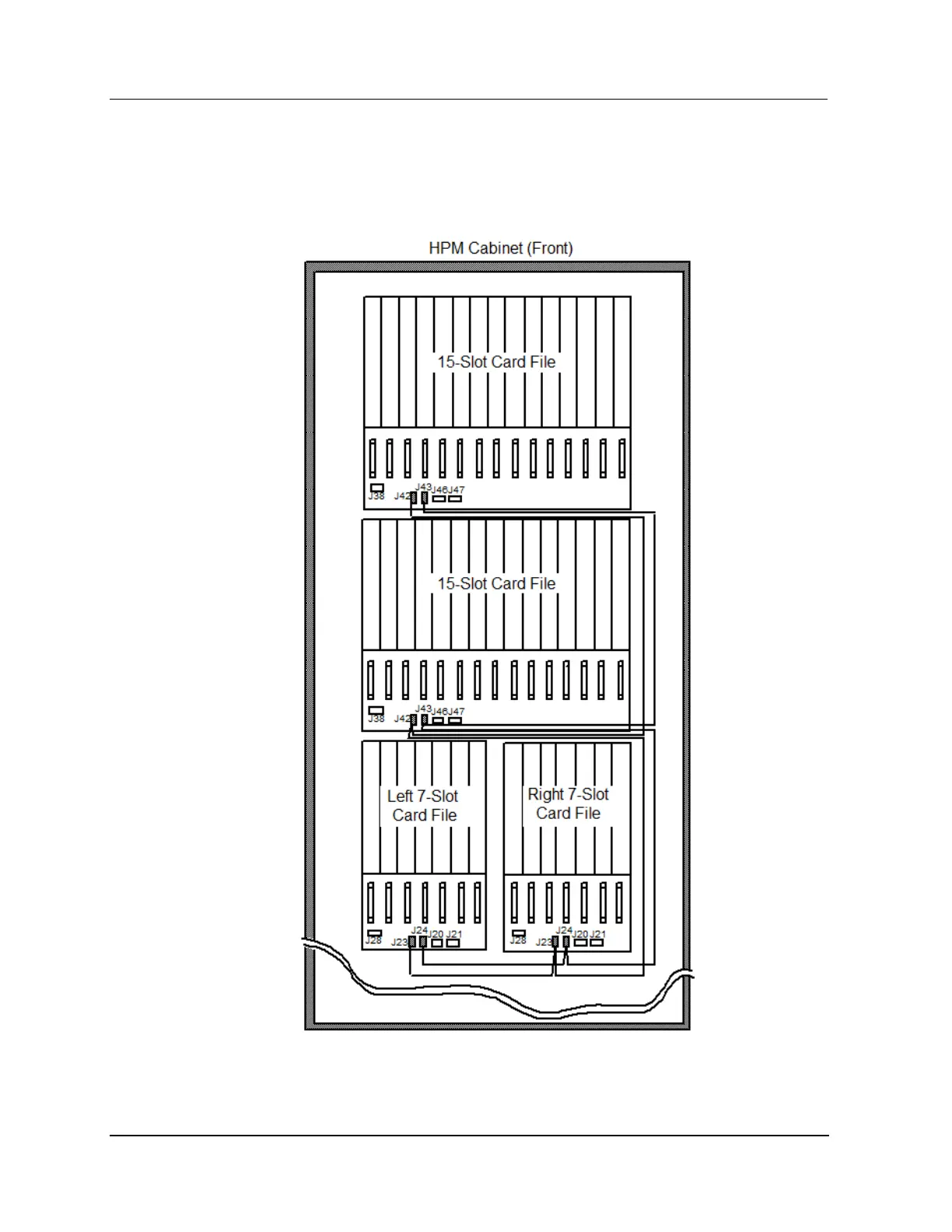

The following figure is an il
lustration of the I/O Link Interfa
ce cabling for an High
-Per
formance Process
Manager configurat
io
n that consists of two 7
-Slot HPMM card
files and two 15-Slot IOP
card files.
Figure
57
Four Card Files
127
129
