2 Equipment Description
2.13 Field Termination Assembly
82 HPM High-Performance Process Manager Service R688
Honeywell December 2020
FTA fixed screw terminal connector
The following figure illustrates a typical fixed screw-type terminal connector as it would appear on a
standard FTA.

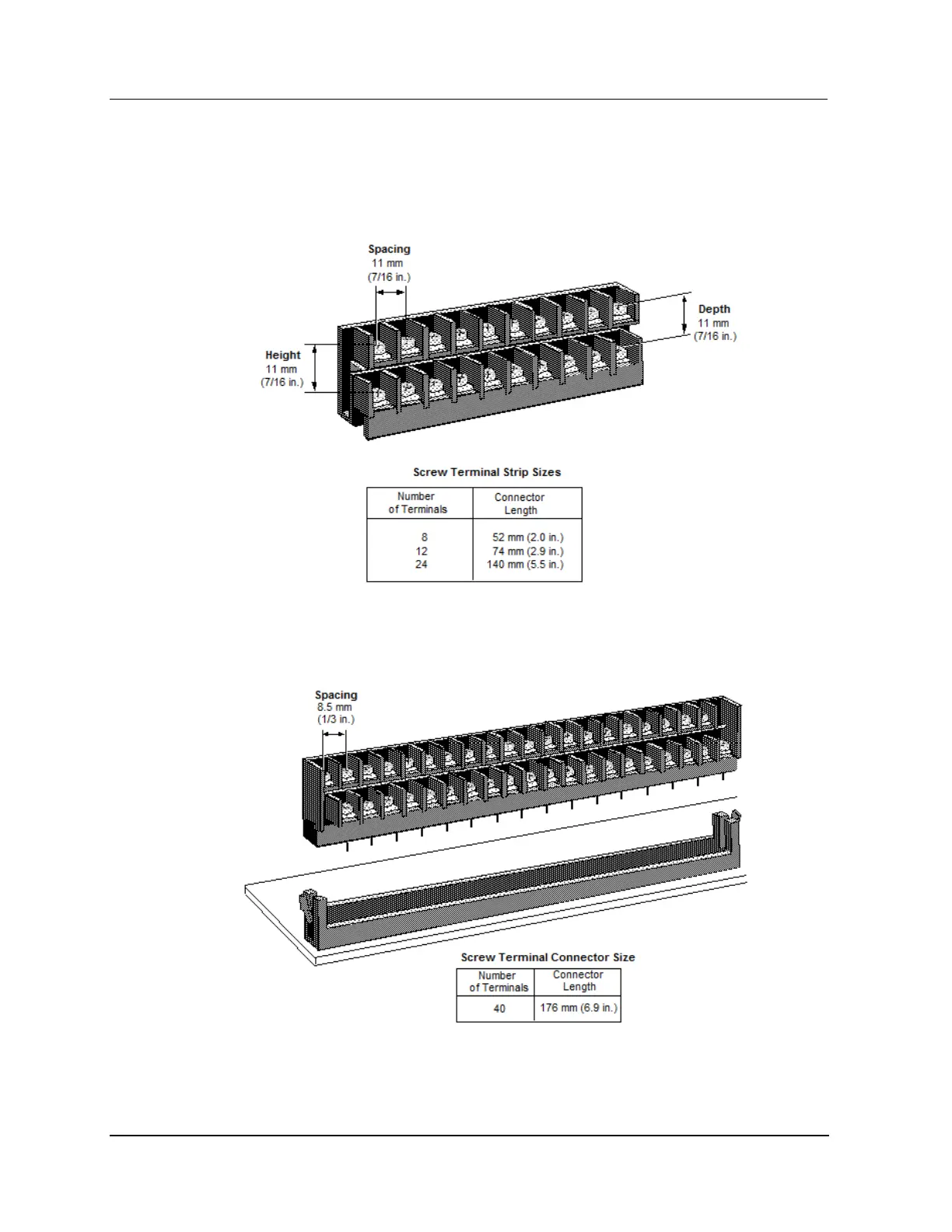

Figure 20 Typical FTA Fixed Screw Terminal Connector
FTA removable screw-type connector
The following figure illustrates a typical removable screw-type terminal connector.
Figure 21 Typical FTA Removable Screw Terminal Connector
