Honeywell HPM User Manual

3 UCN Status Displays
3.5 HPM Status Displays
226 HPM High-Performance Process Manager Service R688
Honeywell December 2020
REGULATORY CONTROL POINTS target
An example of this is the Process Module Points display as shown in the following figure. Selecting the
REGULATORY CONTROL POINTS target on the Slot Summary Menu display invokes the display.
The Slot Summary display provides access to commands that active/deactivates slots.

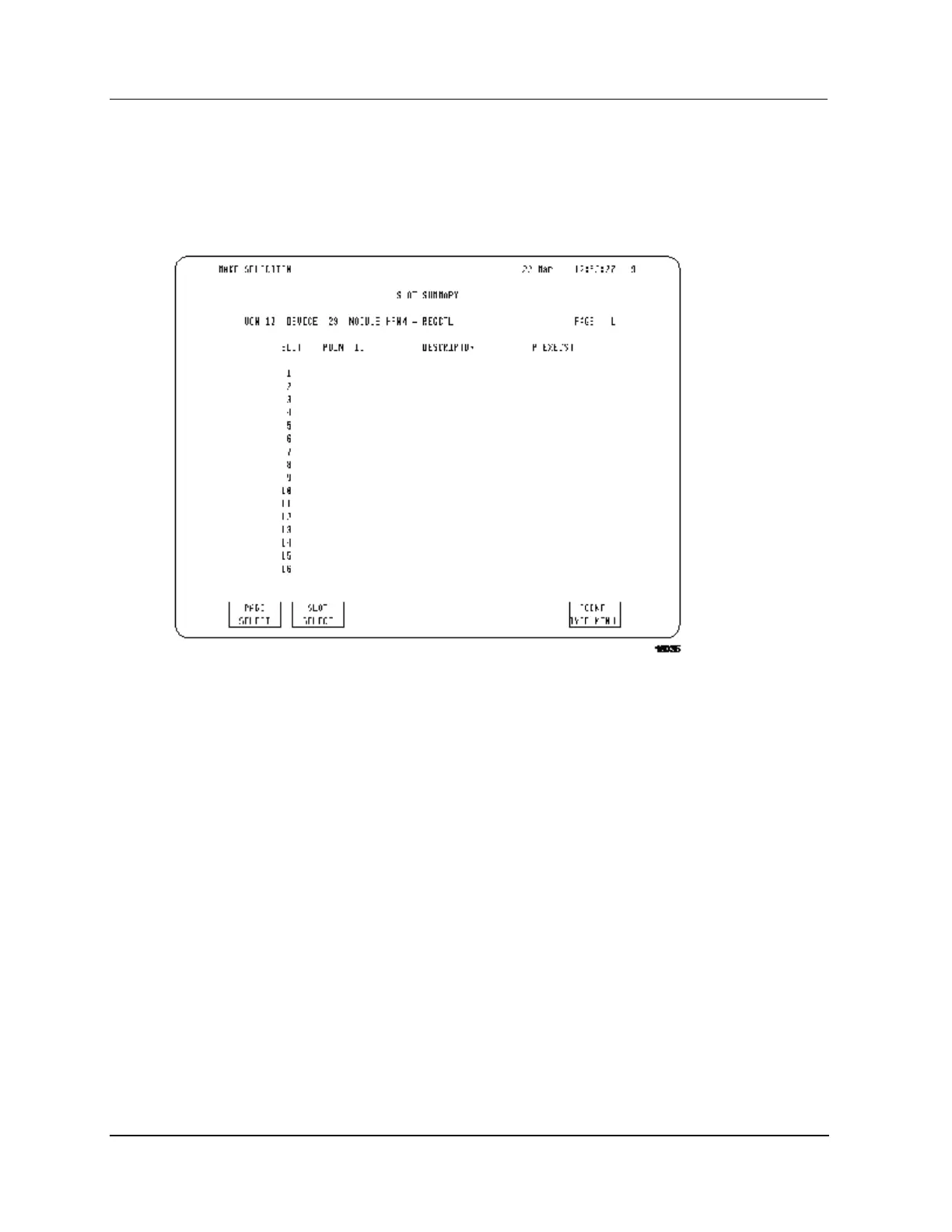

Figure 116 HPM Status Display – REGULATORY CONTROL POINTS Target Selected
Process Module Points display targets
Three targets are available on the Process Module Points display.
 Selecting the PAGE SELECT target produces a ENTER PAGE NUMBER response. Enter the
page number of interest.
 Selecting the SLOT SELECT target produces a ENTER SLOT NUMBER response. Enter the
slot number of interest.
 The POINT TYPE MENU target returns you to the Slot Summary Menu display.
DETAIL STATUS target
Selection of the DETAIL STATUS command target on the HPM Status display invokes the Detail
Status display of the chosen HPMM or IOP as shown in Figure 120, Figure 121, or Figure 143.
