HP StorageWorks 6400/8400 - Enterprise Virtual Array - 3-Site Configuration with Four MPX200 Routers; 3-Site Configuration with Six MPX200 Routers; HP Continuous Access EVA 3 Site Configuration with Four MPX200 Routers

3-site configuration with four MPX200 routers
The configuration shown in Figure 79 provides long-distance link redundancy between all three sites.

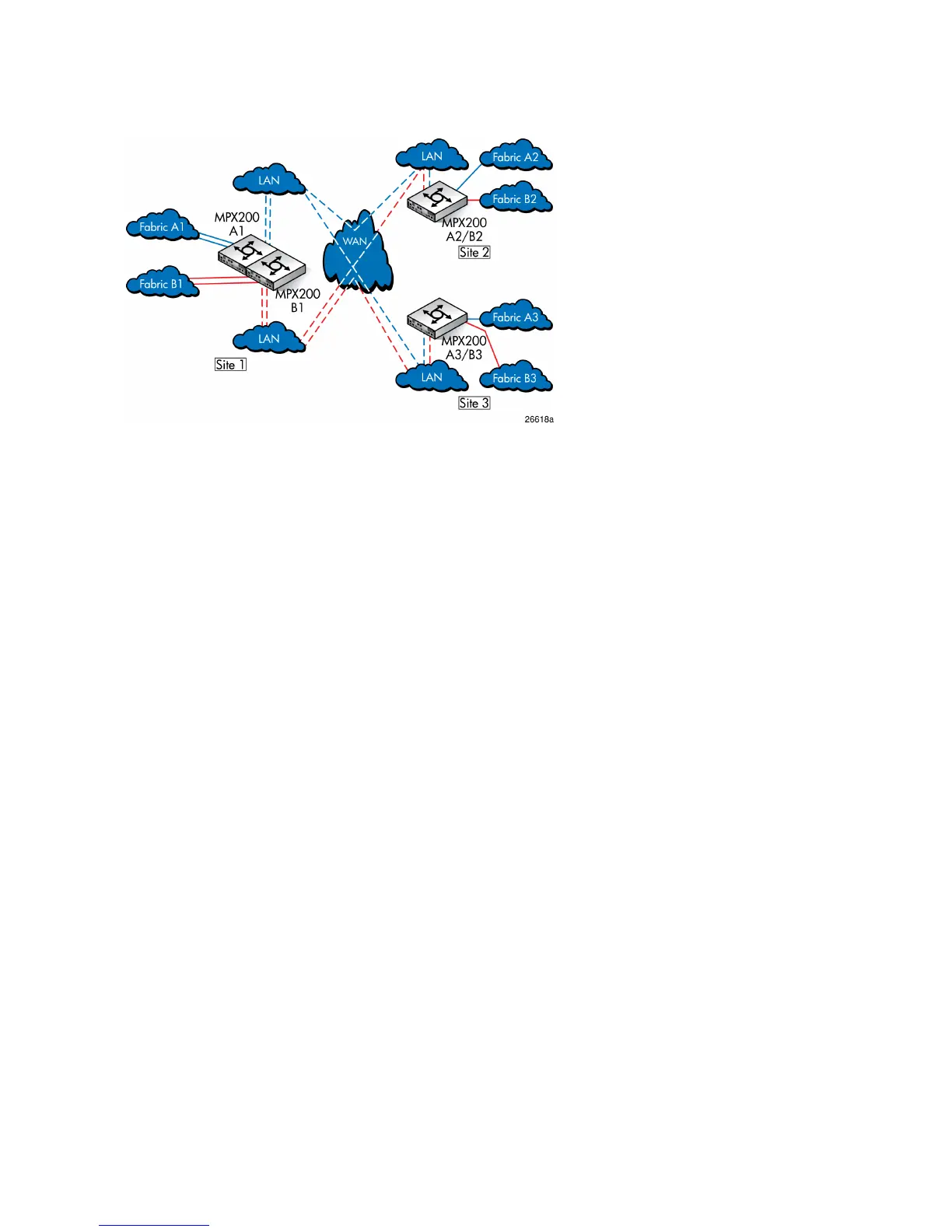

Figure 79 HP Continuous Access EVA 3–site configuration with four MPX200 routers
.
3-site configuration with six MPX200 routers
The configuration shown in Figure 80 provides the same long-distance link redundancy as the
configuration shown in Figure 79, with the addition of redundant MPX200 routers at sites 2 and 3.
MPX200 FCIP122
