6. To verify that the LUNs are presented to the VMware host, rescan for new iSCSI LUNs:
a. In VMware’s VI client, select a server and click the Configuration tab.
b. Choose Storage Adapters in the hardware panel and click Rescan above the Storage Adapters
panel.
The Rescan dialog box is displayed. See Figure 55 on page 82.
c. Select the Scan for New Storage Devices and the Scan for New VMFS Volumes check boxes.
d. Click OK.
The LUNs are now available for ESX server.

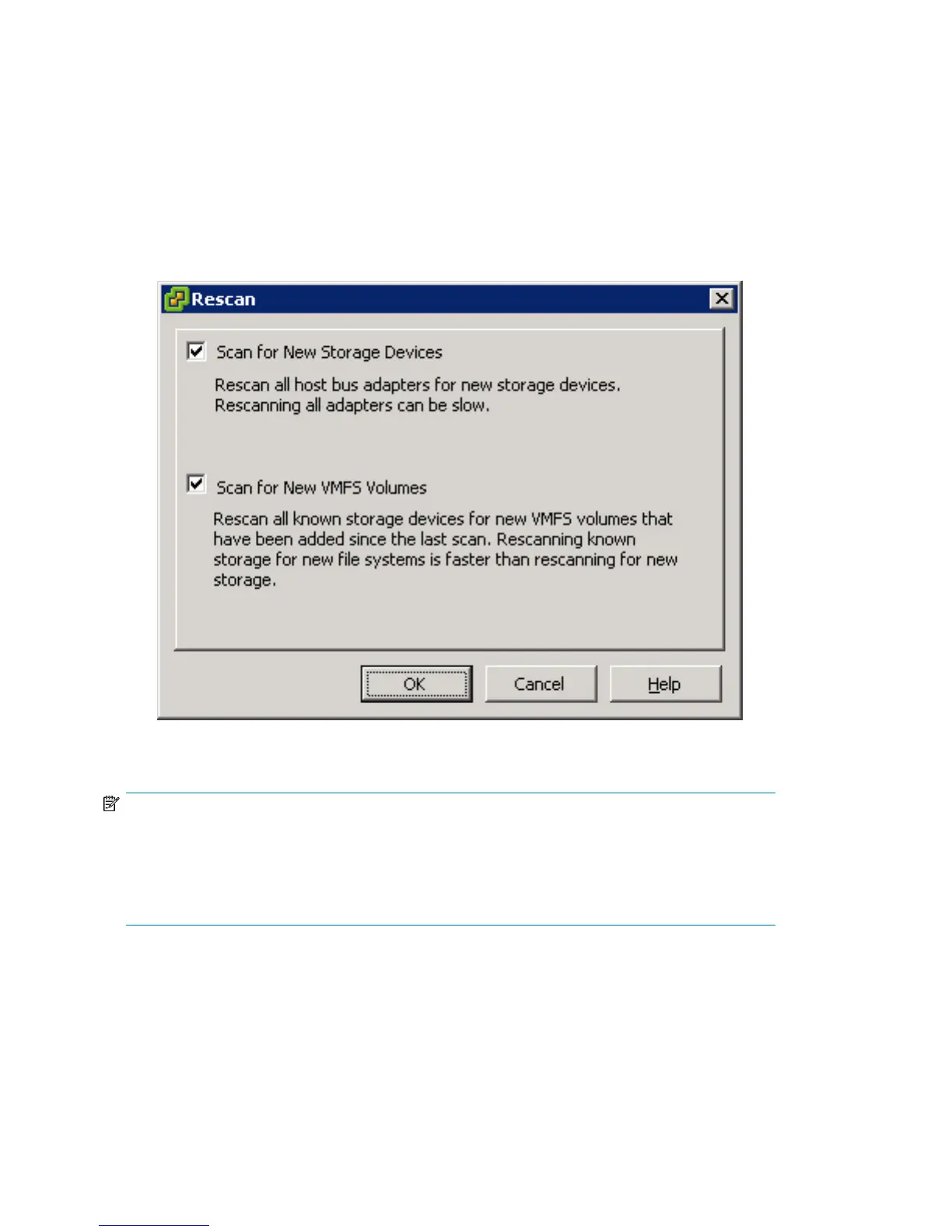

Figure 55 Rescan dialog box
.
NOTE:
When presenting iSCSI storage to Virtual Machines you must do the following:
• Create Virtual Machines using LSI Logic emulation.
• Present iSCSI storage to a Virtual Machine either as a data store created on an iSCSI device, or
raw device mapping.
Configuring multipath with the Solaris 10 iSCSI initiator
This section explains how to configure multipath with the Solaris 10 iSCSI initiator to the MPX200.
MPX200 iSCSI configuration rules and guidelines82
