HP StorageWorks 6400/8400 - Enterprise Virtual Array User Manual

4. Enable the iSCSI software initiators:
a. In the VMware VI client, select the server from the inventory panel.
b. Click the Configuration tab, and then click Storage Adapters under Hardware.
c. Under iSCSI Software Adapter, choose the available software initiator.
d. Click the Properties link of the software adapter.
The iSCSI Initiator Properties dialog box is displayed.
e. Click Configure.
The General Properties dialog box is displayed. See Figure 53 on page 80.
f. Select the Enabled check box.
g. Click OK.

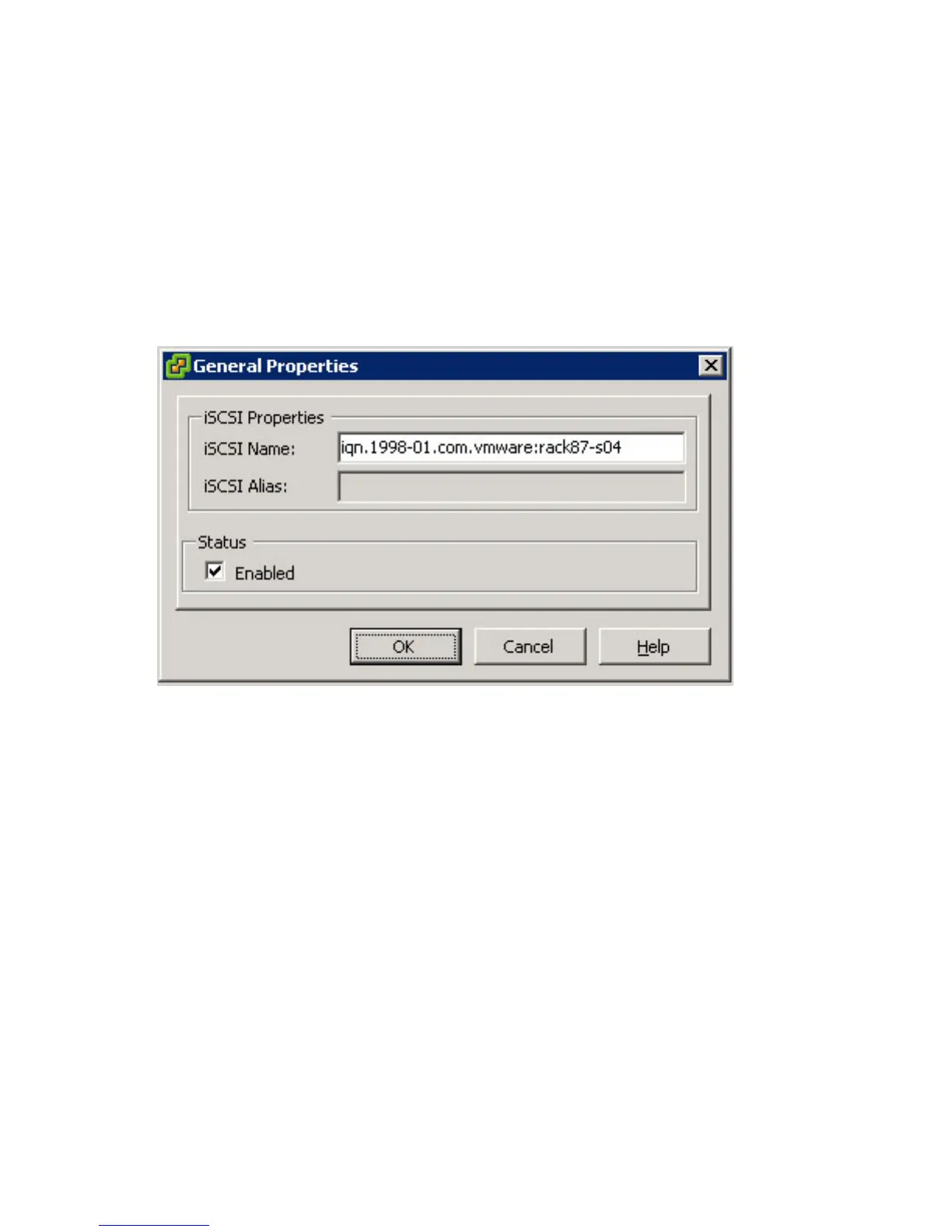

Figure 53 General Properties dialog box
.
MPX200 iSCSI configuration rules and guidelines80
