Connecting Cables to the Exit Button

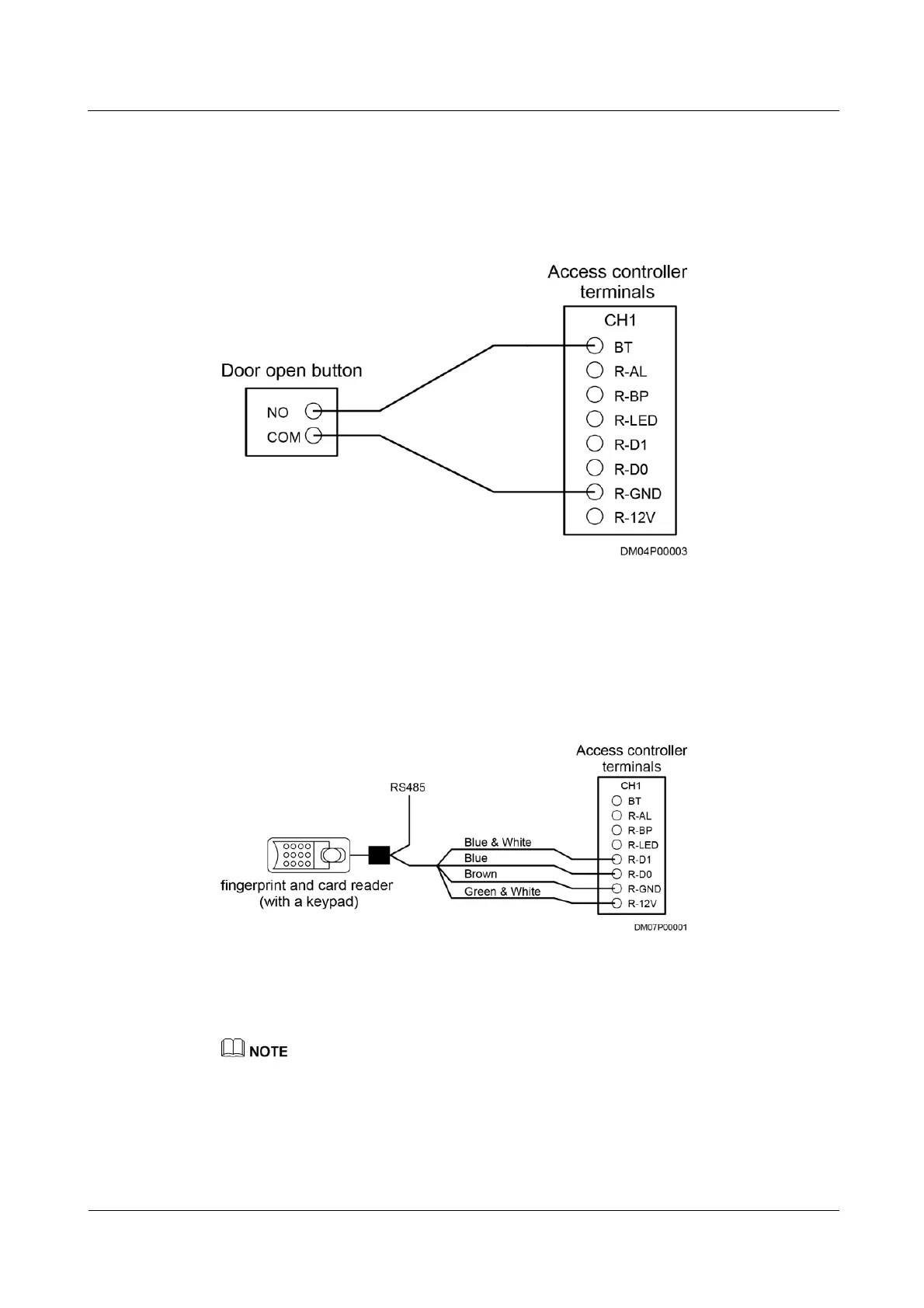

Figure 4-33 shows the cable connections to the access controller and exit button, using the
cord end terminal to crimp the cable.
Figure 4-33 Connecting cables to the exit button
Connecting Cables to the Fingerprint and Card Reader with a Keypad
The following figure shows the cable connections to the access controller and fingerprint and
card reader with a keypad, using the cord end terminal to crimp the cable.
Figure 4-34 Connecting cables to the fingerprint and card reader with a keypad
Connect one end of the network cable to the female connector of the fingerprint and card
reader with a keypad. Strip the other end of the network cable and connect it to the
access controller terminal, as shown in the preceding figure.
If the network is non-standard, connect it by referring to the cable sequence in the following table.
