Huawei iManager NetEco 6000 User Manual

iManager NetEco 6000
Device Installation and Commissioning Guide
4 Connecting Monitoring Cables to Devices
Issue 03 (2019-03-10)
Copyright © Huawei Technologies Co., Ltd.
107
Dial
Switch
Default Value
Operations
7
OFF

Not in teamwork mode: Remaining in OFF

In teamwork mode: Set toggle switch 7 on the main
control boards of the first and last smart cooling
products to ON, and toggle switch 7 on the main
control boards of the other smart cooling products to
OFF.
8
ON
Remaining in ON
Step 2 Connect the other end of the network cable to the COM port on the ECC collector.
----End
4.3.6.2 Connecting the NetCol8000 Monitoring Cable
Prerequisites
A network cable used for monitoring is prepared.
Context

When NetCol8000-A050, NetCol8000-A100, NetCol8000-C070, NetCol8000-C150
connect to the NetEco over MODBUS-RTU, connect cables by referring to this section.

The following figure shows the pin sequence of the network cable.

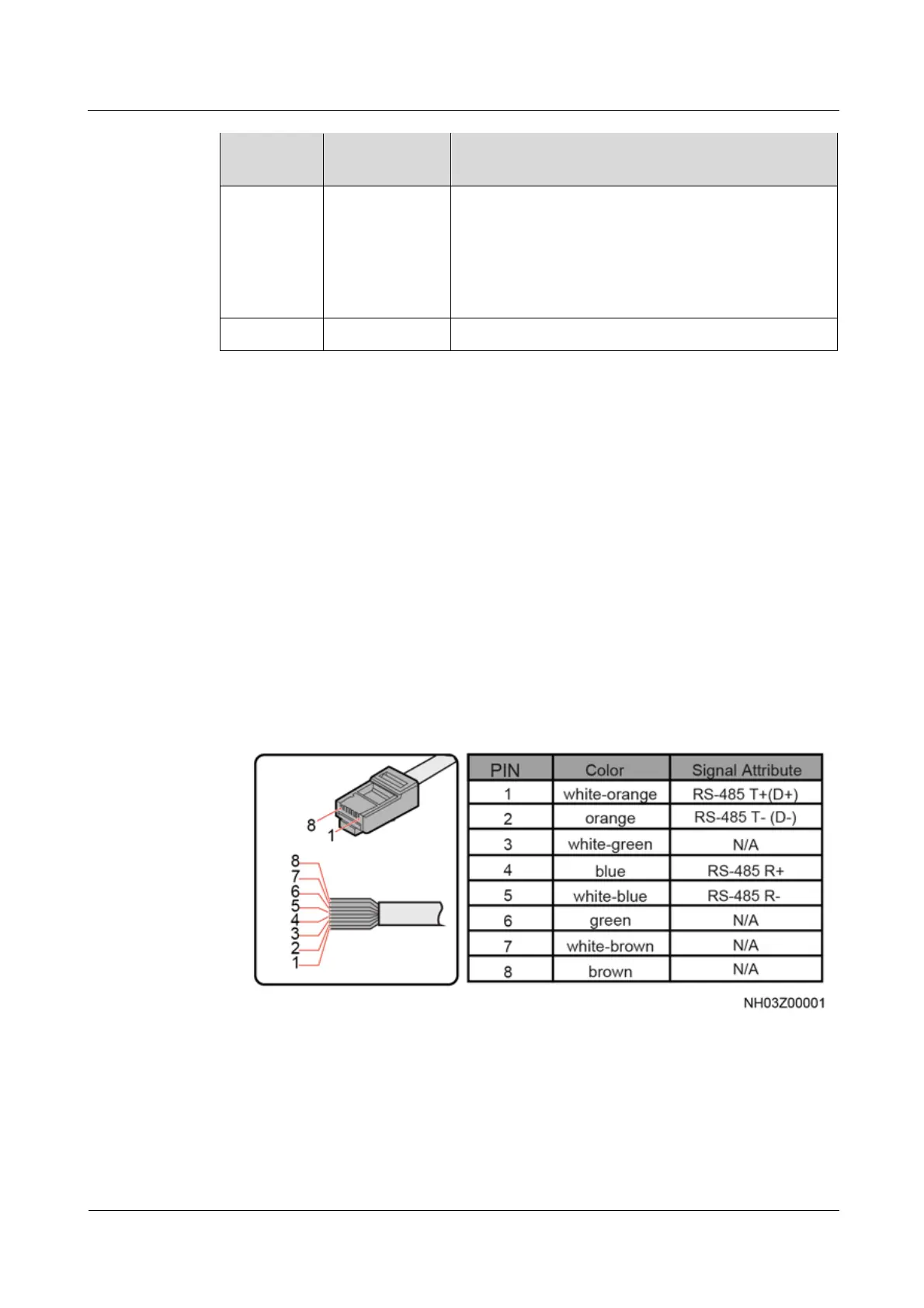

Figure 4-48 Pin sequence of a network cable
Procedure
Step 1 Open the NetCol8000 front door to expose the main control board inside the electric control
box.
