iManager NetEco 6000
Device Installation and Commissioning Guide
4 Connecting Monitoring Cables to Devices
Copyright © Huawei Technologies Co., Ltd.
4.2 Scenarios for Connecting the LAN Switch
4.2.1 S5320-28X-PWR-SI Switch Port
Figure 4-5 and Table 4-5 show the switch ports.

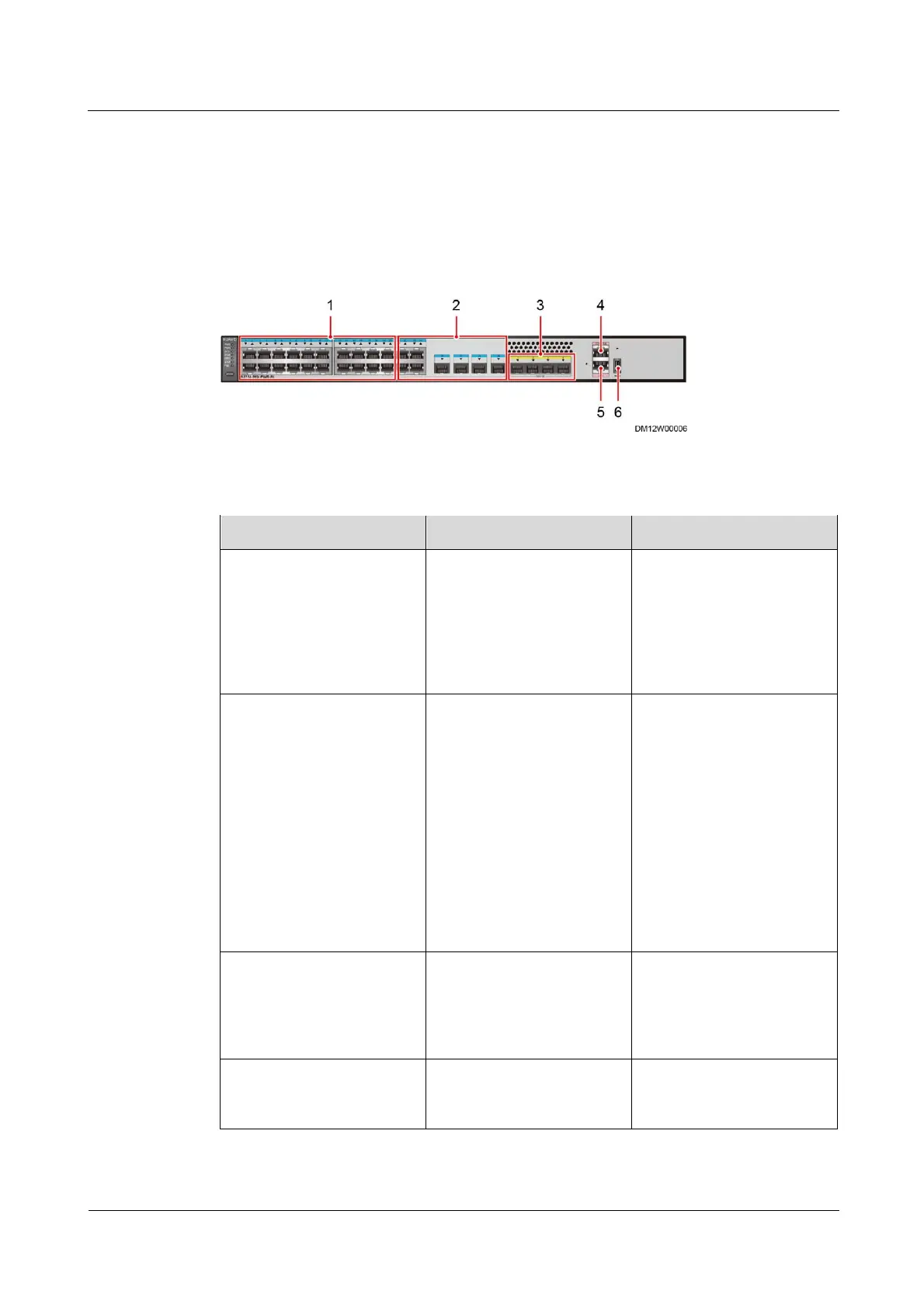

Figure 4-5 Switch port description
Table 4-5 Switch port description
An Ethernet electrical port
sends and receives service
data at 10/100/1000 Mbit/s
for connecting devices that
support IP communications,
such as servers, collectors,
and cameras.
A combo port refers to a
pair of ports consisting of an
optical Ethernet port and an
electrical Ethernet port on
the panel. Each combo port
matches only one internal
forwarding port. A combo
port can be configured as an
electrical port or an optical
port, but only one port can
be active at a time. When
one port is active, the other
port is shut down.
An Ethernet optical port
supports auto-sensing to
1000 Mbit/s. It sends and
receives service data at 1000
Mbit/s or 10 Gbit/s.
The console port is
connected to a console for
on-site configuration.
