3.8.2 Installing an In-Room Double-Door Magnetic Lock
Context
The magnetic lock supports a double-door that can be rotated open outwards. The door
frame should be over 42 mm thick. A glass door is not supported.
The cable routes are planned.
Procedure
Step 1 Fold the delivered cutout template along the dotted line by 90°, as shown by (2) in Figure
3-45.
Step 2 Close the door, place the cutout template at the midline of the door frame in the door opening
direction, mark the mounting holes, and drill holes, as shown in Figure 3-45.

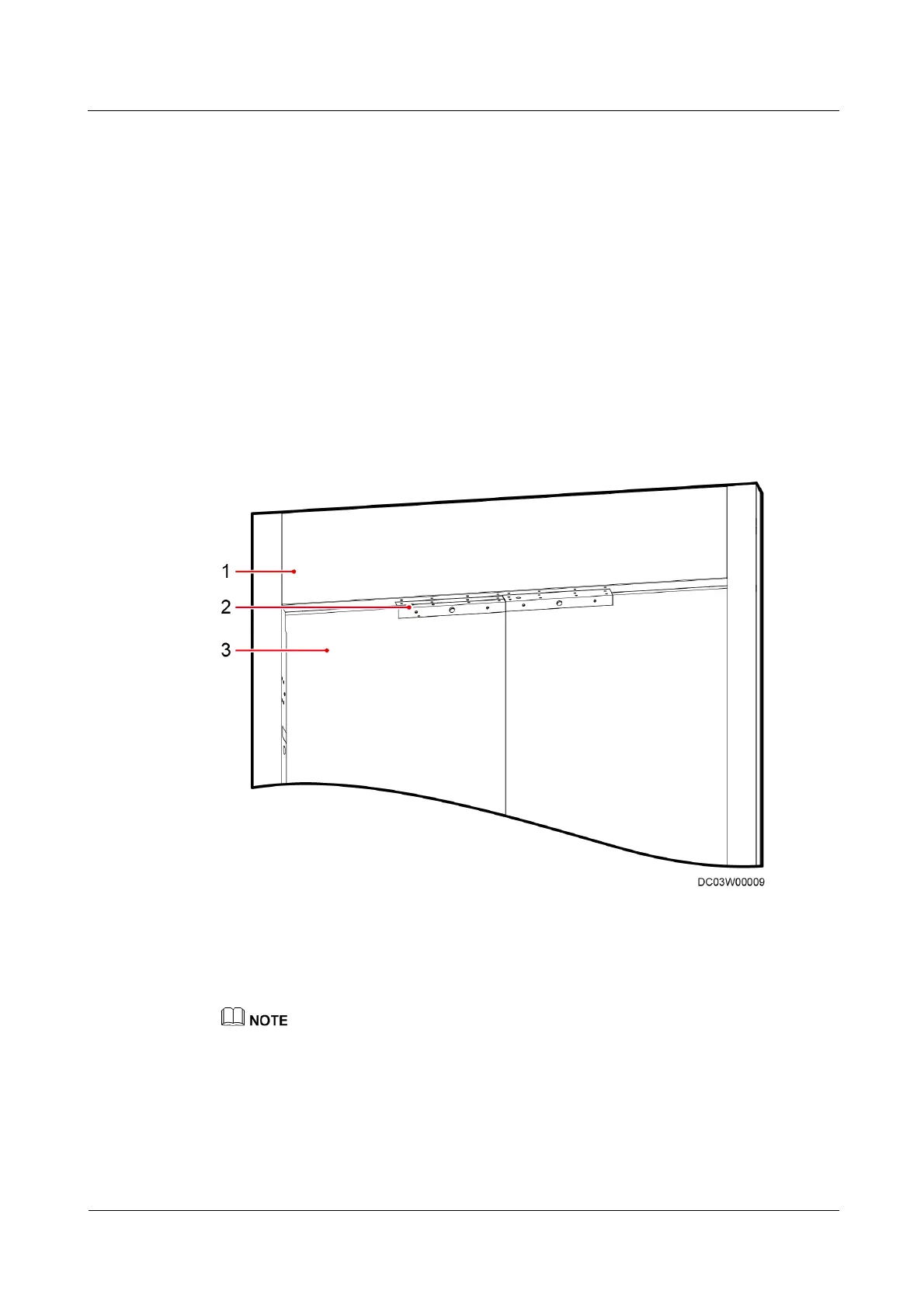

Figure 3-45 Marking mounting holes
Step 3 Remove the hoisting strip using the delivered hex key.
Four hex socket screws need to be removed in this step.
To Next Page
