Huawei iManager NetEco 6000 User Manual

iManager NetEco 6000
Device Installation and Commissioning Guide
6 Adding Devices
Issue 03 (2019-03-10)
Copyright © Huawei Technologies Co., Ltd.
214

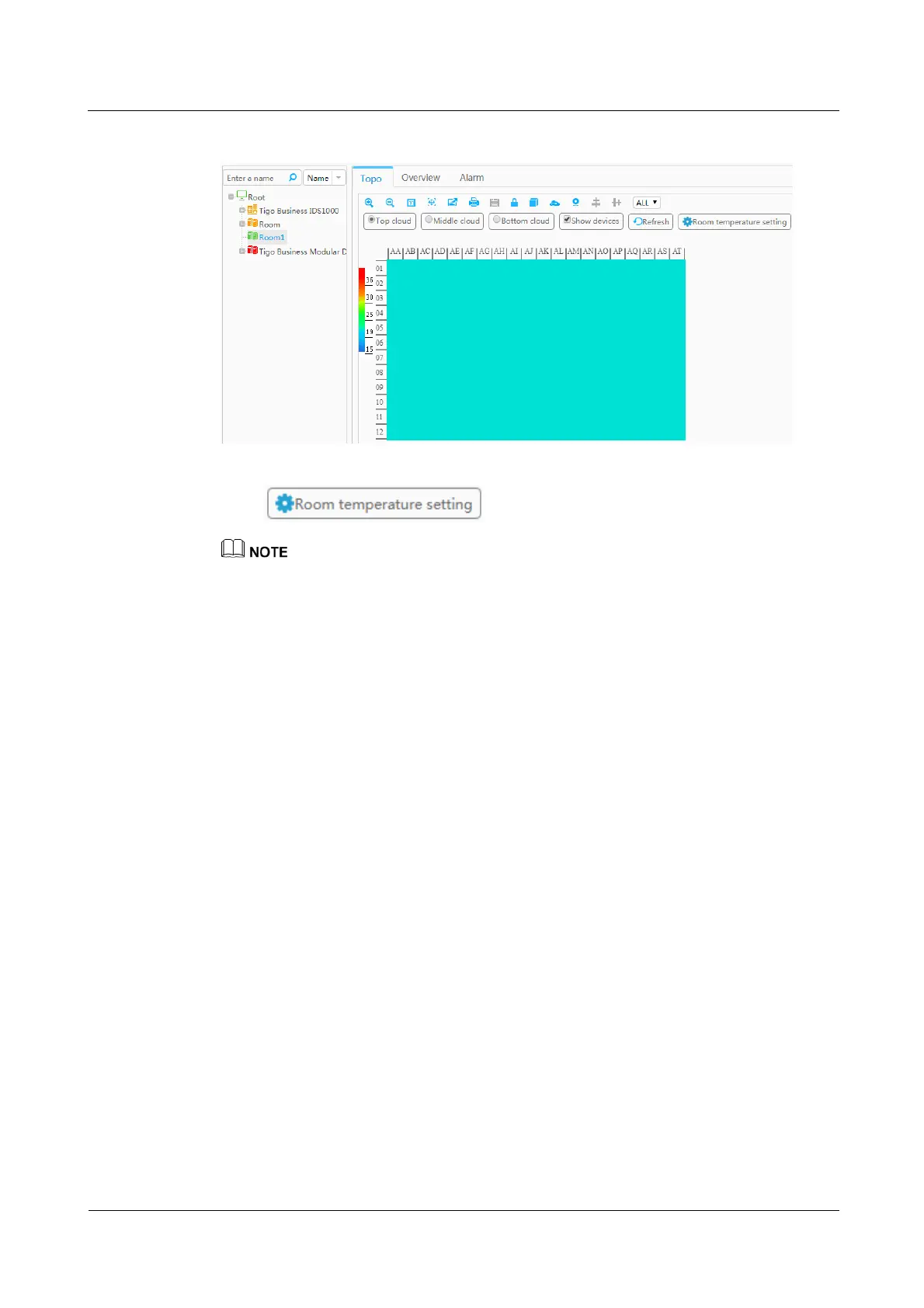

Figure 6-72 Viewing a temperature map
Step 3 Click to set the room temperature.
If a temperature sensor has been added to a management domain but the temperature is not set, the
average value of the temperatures collected by the sensor is displayed.
----End
6.4.2.3 Adding an Ambient Temperature and Humidity Sensor
6.4.2.3.1 Setting Monitoring Parameters for an Ambient Temperature and Humidity
Sensor
Prerequisites

The device address planned for the ambient temperature and humidity sensor is obtained.

The ambient temperature and humidity sensor connects to the collector and displays
values on the display panel.

The IP address, user name, and password for logging in to the collector are obtained.

A PC with an IP address in the same network segment as the collector is prepared, and
the PC connects to the collector over a switch.
Context
Before connecting the ambient temperature and humidity sensor to the NetEco, set monitoring
parameters, such as the device address and baud rate, on the sensor, and then modify the port
parameters for the collector connecting to the sensor to ensure that the values of BaudRate,
DataBit, StopBit, and Parity on the sensor are consistent with those for the collector port.
Procedure
Step 1 Hold down Set on the display panel of the ambient temperature and humidity sensor for 2
seconds.
