No.
Interface
Type
Description
4
eth2 GE
interface
not adopted, only eth0 or eth1 is required.

If southbound and northbound network isolation is
adopted, both eth0 (or eth1) and eth2 (eth3) are
required.
eth0 (or eth1) is used for providing southbound
services while eth2 (or eth3) is used for providing
northbound services.
5
eth3 GE
interface
3
VGA interface
Used for connecting to the monitor or KVM.
6
iBMC
management
network
interface
Used for connecting to the PC to manage the 2288H
V5 server.
7
Server serial
interface
Used for connecting to the SMS modem or
commissioning.
8
USB interface
Used for connecting to the mobile storage device.
4.1.2 Installing the SMS Modem
Prerequisites
An idle serial port is available on the server.
Context

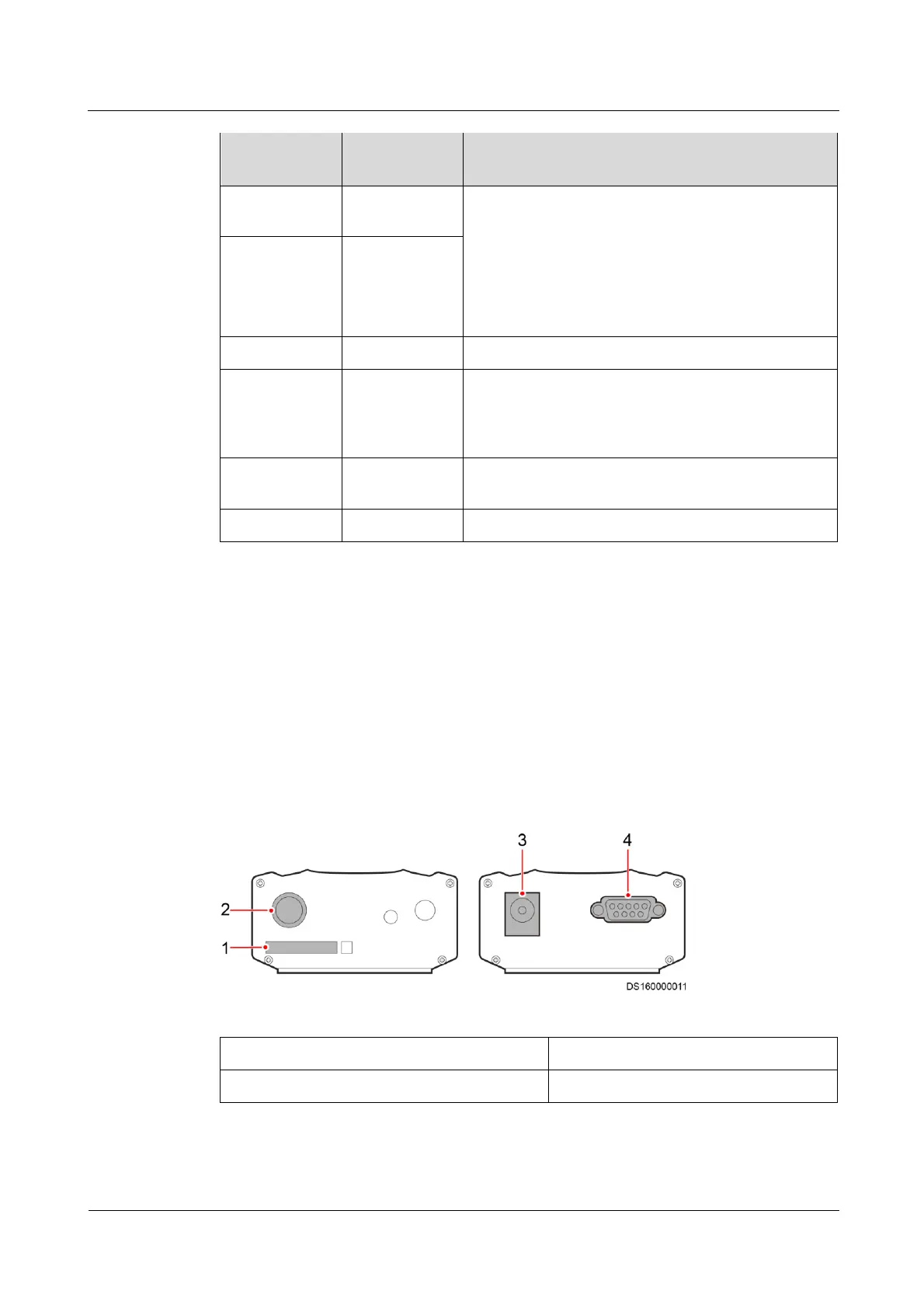

Figure 4-4 shows the ports on the SMS modem.
Figure 4-4 Ports on the SMS modem
(1) Connecting to the SIM card
(2) Connecting to the antenna
(3) Connecting to the power cable
(4) Serial port

Huawei iManager NetEco 6000 Specifications

General

Brand	Huawei
Model	iManager NetEco 6000
Category	Server
Language	English
