6.4.2.2.2 Setting Device IP Addresses of Temperature Sensors
Prerequisites
You have connected a temperature sensor to the AI/DI port on an independent deployment
AI/DI unit of an ECC500 V6 collector.
Context

This section applies to an ECC500 V6 collector. If the temperature sensor is connected to
an ECC800 collector, skip operations in this section.

The device IP address of the independent deployment AI/DI unit connected to a
temperature sensor is the device IP address of the temperature sensor. You need to set
such an IP address to 1 or 2 by following the instructions provided in this section.
Procedure
Step 1 Use the DIP switch on the independent deployment AI/DI unit of an ECC500 V6 collector to
set the device IP address to 1 or 2. Figure 6-70 shows the DIP switch, and Table 6-28
describes the setting method.

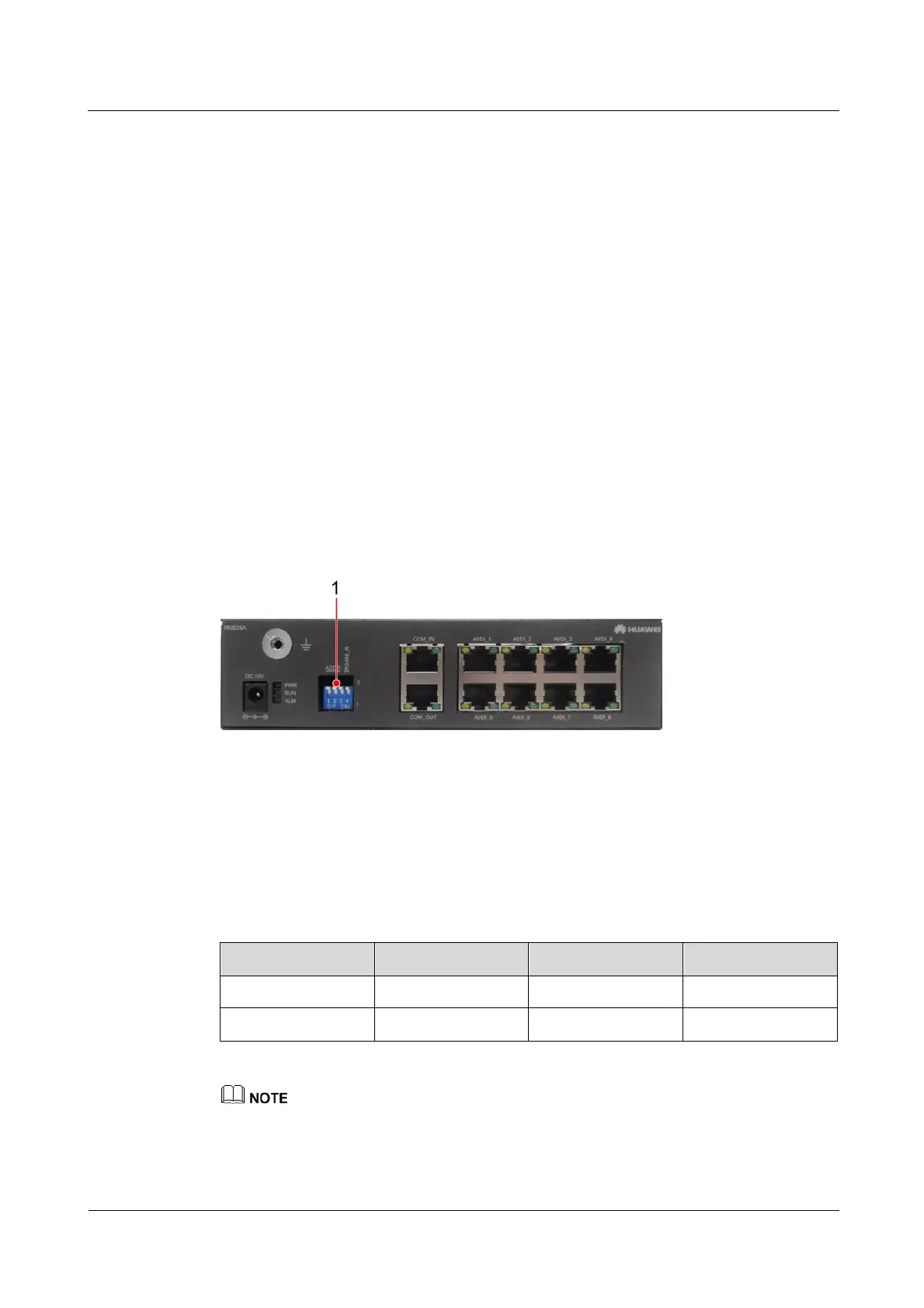

Figure 6-70 DIP switch of an independent deployment AI/DI unit
(1) DIP switch on an independent deployment AI/DI unit of an ECC500 V6 collector
The DIP bits are bit 1, bit 2, bit 3, and bit 4 from the left to the right. Toggle switches 1–3
specify the address of the independent deployment AI/DI unit. Toggle switch 4 specifies the
address of the RS485 build-out resistor. Turning a bit to 0 indicates that the bit is in the OFF
status and turning a bit to 1 indicates that the bit is in the ON status.
Table 6-28 Setting device IP addresses through a DIP switch
IP Address
DIP Bit 1
DIP Bit 2
DIP Bit 3
1
OFF
ON
ON
2
ON
OFF
ON

The device address for the independent deployment AI/DI unit can only be set to 1 or 2.

Record the preset device IP addresses because you need to type the information in the NetEco
system when adding a temperature sensor to the NetEco.
