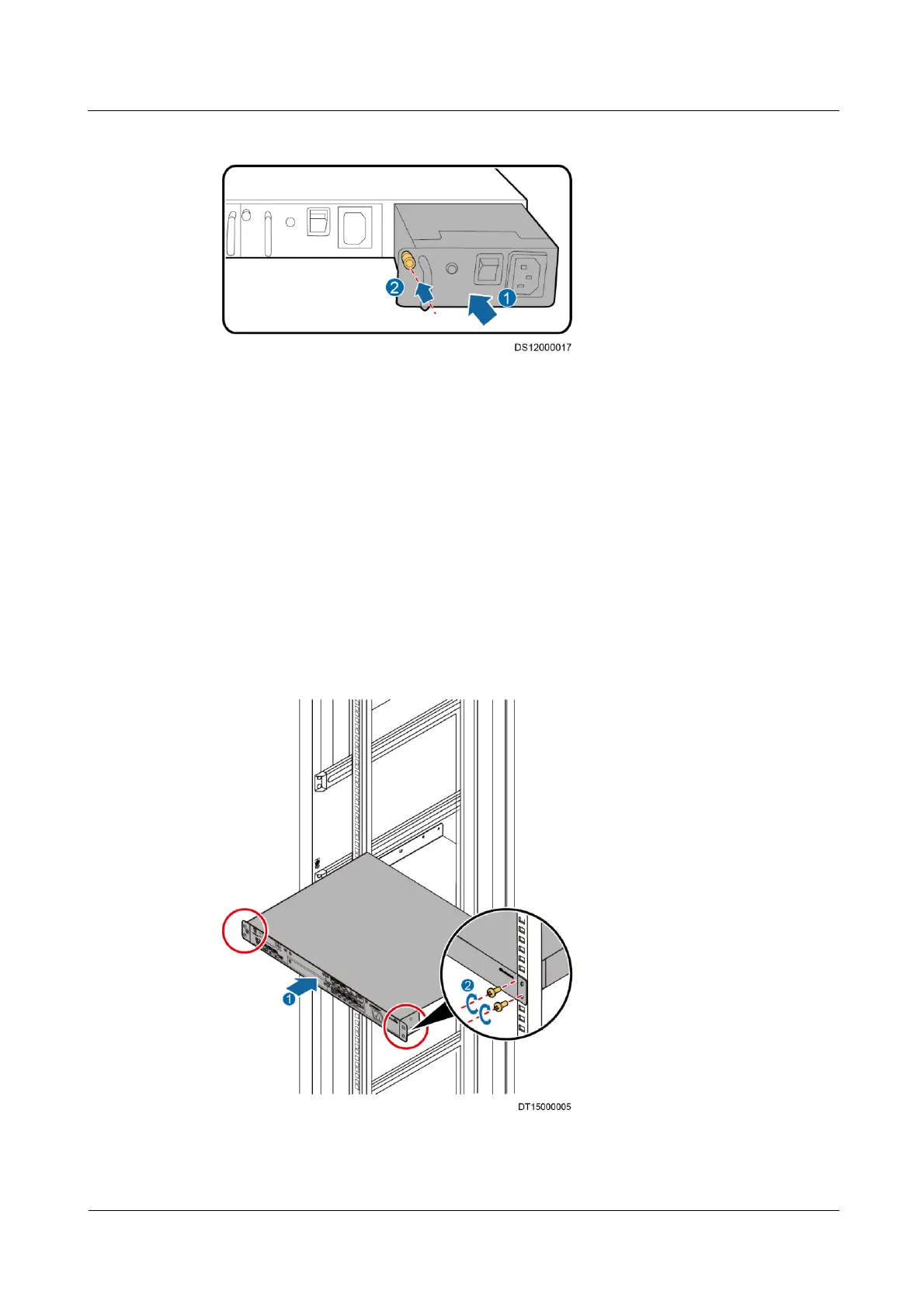

Figure 3-7 Installing the power modules for a 24-port LAN switch
3.4 Installing an ECC500/ECC800 Collector
Procedure
Step 1 Determine the mounting holes for the ECC collector in the network cabinet based on the
engineering layout diagram, adjust the guide rails or trays, and install floating nuts.
Step 2 Gently put the ECC collector into the network cabinet.
Step 3 Secure the ECC collector in the network cabinet by clockwise tightening the M6 screws on
the left and right mounting ears.
Figure 3-8 Installing an ECC collector
Step 4 Connect the ECC collector power cable to the PDU2000.
