3.6.7 Installing the Location-type Water Sensor
Context

The location-type water sensor is installed on a 35 mm DIN guide rail and can be
installed on the wall around the detected area.

Install water detection cables surrounding the water leakage area.

To avoid damaging the water sensor, do not unpack it until right before installation.
Procedure
Step 1 Fix a proper length of DIN guide rail to the wall around the detected area.
Step 2 Unpack the location-type water sensor, buckle the module to the DIN guide rail, and ensure
that the latch faces upwards during installation.

The water leakage locator should be installed within 1200 meters of the control host.

The installation height must not exceed 1.5 m. Ensure that the water detection rope is no higher than
the ground.

Hand-write the address in the address blank area.

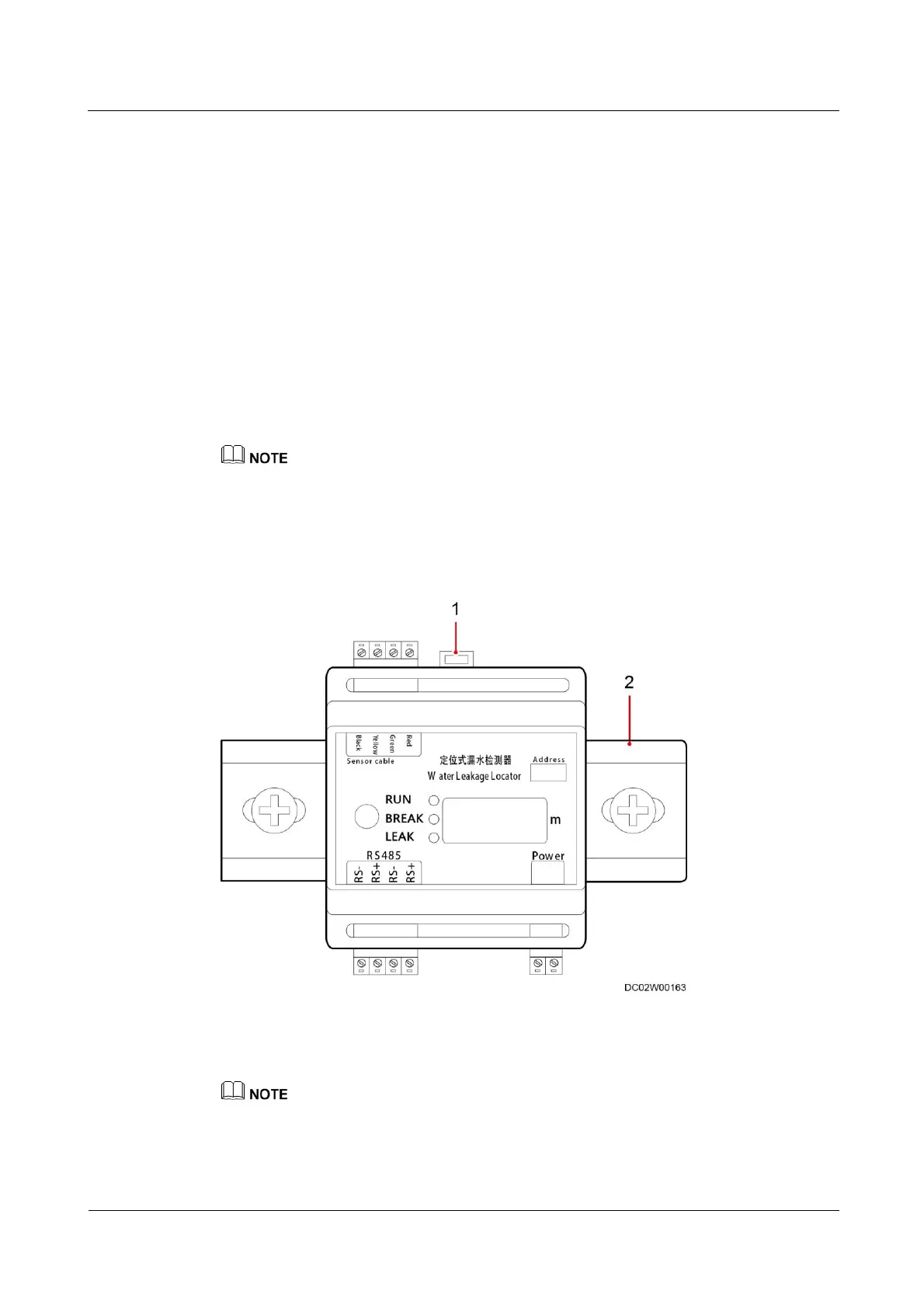

Figure 3-26 Installation diagram
(1) Latch
(2) DIN guide track

Touch grounded devices or pipes to eliminate ESD before taking the location-type water sensor
module.

Place it gently. Protect it against mechanical impact and collision. Keep it dry.
