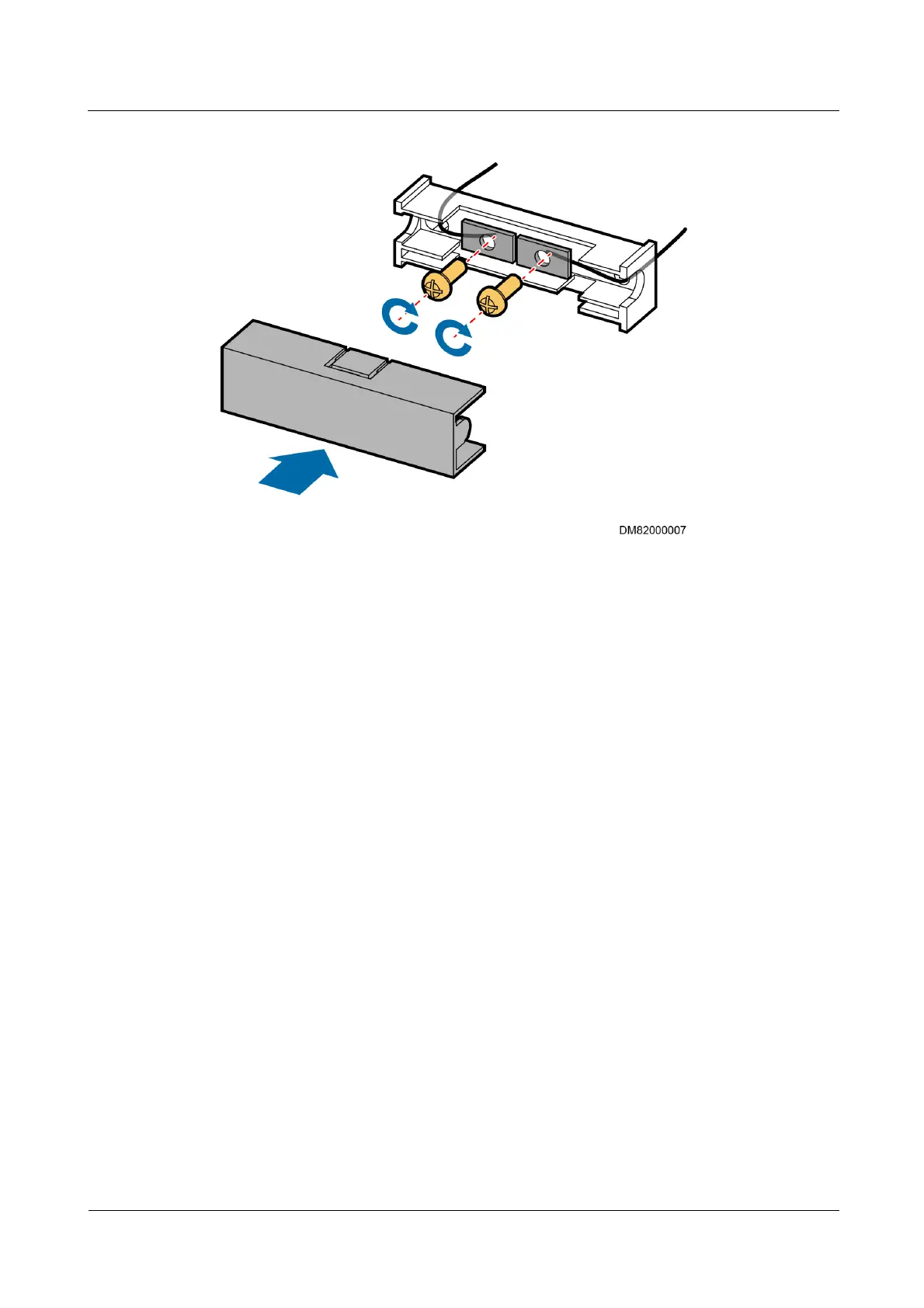

Figure 4-40 Connecting a monitoring cable to the door status sensor
Step 2 Prepare an RJ45 connector on one end of the network cable by following to the instruction in
4.3.1 Preparing a Monitoring Cable.
Step 3 Connect the green core wire 6 and the brown-white core wire 7 to the cables routed out from
the door status sensor.
Step 4 Connect one end of the RJ45 network cable to the AI/DI port on the ECC collector.
----End
4.3.6 Connecting the Smart Cooling Product Monitoring Cable
4.3.6.1 Connecting the NetCol5000 Monitoring Cable
Prerequisites
A network cable used for monitoring is prepared.
Context
When NetCol5000C-65kW&80kW, NetCol5000-A042/A035/A025/A020/C030 connect to
the NetEco over Modbus-RTU, connect cables by referring to this section.
Procedure
Step 1 Connect one end of the network cable to the communications port on the NetCol5000 side
panel.
The COM port of NetCol5000C-65kW&80kW is on the main control panel at the smart
cooling product rear doors.
