3.8.6 Installing a Card Reader with a Keypad
Context
It is recommended that the product be installed 30–300 mm close to the equipment room
door and 1.4–1.6 m above the floor.
Do not install the product in a place with heavy dust or exposed to sunlight.
Procedure
Step 1 Remove the screws (set aside) from the card reader with a keypad and remove the baseplate,
as shown by (1) in Figure 3-61.
Step 2 Mark the mounting holes using a marker, and drill holes using a hammer drill.

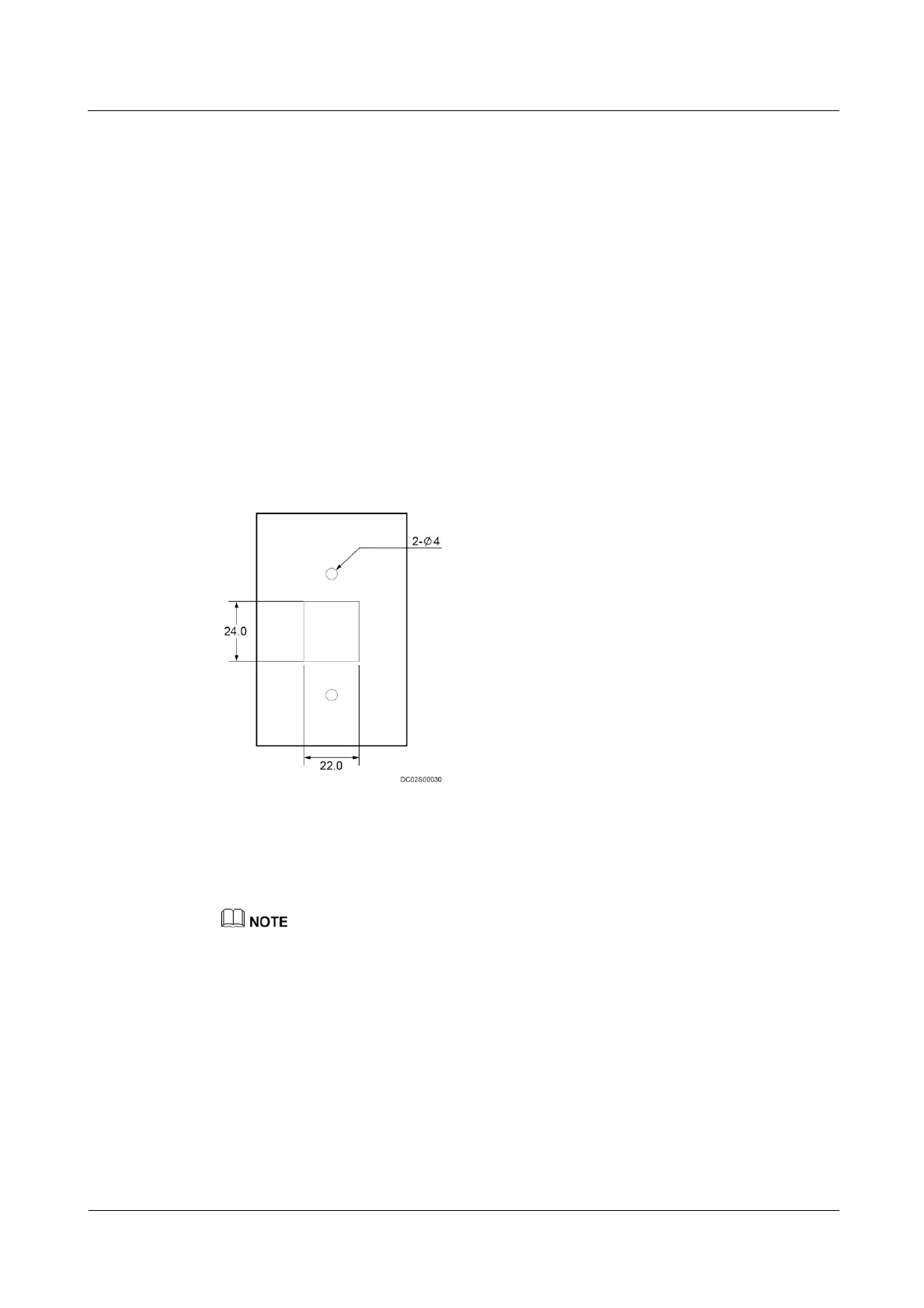

Figure 3-60 Marking mounting holes (unit: mm)
Step 3 Install the baseplate, as shown by (3) in Figure 3-61.
Step 4 Route the cable of the card reader with a keypad through the cable hole in the baseplate, as
shown by (4) in Figure 3-61.
The card reader with a keypad is connected to the access actuator by a network cable.
Step 5 Check that cables are correctly connected.
Step 6 Secure the card reader with a keypad to the baseplate, as shown by (5) and (6) in Figure 3-61.
