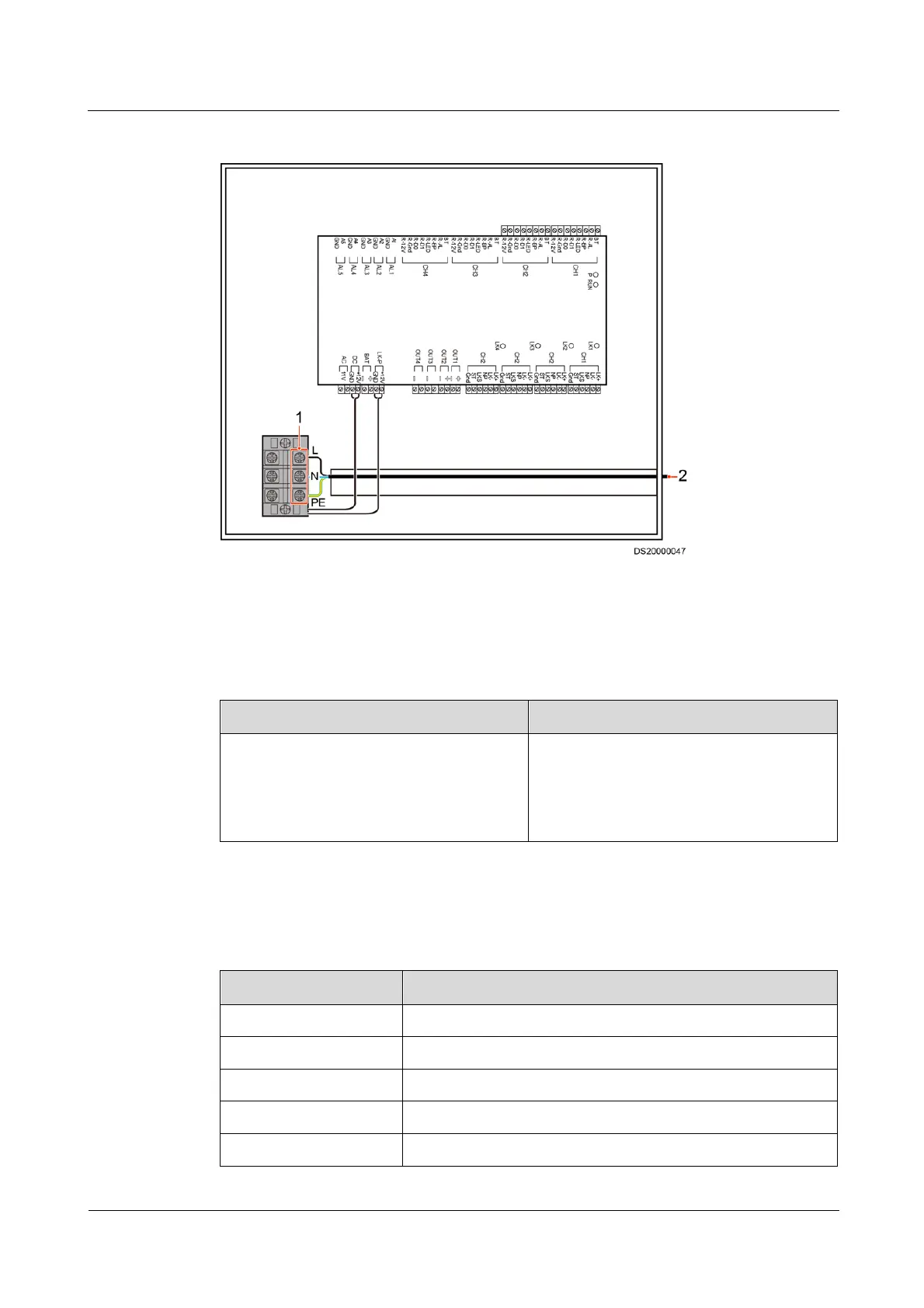

Figure 4-39 Connecting cables to the access controller
(1) Connecting the power cable for the
access controller
(2) Connecting to the power supply, as
described in Table 4-14
Table 4-14 Power cable connection for the access controller
Power Supply
Cable Connection
Power supply outside the equipment room
Install the connector (BOM number:
14170096) to the other end of the power
cable and connect the power cable to a
circuit breaker in the power supply outside
the equipment room.
Related Information
Table 4-15 Card reader and key terminal definition
Terminal Identity
Definition
BT
Key input
R-AL
Card reader pry signal input
R-BP
Control card reader buzzer
R-LED
Control card reader LED lights
R-D1
Card reader data 1

Huawei iManager NetEco 6000 Specifications

General

Brand	Huawei
Model	iManager NetEco 6000
Category	Server
Language	English
