iManager NetEco 6000
Device Installation and Commissioning Guide
4 Connecting Monitoring Cables to Devices
Copyright © Huawei Technologies Co., Ltd.

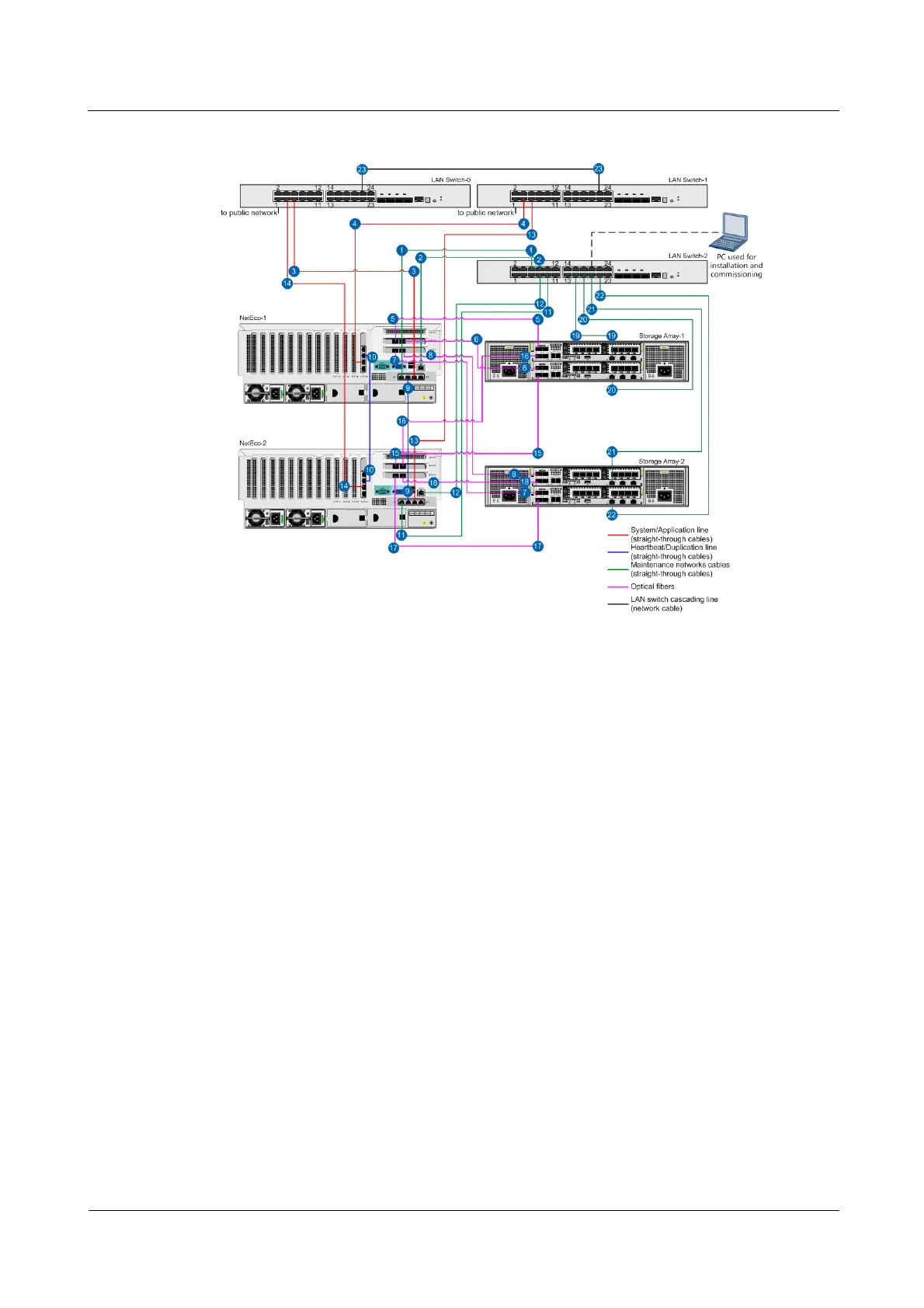

Figure 4-13 Signal cable connection with southbound and northbound network isolation
4.2.3 Connecting the Video Management System Cable
4.2.3.1 Connecting a Monitoring Cable to a VCN500
Prerequisites
A network cable used for monitoring is prepared.
Context
The VCN500 has two types of power modules. This section describes the VCN500 ports
using one type of the power module as an example. If the other type of power module is used
onsite, the actual scenario prevails.
Procedure
Step 1 Connect one end of the network cable to the GE1 port on the VCN500.
